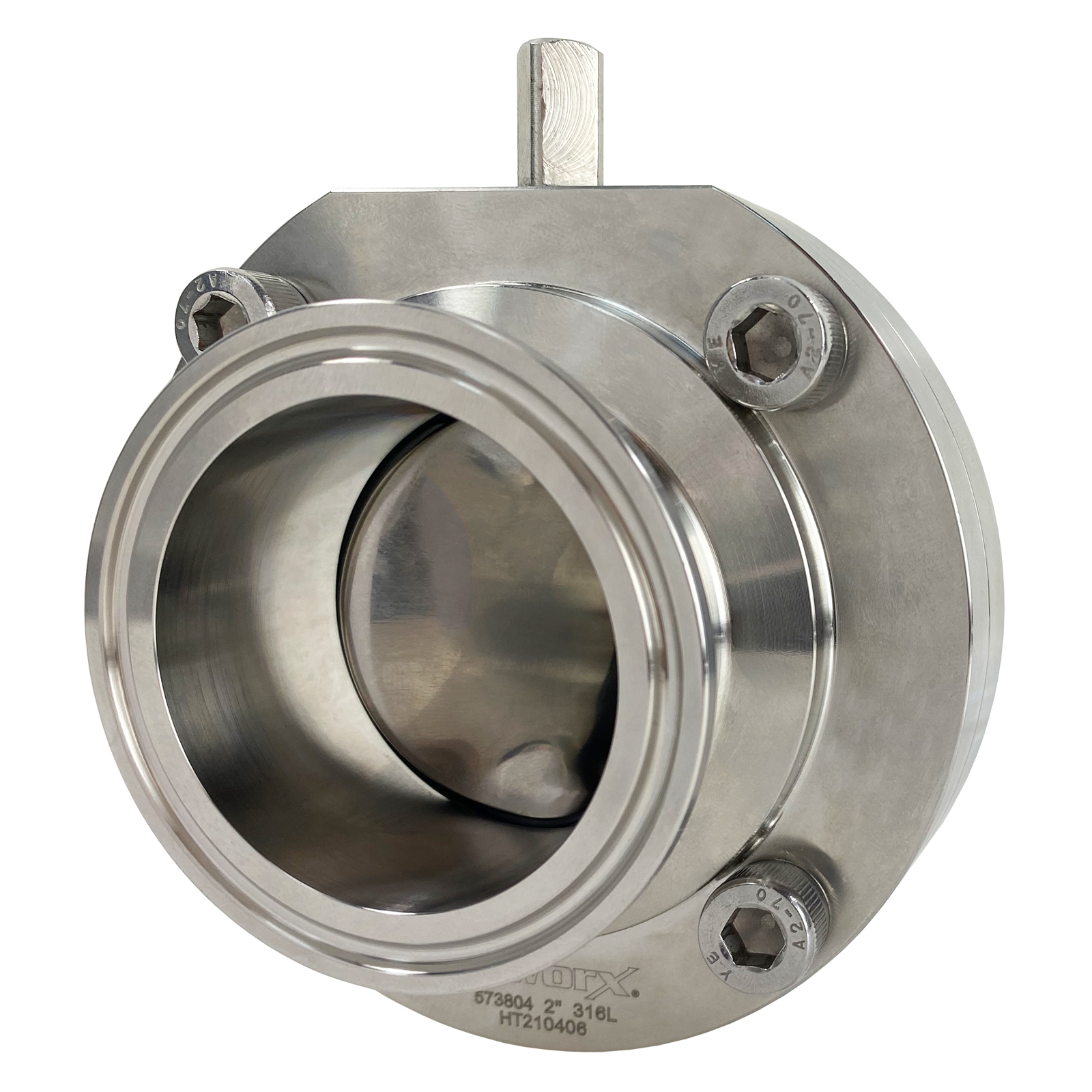

Valworx 573804 sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where 3-A sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Machined and chamfered in a single set-up for a precise fit.
Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meets FDA CFR 177.2600 All materials comply with FDA, USDA and 3-A requirements 316L stainless steel valve body and disc for superior corrosion resistance Standard Tri-Clamp ends for sanitary connections All valves are tested per API 598
| Type | 2-Way |
|---|---|
| Pipe Size ~ Tri-Clamp | 2" ~ 2" |
| Port Size | Full port, 2.0 inch orifice, Cv 230 |
| Pressure (Max) | 160 PSI WOG |
| Temperature Range | -67 to 302 °F (-55 to 150 °C) |
| Body | ASTM 316L stainless steel |
| Disc/Stem | ASTM 316L stainless steel |
| Internal Finish | 32 Ra |
| Valve Seats | EPDM |
| Bushings | Polypropylene |
| Bolts/Nuts | ASTM 304 stainless steel |
-
Tri Clamp
Price: $10.60
Buy 10 or more for $9.54 each
We provide 3D CAD models in Solidworks or STEP file formats for most of our Valworx products.
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
