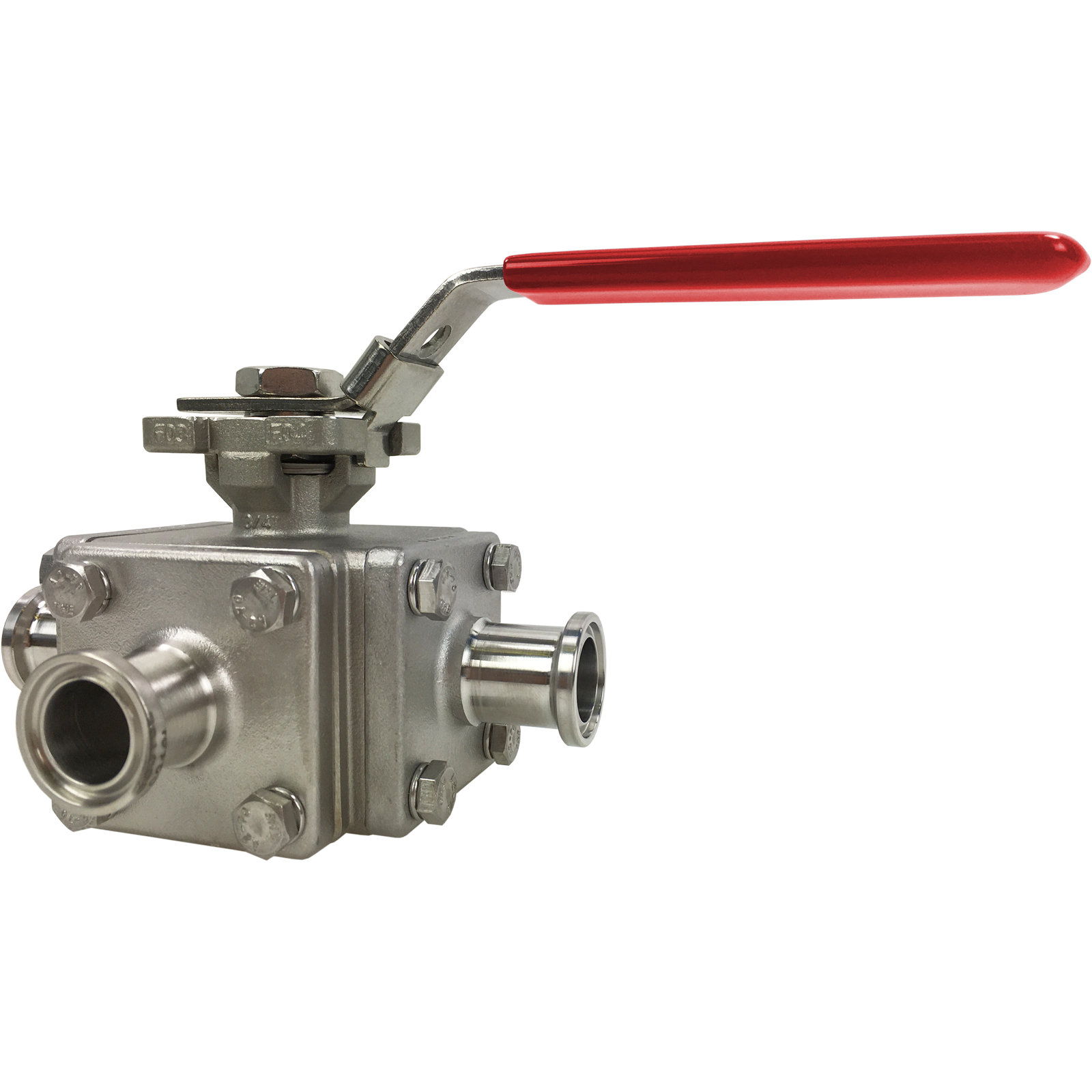

3/4" Sanitary 3-Way Ball Valve, T-Port, Direct Mount, Tri-Clamp

Stock #: 572101A
Brand: Valworx
Series: 5721
List Price: $600
Price: $480.00
Buy 3 or more for $432.00 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 572101A stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These T port valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem (factory setup T2 flow pattern). Highly polished internals (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.

  • Full Port for Unrestricted Flow
  • 8- 12 Ra finish on all internal surfaces
  • Dyneon PTFE ball seats and cavity fillers
  • All materials comply with FDA and USDA requirements
  • Triple PTFE/Viton Stem Seal Design, Live Loaded
  • Standard Tri-Clamp ends for sanitary connections
  • Actuator Ready ISO5211 Direct Mounting Pad
  • All valves are tested per MSS-SP82
  • TypeManual Sanitary 3 Way Ball Valve
    Pipe Size ~ Tri-Clamp3/4" ~ 3/4"
    Port SizeFull port, 0.6 inch orifice, Cv 10.4
    Shell Pressure (Max)1000 PSI WOG
    Valve Temperature Range-4 to 356 °F (-20 to 180 °C)
    Body/BallASTM 316 stainless steel
    StemASTM 316 stainless steel
    Internal Finish8- 12 Ra
    Ball SeatsDyneon PTFE
    Cavity fillerDyneon PTFE, encapsulated, all ports
    Stem SealsPTFE/ Viton, live loaded
    Bolts/NutsASTM 304 stainless steel
    ISO5211 MountF03/F04, 9mm square stem
    Max Fluid Velocity10 feet per second
    • Tri Clamp
      1/2
      1/2"-3/4" Tri Clamp Single Pin Stock #: 579900
      Usually Ships: Same Day
      Price: $8.13
      Buy 10 or more for $7.32 each
