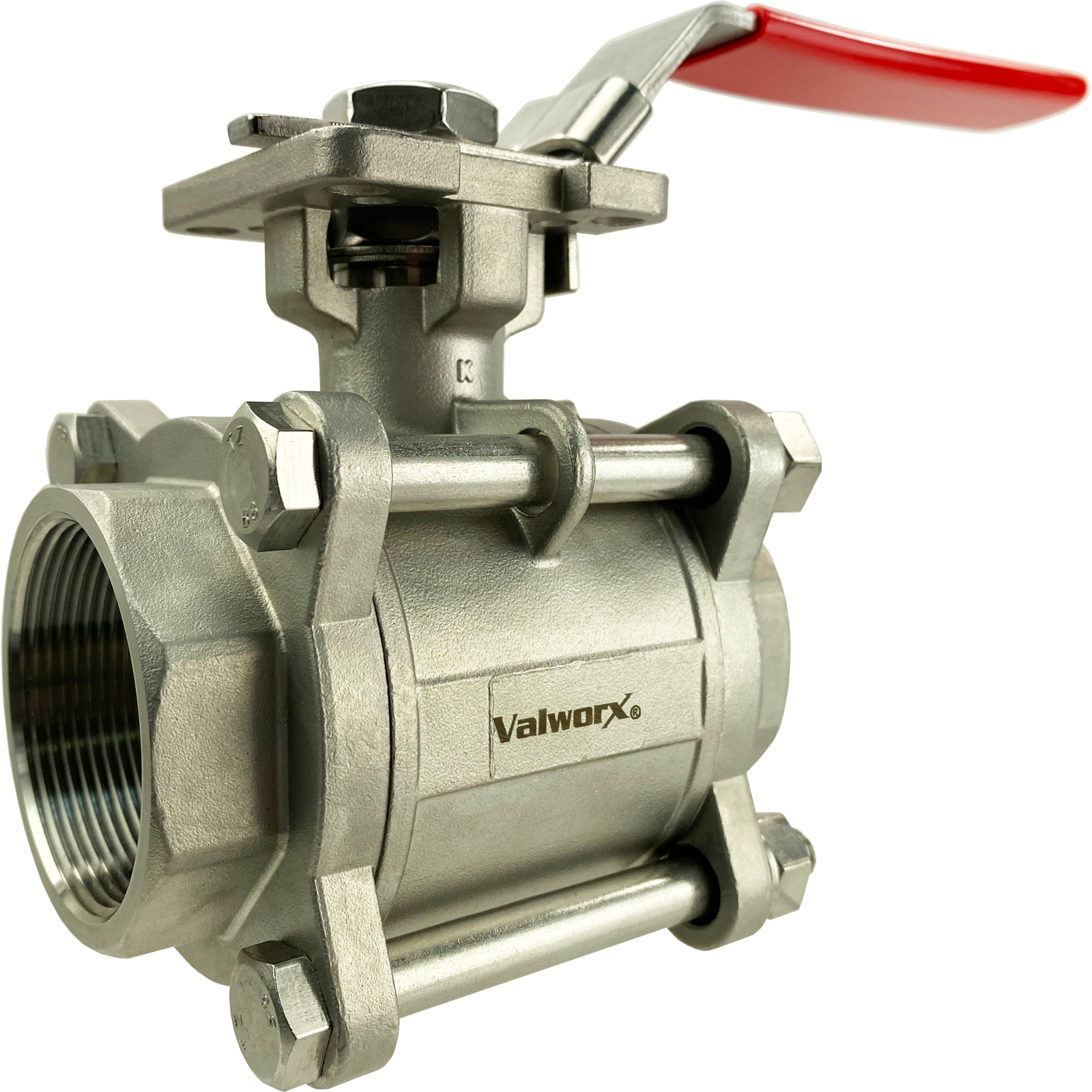

2" 3-Piece Stainless Ball Valve - Direct Mount

Stock #: 551516C
Brand: Valworx
Series: 5515
List Price: $410
Price: $328.00
Buy 3 or more for $295.20 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 551516C stainless steel 3-piece ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This ensures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

  • Full Port for Unrestricted Flow
  • 316 Stainless Steel Body, Ball and Stem
  • Blow Out Proof Stem
  • RTFE Ball Seats Extend Cycle Life and Reduce Torque
  • Triple PTFE/Viton Stem Seal Design, Live Loaded
  • Latch Locking Handle (Padlockable)
  • Actuator Ready ISO5211 Direct Mounting Pad
  • TypeManual 3 Piece Ball Valve
    Pipe Size2" NPT female
    Port SizeFull port, 2.00 inch orifice,Cv 226
    Pressure (Max)1000 PSI (see P/T chart),
    125 PSI saturated steam, vacuum service to 29" Hg
    Temperature Range-4 to 392 °F (-20 to 200 °C)
    Body/Ball316 stainless steel (ASTM A351 CF8M)
    Stem316 stainless steel
    Handle304 stainless steel with vinyl grip
    Ball SeatsRTFE (reinforced Teflon)
    Stem SealsPTFE/ Viton (live loaded and adjustable)
    Bolts/Nuts304 stainless steel
    ISO5211 MountF05/F07, 14mm square stem
    Max Fluid Velocity10 feet per second
