Select the desired V-port vertex angle (30°, 60°, or 90°) from the Accessories tab.

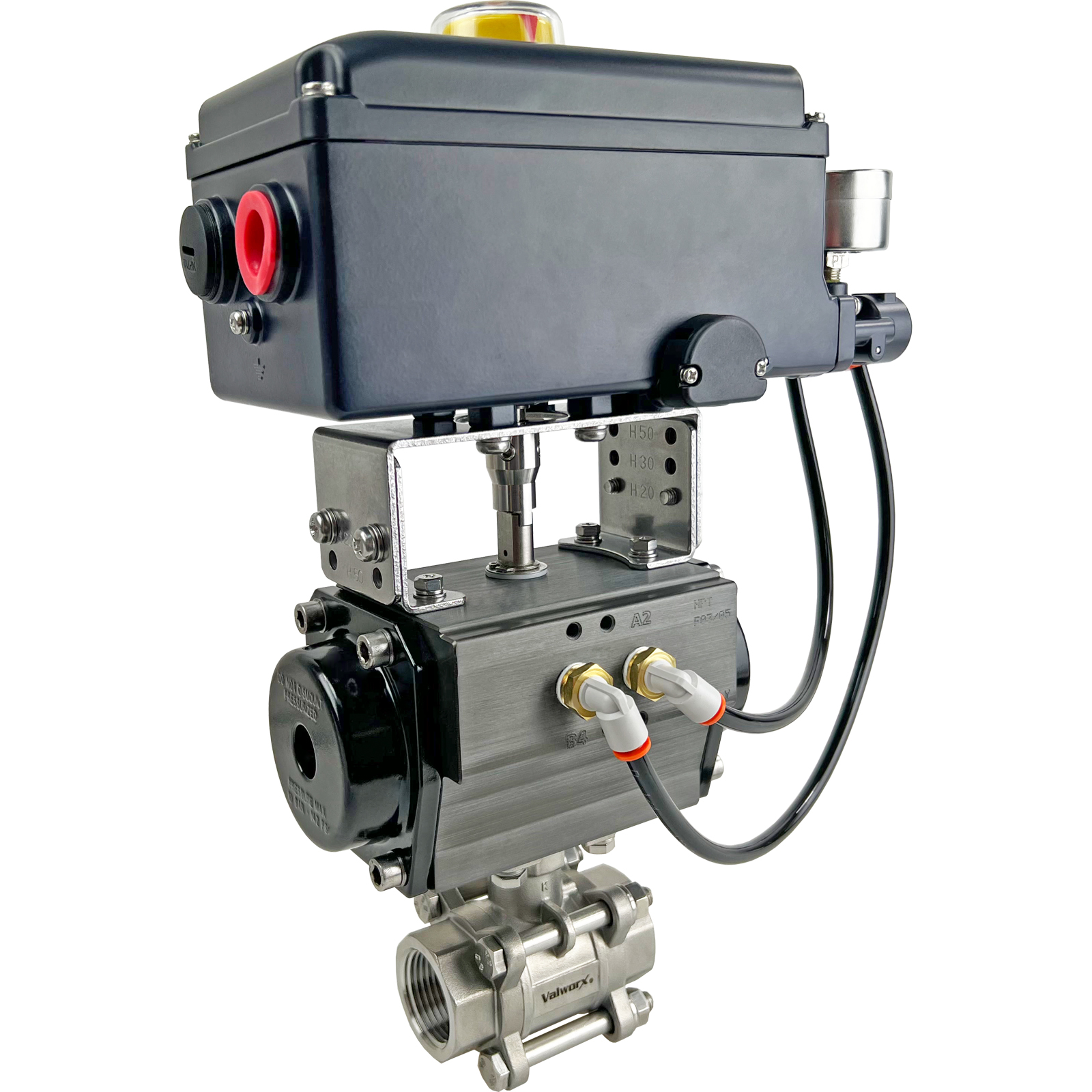

Valworx 550708 air actuated stainless steel V-port valves with limit switch are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. The valve has a three piece investment cast bolted body design with the advantage of a swing out body for easy inline maintenance. The pre-installed digital smart positioner provides fast and accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Multi-function display shows valve position, target position and other selectable parameters. The positioner also includes a dome indicator and position confirmation switches, thereby doubling as a limit switch. Double acting actuator requires air to open and air to close. The valve will remain in the last position with loss of supply air or electric signal.
All valves tested per API 598.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
1000 PSI working pressure (see P/T chart)Direct mounting valve per ISO5211V-port valves available in 30, 60 & 90° vertex angles316 stainless steel body, ball and stemBlow out proof stemRTFE ball seats extend cycle lifeTriple PTFE/Viton stem seal design, live loaded
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles)Quarter turn rack & pinion designDry or lubricated pilot airFactory lubricated for normal lifeAnodized aluminum body with epoxy-polyester coated end covers
Digital Smart Positioner Standard Features4- 20mA control signal and output signalHighly precise Linearity/Hysteresis/SensitivtyMulti-function digital displayRugged IP66 weatherproof aluminum enclosureInstalled, calibrated and testedHighly visual dome indicatorIncludes two SPDT limit switches for position confirmation
| Type | Air Actuated V-Port Ball Valve- Positioner w/Limit Switch |
|---|
| Pipe Size | 1" NPT female |
|---|
| Port Size | V-Port, orifice 1.00 inches, Cv 4.8/10.1/29.0 Vertex Angle 30°/60°/90° |
|---|
| Pressure (Max) | 1000 PSI (see P/T chart),
25 PSI saturated steam with kit, vacuum service to 29" Hg |
|---|
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
|---|
| Valve Body | 316 stainless steel |
|---|
| Ball | 316 stainless steel |
|---|
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
|---|
| Ball Seats | RTFE (reinforced Teflon) |
|---|
| Actuator Temperature Range | -4 to 176 °F (-20 to 80 °C) |
|---|
| Cycle Time | Approx. 1 second per 90° rotation |
|---|
| Actuator Seals | NBR |
|---|
| Actuator Enclosure Protection | IP67 Weatherproof |
|---|
| Positioner Input Signal | 4-20mA DC |
|---|
| Impedance | 340 +/- 15 ohms |
|---|
| Rotation | 0-90 degree (clockwise or counter-clockwise) |
|---|
| Supply Pressure | 20 to 100 psi (filtered, dry, oil free air) |
|---|
| Flow Capacity | 8.8 SCFM @ 20 psi |
|---|
| Air Consumption | 0.9 SCFM @ 20 psi |
|---|
| Positioner Ambient Temperature | -22 to 176 °F |
|---|
| Positioner Operating Temperature | -4 to 176 °F |
|---|
| Linearity | +/- 0.5% F.S. |
|---|
| Hysteresis | +/- 0.3% F.S. |
|---|
| Sensitivity | +/- 0.3% F.S. |
|---|
| Repeatability | +/- 0.2% F.S. |
|---|
| Air Connections | 1/4" NPT |
|---|
| Gauge Connections | 1/8" NPT |
|---|
| Valve Position | Dome Indicator |
|---|
| Valve Position Confirmation | 2 x SPDT limit switches rated 5A @ 220VAC |
|---|
| Positioner Enclosure | Aluminum die casting |
|---|
| Positioner Enclosure Rating | General purpose, IP66 weatherproof |
|---|
| Electrical Connection | 1/2" NPT female conduit |
|---|
| Mounting Bracket | Fits Namur 80x30 and 130x30 mounting holes with 20 or 30mm shaft height |
|---|
| Output signal | 4- 20mA output monitoring signal (same type as input signal) |
|---|
| Max Fluid Velocity | 10 feet per second |
|---|
