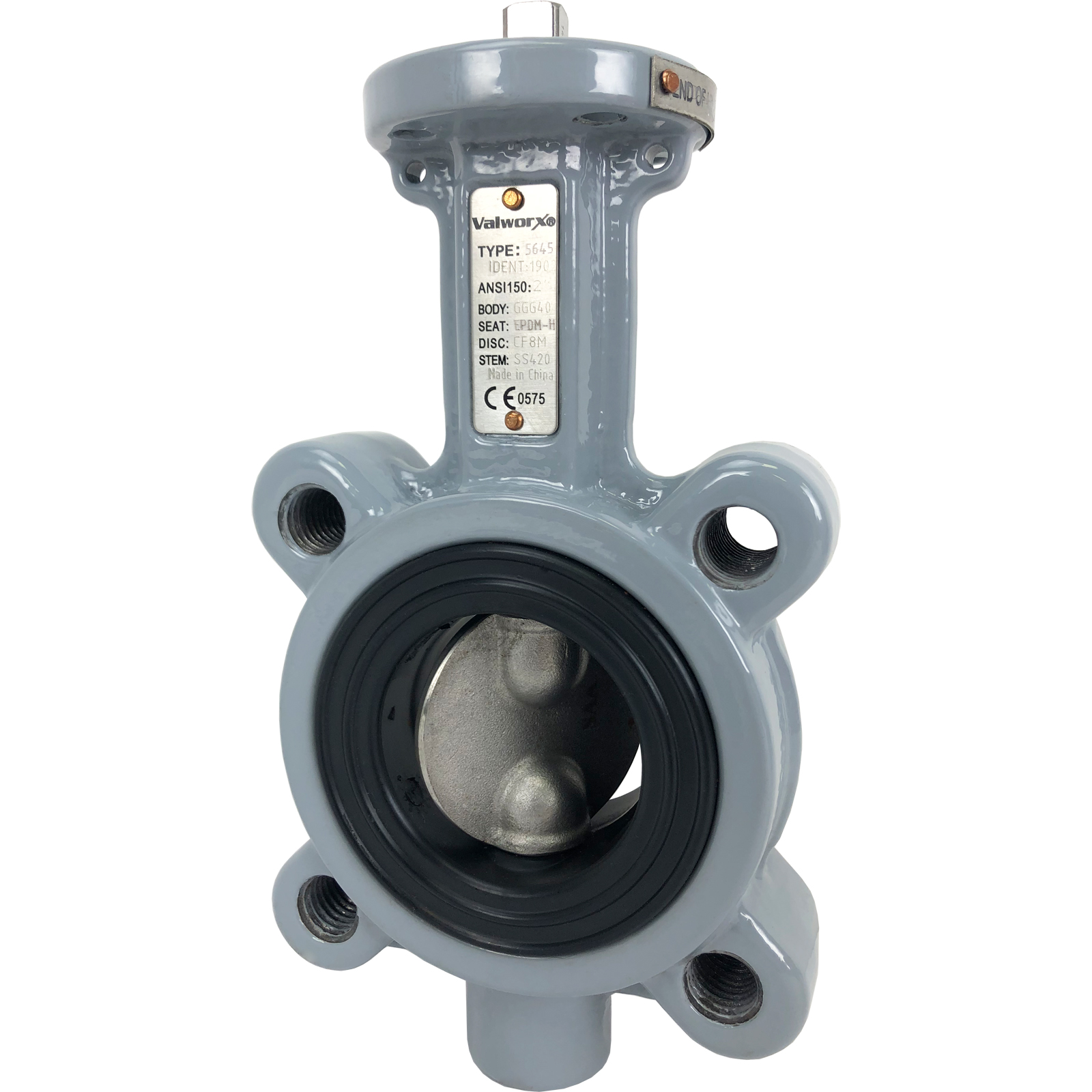

Direct Mount 2" Butterfly Valve Lug EPDM

Stock #: 564516
Brand: Valworx
Series: 5645
List Price: $198
Price: $158.40
Buy 3 or more for $142.56 each
Usually Ships: Same Day
Free Shipping on orders over $99
Soft seated Lug style butterfly valve for on-off control of water and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied ANSI /ASME Class 150 flanges. Unique wave line seat and disc shape, reduces the required torque and extends the life of the valve. The disc seat is vulcanized to the valve body, full pressure can be reached even at the end of the pipe. Precision machined 316SS disc with two-piece stem (shaft) construction, enhances the flow capacity of the valve and reduces turbulence. Stem utilizes PTFE/graphite bearings with V-type ring seals preventing leakage. Standard ISO5211 top mounting allows for easy air actuator, electric actuator or manual handle installation. Ductile iron body has a special epoxy coating for excellent weather and corrosion protection. This valve is a bare stem direct mount design, order optional hand lever or actuators separate.
TypeLugged Butterfly Valve
Pipe Size2 inch Lug design
Suitable FlangesANSI /ASME B16.5 Class150 and B16.1 Class 125
Flow CapacityCv 124 (Cv = number of GPM of 60 °F water at 1 psi pressure drop)
Pressure Rating29 inHg vacuum to 230 PSI
Temperature Range0 to 248 °F (-18 to +120 °C)
Valve BodyDuctile iron, epoxy coated (seat facing acts as flange gasket)
Disc316 stainless steel
Disc Seat/Liner EPDM
Shaft SealsEPDM V-ring
Upper/Lower StemSS420
Actuator MountISO5211, F05, 11mm square stem
