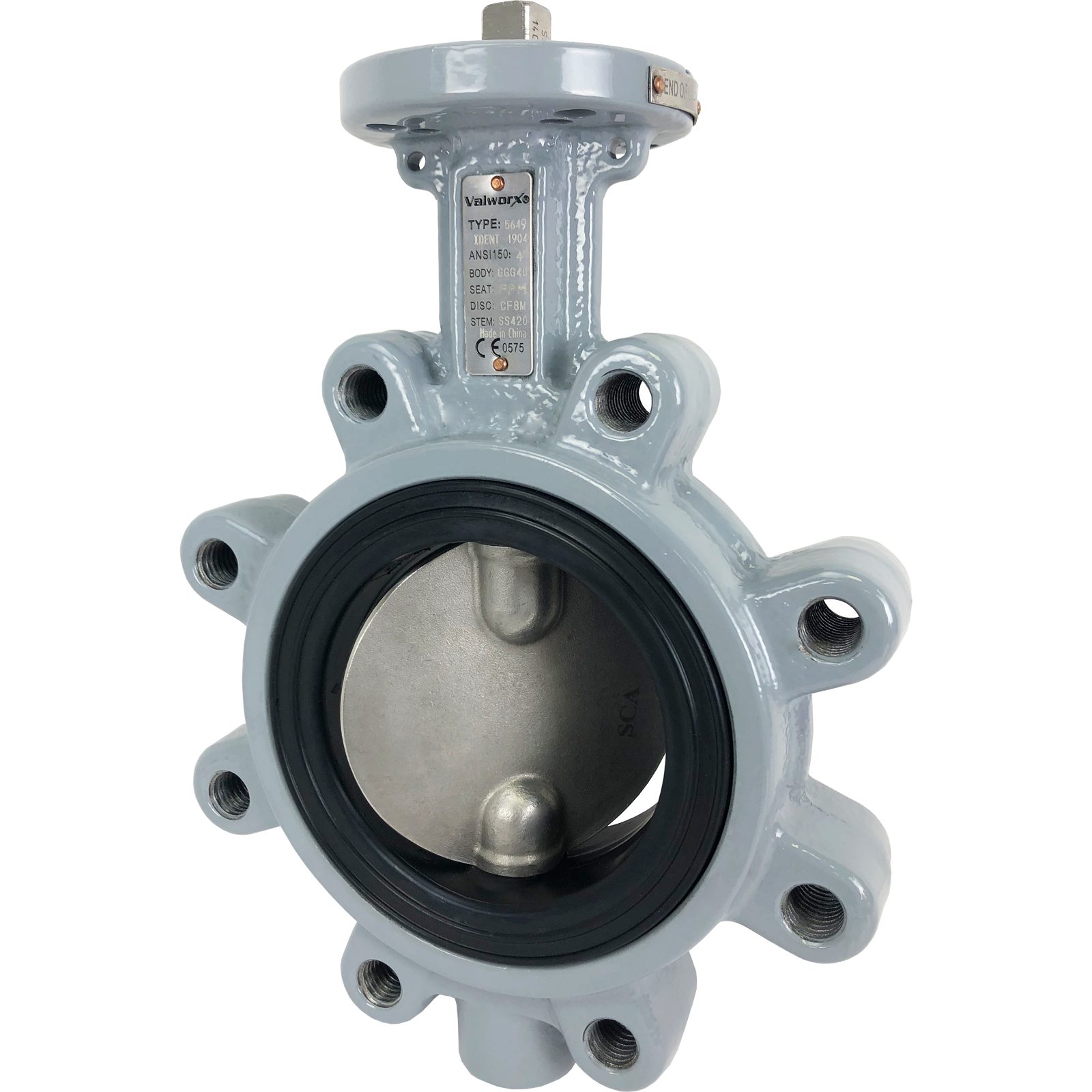

Soft seated Lug style butterfly valve used for controlling the flow of oil, hydrocarbons, air and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied ANSI /ASME Class 150 pipe flanges. Unique wave line seat and disc shape, reduces the required torque and extends the life of the valve. The disc seat is vulcanized to the valve body, full pressure can be reached even at the end of the pipe. Precision machined 316SS disc with two-piece stem (shaft) construction, enhances the flow capacity of the valve and reduces turbulence. Stem utilizes PTFE/graphite bearings with V-type ring seals preventing leakage. Standard ISO5211 top mounting allows for easy air actuator, electric actuator or manual handle installation. Ductile iron body has a special epoxy coating for excellent weather and corrosion protection. This valve is a bare stem direct mount design, order optional hand lever or actuators separate.
4 inch Lug design
ANSI /ASME B16.5 Class150 and B16.1 Class 125
Cv 929 (Cv = number of GPM of 60 °F water at 1 psi pressure drop)
29 inHg vacuum to 230 PSI
5 to 338 °F (-15 to +170 °C)
Ductile iron, epoxy coated (seat facing acts as flange gasket)
