Direct Mount 10" Butterfly Valve EPDM

Stock #: 564454
Brand: Valworx
Series: 5644
List Price: $880.00
Price: $704.00
Buy 3 or more for $633.60 each
Usually Ships: Same Day
Free Shipping on orders over $99

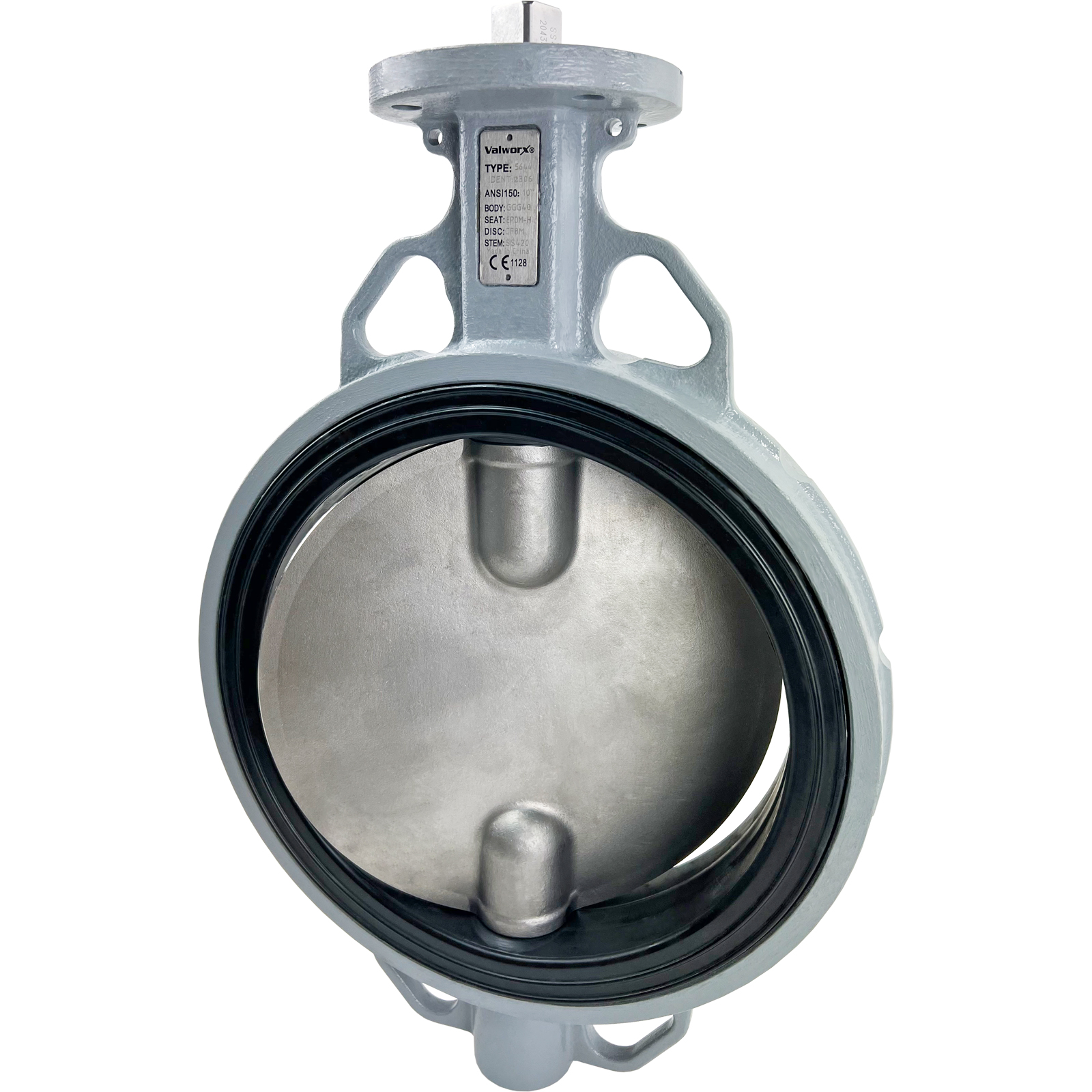

Soft seated Wafer butterfly valve for On/Off control of water and other media compatible with the materials of construction. Wafer style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges. Unique wave line seat and disc shape, reduces the required torque and extends the life of the valve. The disc seat is vulcanized to a phenolic back-up ring guaranteeing positive control of seating torque while eliminating seat distortion. Precision machined 316SS disc with two-piece stem (shaft) construction, enhances the flow capacity of the valve and reduces turbulence. Stem utilizes PTFE/graphite bearings with V-type ring seals preventing leakage. Standard ISO5211 top mounting allows for easy air actuator, electric actuator or manual handle installation. Ductile iron body has a special epoxy coating for excellent weather and corrosion protection. This valve is a bare stem direct mount design, order optional hand lever or actuators separate.

TypeWafer Butterfly Valve
Pipe Size10 inch wafer design
Suitable FlangesANSI /ASME B16.5 Class150, B16.1 Class 125, EN1092 PN10, PN16, BS10 D, E, JIS B2239 10K, 16K
Flow CapacityCv 4498 (Cv = number of GPM of 60°F water at 1 psi pressure drop)
Pressure Rating29 inHg vacuum to 145 PSI
Temperature Range0 to 248°F (-18 to +120°C)
Valve BodyDuctile iron, epoxy coating (seat facing acts as flange gasket)
Disc316 stainless steel
Disc Seat/Liner EPDM
Shaft SealsEPDM V-ring
Upper/Lower StemSS420
Actuator MountISO5211, F10, 22mm square stem
  • Gear Operator Handwheel 8- 10
    Gear Operator Handwheel 8- 10" Stock #: 565012
    Usually Ships: Same Day
    Price: $123.20
    Buy 5 or more for $110.88 each
    Quantity
