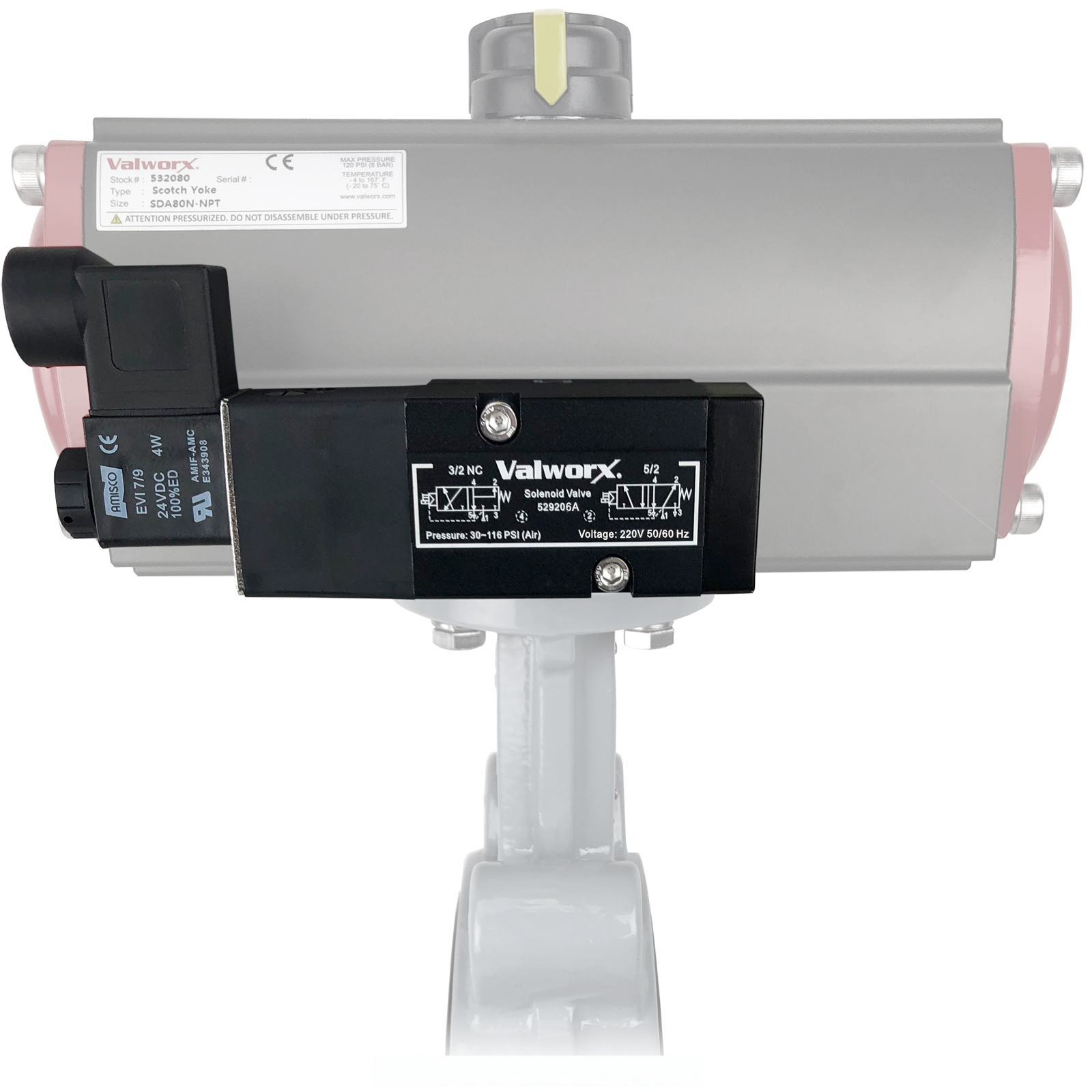

Direct Mount Solenoid Valve 220V 50/60Hz

Stock #: 529206A
Brand: Valworx
Series: 5292
List Price: $118.00
Price: $94.40
Buy 10 or more for $84.96 each
Usually Ships: Same Day
Free Shipping on orders over $99
Direct mount air solenoid valves can be adapted for 5/2 or 3/2 NC functions for electrically controlling double acting or spring return air actuated valves. Valves mount directly to actuators with the international standard Namur interface saving time, space and plumbing. Compact high flow design includes a black anodized aluminum body with a low wattage molded coil. Unique long life spool and sleeve design can be used with lubricated or non-lubricated compressed air. Twist and lock manual override is useful in operating the valve during setup, testing or power outage situations. Easy to wire 1/2" conduit DIN plug connector with screw terminals is included with each valve. This valve offers excellent environmental protection against the ingress of liquids, dust and other foreign matter. Optional actuator speed controls and mufflers are listed under accessories.

These solenoid valves are PRE-INSTALLED and TESTED when ordered with a Valworx air actuated valve.

Series 5292 solenoid valves are for use on Valworx Scotch Yoke actuators.
Type3 or 4-way, 2-Position spring return (3/2 NC or 5/2)
Pipe Size1/4" NPT inlet and (2) exhaust ports
Flow0.20 orifice, Cv 1.1, 52 SCFM
ConstructionAnodized aluminum body, glass filled PA, POM and NBR seals
Pressure (Min-Max)30-116 PSI (air)
Working Media 40 micron filtered and dried compressed air
Manual Override Twist and lock
Coil TypeGeneral purpose, class F coil, continuous duty 100% duty cycle
Voltage/Watts220 VAC 50/60Hz, 5 VA
Solenoid EnclosureIP65 dusttight and weatherproof
Wiring1/2" conduit DIN Plug connector with screw terminals (included)
ApprovalsUL recognized coil - File E343908, CE
Working Temperature-13 to 176 °F (coil ambient temp. -4 to 122 °F)
  • ISO DIN Plug with 16ft Cable for Solenoid Valves
    Price: $27.08
    Buy 10 or more for $24.37 each
  • 3-Conductor Cable for 5291/5292 Series Solenoid Valves- 16ft
    Price: $28.80
    Buy 10 or more for $25.92 each
  • Actuator Speed Control - Spring Return
    Price: $64.80
    Buy 10 or more for $58.32 each
  • Actuator Speed Control - Double Acting
    Price: $64.80
    Buy 10 or more for $58.32 each
  • Speed Control Mufflers 1/4
    Price: $3.92
    Buy 24 or more for $3.53 each
  • Brass Exhaust Muffler 1/4
    Price: $3.10
    Buy 24 or more for $2.79 each
