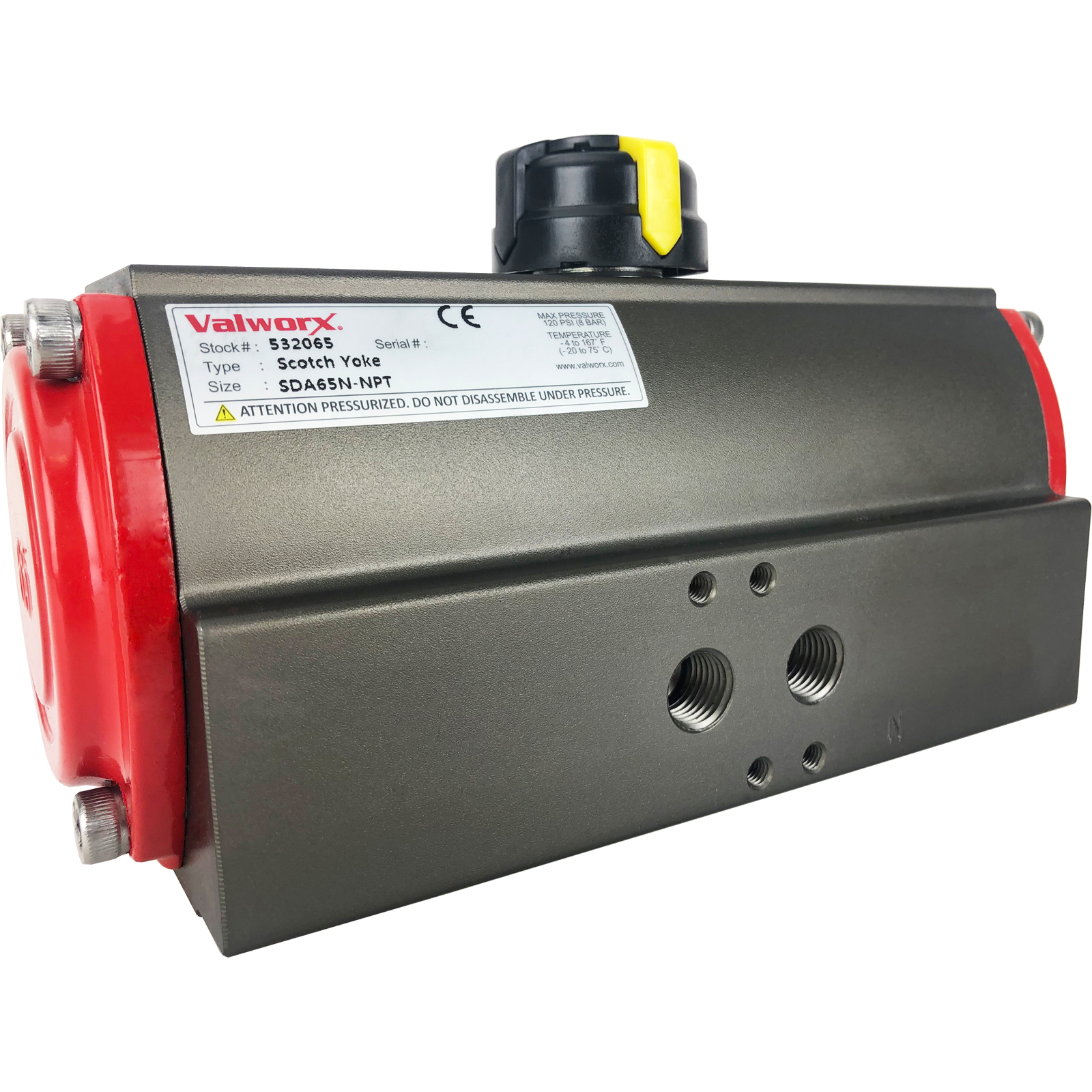

Valworx 532065 rugged scotch yoke air actuators are typically used to operate quarter turn ball valves, butterfly valves, plug valves and dampers. Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Double acting actuators use air pilot pressure to open and air pilot pressure to close. The pilot air is typically controlled by a 4-way type manual or solenoid valve.
An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.
Pneumatic Actuator Standard Features
Prelubricated and tested to minimum 1 million cycles Rugged scotch yoke designISO5211 valve mounting pad Highly visible valve position indicatorDry or lubricated pilot airType IP66 & IP68 weatherproof enclosureAluminum body with 35 micron hard anodizingPolyester powder coated and soft anodized aluminum end coversNamur mounting pad for direct mounted solenoid valvesVDI/VDE 3845 mounting for top mounted accessories
Options (see Accessories tab)
| Type | Double Acting Pneumatic Actuator |
|---|
| Size | DA65 |
|---|
| Torque | 752 inch lbs @ 72 PSI see torque chart (85 Nm @ 5 Bar) |
|---|
| Rotation | 90° (quarter turn) |
|---|
| Pilot Media | Filtered, dry or lubricated compressed air |
|---|
| Pilot Air Pressure | 120 PSI max. (8 Bar) |
|---|
| Pilot Air Connections | 1/4" NPT |
|---|
| Pilot Solenoid Mounting | Namur mounting pad per VDI/VDE 3845 |
|---|
| Valve Mounting ISO5211 | F05/F07 |
|---|
| Output Drive | 14mm female double square |
|---|
| Body | ASTM 6063 extruded aluminum, 35 micron anodizing |
|---|
| End Covers | Soft anodized aluminum with polyester coating |
|---|
| Shaft | Nickel plated steel alloy |
|---|
| Seals | NBR |
|---|
| Position Indicator | Glass filled polyamide |
|---|
| Temperature Range | -4 to 167 °F (-20 to 75 °C) |
|---|
| Rotation Adjustment | +5°/- 10° at 90° position |
|---|
| Top Accessory Mounting | Namur mounting per VDI/VDE 3845 |
|---|
