Electric Actuator Standard FeaturesBrushless motor Quarter turn operation External LED diagnostic light Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override Highly visual dome style position indicator Electrical connections by DIN plug connectors Two auxiliary limit switches to confirm open and closed position Standard ISO5211 multi-flange valve mounting Anti-corrosion resistant IP67 weatherproof enclosure

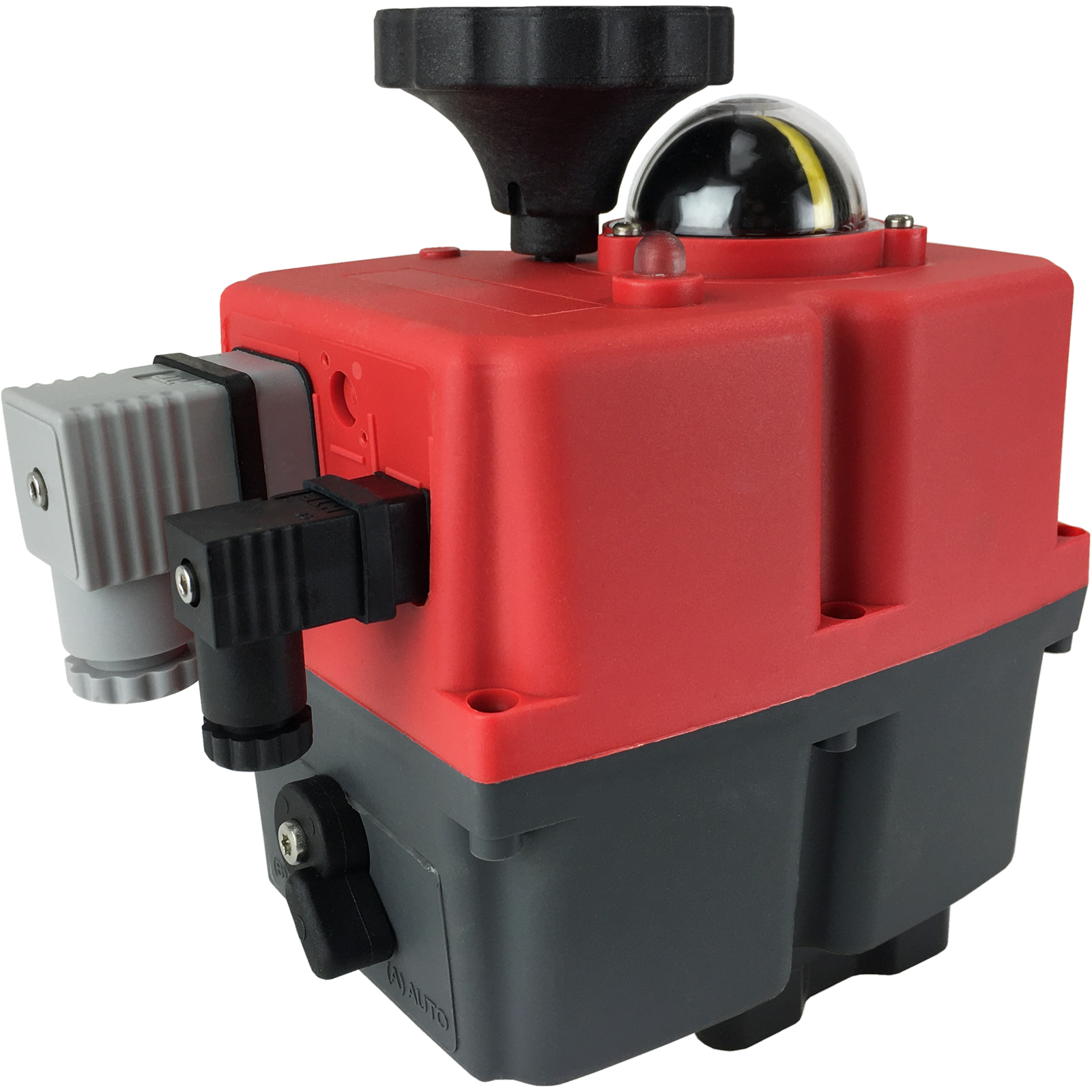

Valworx 561055E electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.
Options for 5610 Actuator (see Accessories tab)
Valworx 561055E electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear drive system rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Electrical wiring via DIN style plug connectors, no need to remove the actuator cover. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation. Electronic over torque protection helps prevent damage due to valve jams.
Options for 5610 Actuator (see Accessories tab)
Type
On-Off with DPS Positioner and BSR Failsafe options available
Working Rotation
90° (quarter turn)
Max Run Torque
486 in lbs (55Nm)
Max Break Torque
530 in lbs (60Nm)
Voltage
24 to 240 Volts AC or 24 to 135 Volts DC (1 ph, auto-voltage sensing)
Current Rating
0.43A @ 110VAC, 0.21A @ 240VAC, 1.98A @ 24VAC
1.63A @ 24VDC (full load amps)
1.63A @ 24VDC (full load amps)
Cycle Time
13 seconds per 90° rotation (no load, +/- 10%)
Duty Cycle
75%
Enclosure
Anti-corrosion polyamide, UV protection, SS fasteners
Enclosure Protection
IP67 weatherproof
Manual Override
Polyamide knob
Motor Type
Brushless
Motor Protection
Electronic over-torque
Temperature Range
-4 to +158 °F (-20 to +70 °C)
Position Indicator
Highly visual dome style
Position Confirmation
2 x SPST limit switches 3A @ 125/250VAC, 30VDC resistive load
Anti-Condensation Heater
4 watts thermostatically controlled
ISO5211 Mounting
F05, FO7 (multi-flange)
Output Drive
14mm double square (female)
Electrical Connections
DIN plugs with cable entry (optional 1/2" conduit plugs or prewired cable)
Approvals
CE Mark
-
Digital Positioner System
Price: $363.20
Buy 3 or more for $326.88 each
-
Price: $363.20
Buy 3 or more for $326.88 each
-
Failsafe Battery Kit
Price: $381.60
Buy 3 or more for $343.44 each
-
Connectors & Cables
Price: $6.40
Buy 10 or more for $5.76 each
-
Price: $14.64
Buy 10 or more for $13.18 each
-
Price: $27.08
Buy 10 or more for $24.37 each
-
Price: $19.84
Buy 10 or more for $17.86 each
5610 Series Product Data Sheet 5610/5616 Series On/Off Electric Actuators - Installation Instructions 5610/5616 Series Electric Actuators with DPS Positioner - Installation InstructionsWe provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email sales@valworx.com to request the specific files you need. Include the stock number and any accessories with your request.
