Electro-Pneumatic Positioner 4-20mA Input

Stock #: 529960A
Brand: Valworx
Series: 5299
List Price: $670.00
Price: $536.00
Buy 3 or more for $482.40 each
Usually Ships: 4- 6 Weeks
Free Shipping on orders over $99
Electro-pneumatic positioners are used with rotary air actuators to accurately position control valves used in throttling applications. These valve positioners convert a 4-20mA input control signal to a proportional pneumatic output. This output is fed to an air actuator which in turn controls the valve position and flow (combined with mechanical feedback). Air actuated valves with positioners have a history of rugged and reliable service in tough applications. Valworx positioners offer fast and accurate control of ball valves, butterfly valves and other type valves. These positioners direct mount to rotary type air actuators with the standard VDI / VDE-3845 Namur style top shaft mounting. Universal Namur mounting bracket kit is included with each positioner. Suitable for use with Valworx double acting or spring return air actuated valves, as well as most other brands utilizing the standard Namur mount. Rugged aluminum die cast housing has superior anti-corrosion surface treatment and an easy read visual valve position indicator. Easy to adjust zero and span. Positioner is PRE-INSTALLED when ordered with a Valworx air actuated valve package.

Note: The cycle time of assemblies using a positioner could be slower than the actuator cycle time by upwards of 10 seconds.
Input Signal4-20mA DC
Impedance250 +/- 15 ohms
Rotation0-90 degree (clockwise or counter-clockwise)
Supply Pressure20 to 100 PSI (filtered, dry, oil free air)
Flow Capacity2.8 SCFM
Air Consumption0.10 SCFM
Ambient Temperature-4 to 158 degree F
Linearity+/- 1.5% F.S.
Hysteresis+/- 1.5% F.S.
Sensitivity+/- 0.4% F.S.
Repeatability+/- 0.5% F.S.
Air Connections1/4" NPT
Gauge Connections1/8" NPT
EnclosureAluminum die casting
Enclosure RatingGeneral purpose, IP66 weatherproof
Electrical Connection1/2" NPT female conduit
Mounting BracketFits Namur 80x30 and 130x30 mounting holes with 20 or 30mm shaft height
  • Installation Kit

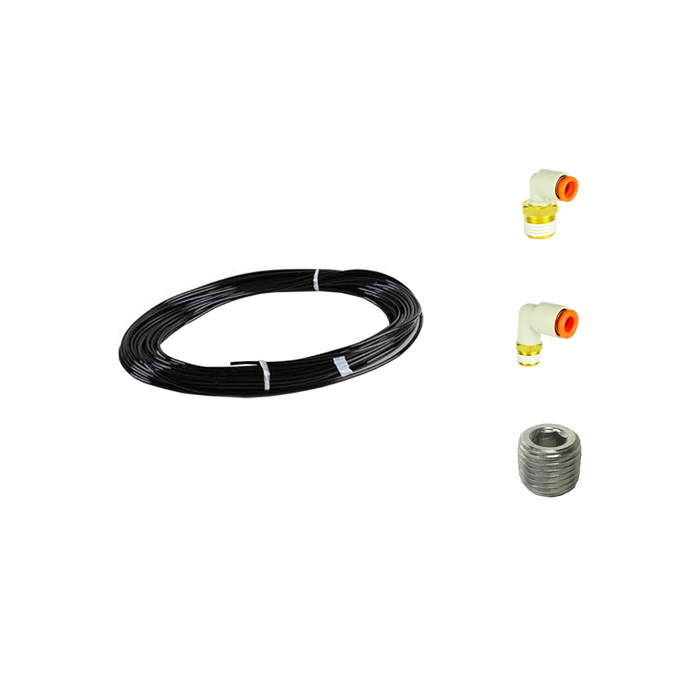

    Installation Kit, Pneumatic Positioner, 1/8
