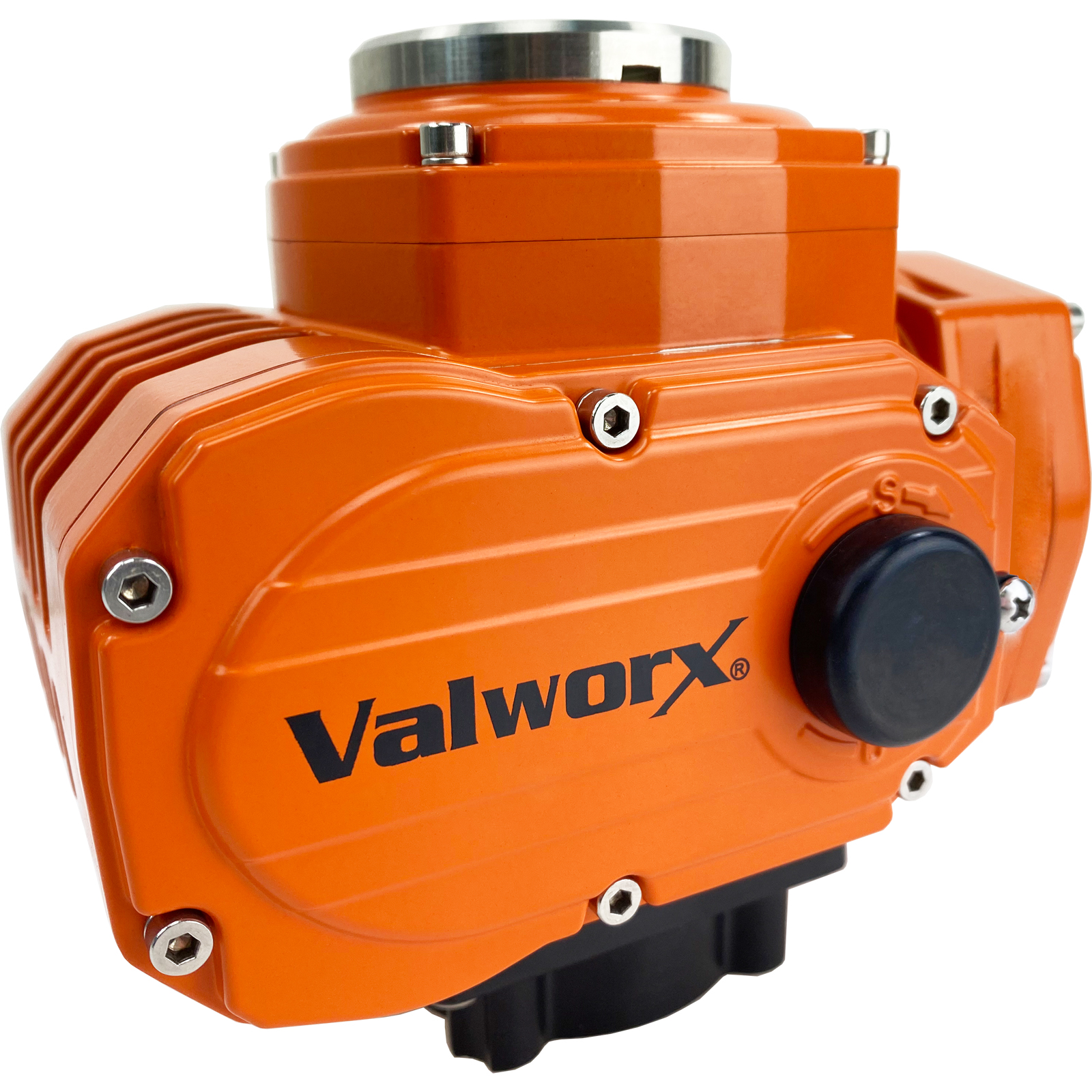

Explosion Proof Actuator 442 in.lbs (50Nm), 110 VAC

Stock #: 581850
Brand: Valworx
Series: 5818
List Price: $946
Price: $756.80
Buy 3 or more for $681.12 each
Usually Ships: Same Day
Free Shipping on orders over $99
Explosion Proof Actuator Standard Features

  • UL Class I Div 1 Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC Gb Explosion Proof Rating
  • Quarter turn operation with mechanical limits
  • Rugged Type 4X weatherproof aluminum alloy enclosure
  • Visual valve position indicator
  • Manual override
  • Heavy duty motor with overload protection
  • Thermostatically controlled anti-condensation heater
  • Two auxiliary limit switches to confirm valve position
  • Self-locking all metal gear drive, no additional brake required
  • Standard ISO5211 multi-flange valve mounting
  • CSA Listed per UL429 and CSA C22.2, CE mark

  • Valworx 581850 electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.

    These electric actuators are typically used where flammable gases may be present. Automate quarter turn ball valves, butterfly valves or dampers. Valve mounting using standard ISO5211 multi-flange mounting and double square drive. Unique integral motor/housing design provides higher torque in a very small package.

    Actuators are tested to rigorous UL and CSA standards and certified by CSA per above. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation.

    Wiring connection is via two 1/2" NPT threaded ports using Exp rated connectors or pipe (not included).
    TypeExplosion Proof On-Off
    Working Rotation90° (quarter turn)
    Max Torque442 in lbs (50Nm)
    Voltage110 VAC 50/60 Hz
    Current Rating0.27A (full load amps)
    Cycle Time20 seconds per 90° rotation (no load)
    Duty Cycle70%
    EnclosureAluminum alloy, polyester painted, SS fasteners
    Enclosure ProtectionType 4X (IP67) weatherproof
    Manual Override5mm hex drive with protective cover
    Motor ProtectionThermal overload
    Temperature Range-13 to +131 °F (-25 to +55 °C)
    Valve Position Confirmation2 x SPST auxiliary limit switches 3A @ 125/250VAC, 30VDC resistive load
    Anti-Condensation Heater4 watts thermostatically controlled
    ISO5211 MountingF03, F05, F07 (multi-flange)
    Output Drive14mm double square (female)
    Electrical ConnectionsTwo 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included).
    ApprovalsUL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb
