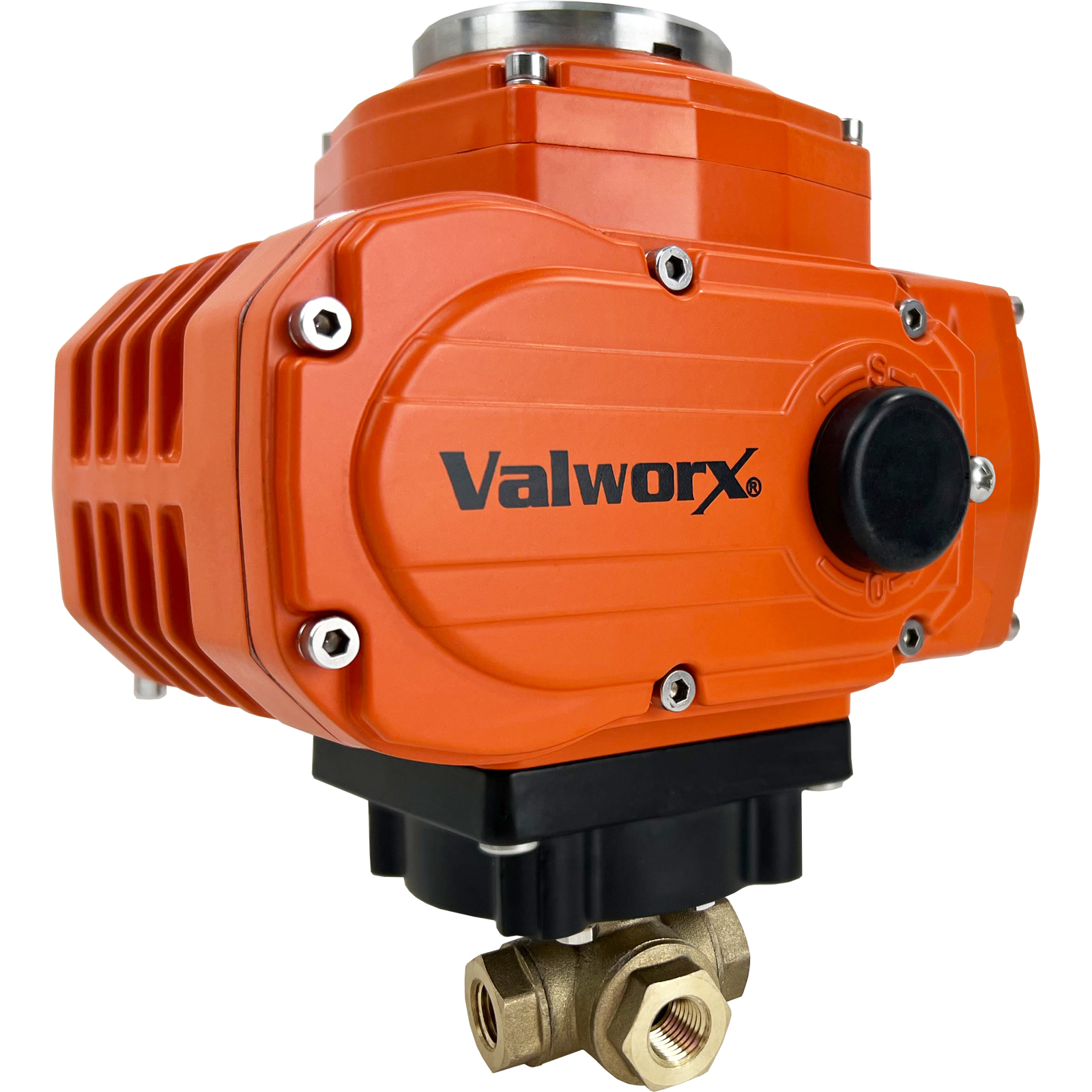

Valworx 583702 explosion proof 3-way FULL PORT lead free ball valves are used to control the flow of water, air, oil, and other media compatible with the materials of construction. These 3-way T-Port valves are typically used as diverter or mixing valves. Four ball seat design allows for full pressure at any port. Ideal where lead free and NSF approved construction are required for potable drinking water, or other general industrial applications in hazardous environments. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal self-locking gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. There is no flow shutoff position with this type valve.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package.
Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA. Two auxiliary limit switches are provided to confirm valve position.
High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design.
Ball Valve Standard Features
Full Port designLead free brass body400 PSI working pressure (see P/T chart)Direct mounting valve per ISO5211Stainless steel ball and stemFour ball seat design allows for full pressure at any portEnergized PTFE ball seats for extended cycle life and reduced torqueLeak free triple PTFE/Viton stem seal designCertified per NSF372 and NSF61 for use with potable/drinking water
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 GbsRugged Type 4X weatherproof aluminum alloy enclosureVisual valve position indicatorManual overrideHeavy duty motor with overload protectionTwo auxiliary limit switches to confirm valve positionsSelf-locking all metal gear drive, no additional brake requiredCSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
Type | Explosion Proof Electric Actuated 3 Way Brass Valve- On/Off |
Voltage | 24 VDC |
Current Rating | 1.8A (full load amps) |
Cycle Time | 20 seconds per 90° rotation (no load) |
Pipe Size | 1/4" NPT female |
Port Size | Full Port, orifice 0.39 inches, Cv 3.2 |
Pressure (Max) | 400 PSI CWP non-shock (see P/T chart), Vacuum service to 29" Hg |
Valve Temperature Range | -0 to 344 °F (-18 to 173 °C) |
Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
Valve Body | Lead Free Brass C69300 |
Ball and Stem | 316 stainless steel |
Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
Ball Seats | (4) PTFE (Teflon) energized with FKM (Viton) |
Enclosure | Aluminum alloy, polyester painted, SS fasteners |
Duty Cycle | 70% |
Enclosure | Aluminum alloy, polyester coating, SS fasteners |
Enclosure Rating | Type 4X (IP67) weatherproof |
Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
Manual Override | 5mm hex drive with protective cover |
Motor Protection | Thermal overload |
Explosion Proof | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
Max Fluid Velocity | 10 feet per second |
Explosion Proof NPT Plug
Price: $22.94
Buy 3 or more for $20.65 each
