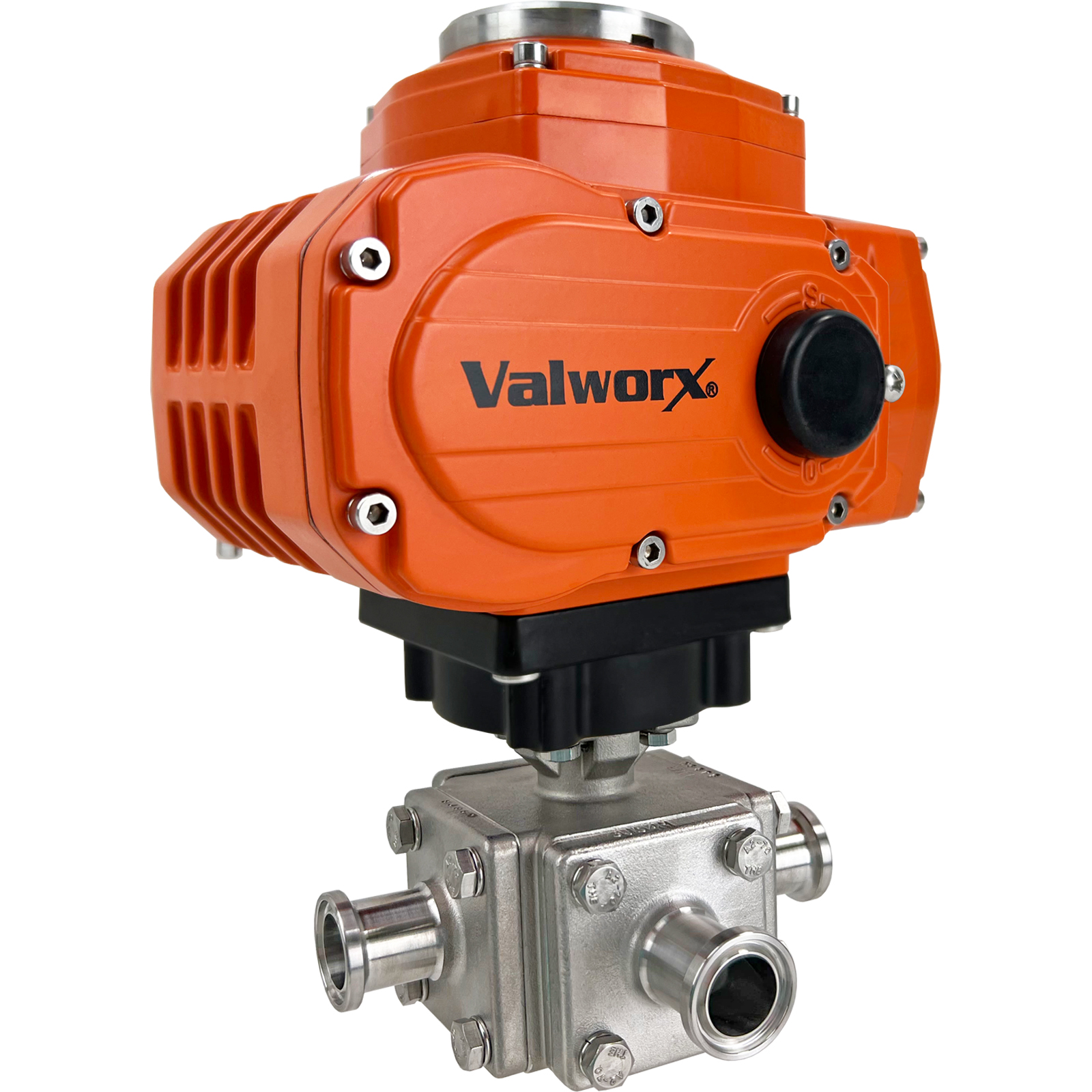

Valworx 582901A explosion proof 3-way sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and hazardous environment applications where quick clamp applications are needed.
The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve.
These T port valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem (factory setup T2 flow pattern).
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators.
Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections All valves are tested per API 598
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve.
These T port valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem (factory setup T2 flow pattern).
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators.
Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Explosion Proof 3-Way Sanitary Ball Valve- Positioner |
|---|---|
| Pipe Size ~ Tri-Clamp | 3/4" ~ 3/4" |
| Port Size | Full port, 0.6 inch orifice, Cv 10.4 |
| Pressure (Max) | 1000 PSI WOG |
| Valve Temperature Range | -4 to 356 °F (-20 to 180 °C) |
| Actuator Temperature Range | -13 to 131 °F (-25 to +55 °C) |
| Valve Body | 316 stainless steel |
| Ball | 316 stainless steel |
| Ball Seats | Dyneon PTFE |
| Cavity filler | Dyneon PTFE, encapsulated |
| Stem Seals | PTFE/ Viton, live loaded |
| Voltage | 24 VDC |
| Current Rating | 1.8A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (no load) |
| Duty Cycle | 70% |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Explosion Proof | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
| Max Fluid Velocity | 10 feet per second |
-
Explosion Proof NPT Plug
Price: $22.94
Buy 3 or more for $20.65 each
-
Tri Clamp
Price: $8.13
Buy 10 or more for $7.32 each
5838/5829 Series Product Data Sheet 5818 Series On/Off Explosion Proof Actuators - Installation Instructions 5818 Series Explosion Proof Certificate of ComplianceWe provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email sales@valworx.com to request the specific files you need. Include the stock number and any accessories with your request.
Note: Fusion360 users must have Fusion360 open in order to download.
Note: if you are not seeing a list of CAD formats in the drop down menu, try clearing your browser's cache.
Displaying the model may take a few seconds.
powered by TraceParts
-
3/4" Sanitary 3-Way Ball Valve, L-Port, Direct Mount, Tri-Clamp Stock #: 573101AUsually Ships: Same DayPrice: $480.00
Buy 3 or more for $432.00 each
-
Explosion Proof Actuator 442 in.lbs (50Nm), 24 VDC, EPS Positioner Stock #: 581857Usually Ships: Same DayPrice: $1,524.80
Buy 3 or more for $1,372.32 each
-
Replacement Seal Kit
3/4" Sanitary Ball Valve Seal Kit, 3 Way L-Port, Cavity Filled Stock #: R5731AXX01Usually Ships: Same DayPrice: $67.90
