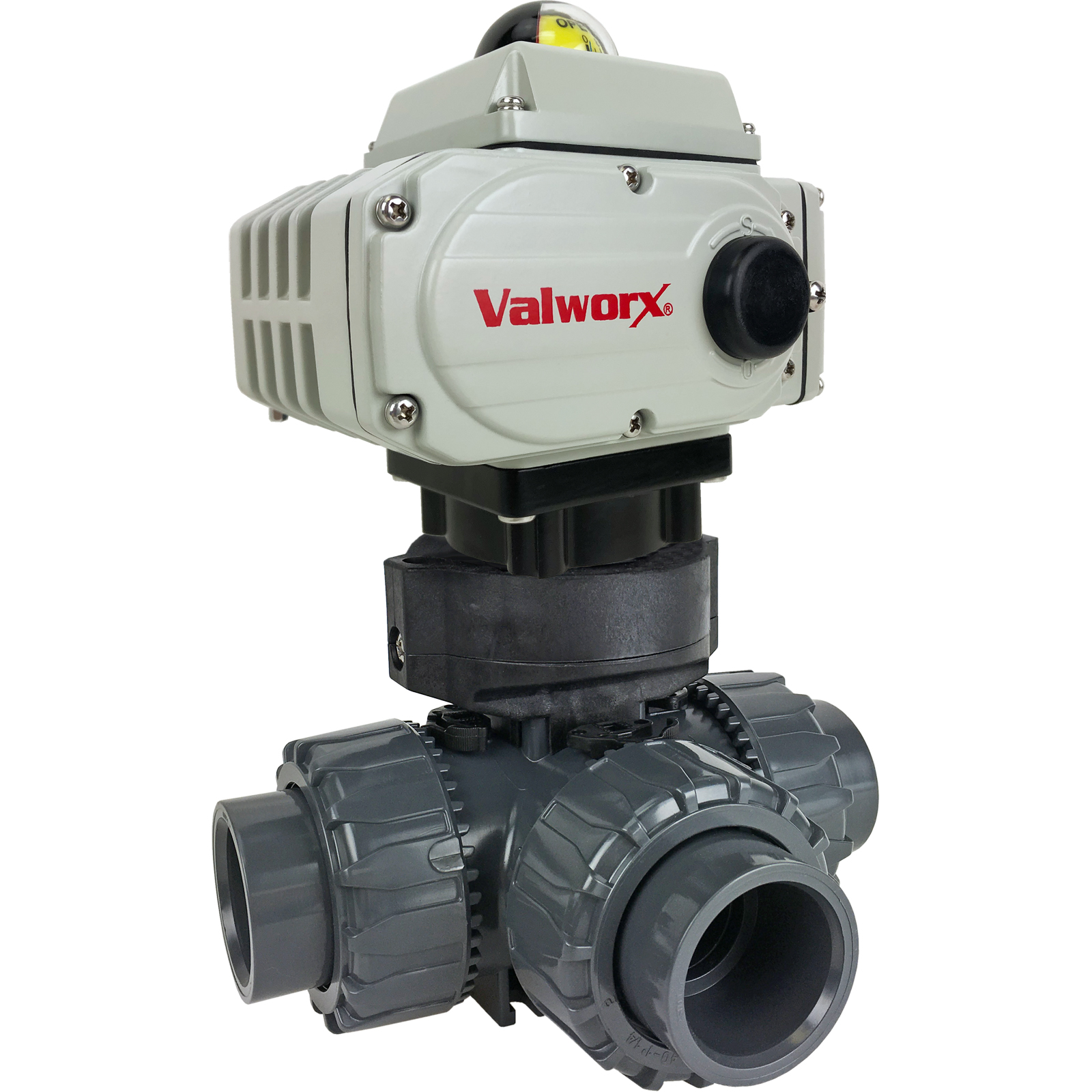

Valworx 565610C electric actuated 3-way T-port PVC ball valves are typically used as a diverter valve to control the flow of water and other liquid media compatible with the materials of construction (not suitable for air or gas). Ideal for applications where NSF certified construction is required for potable drinking water as well as other industrial applications. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in the last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal gear drive rotates the ball valve. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard Features
Industrial grade full port PVC ball valveTru Union nuts with locking device prevents back-offEnergized PTFE ball seats for lower torque and extended lifeFour ball seat design allows for full pressure at any portLeak free dual stem seal designMicro-adjustable ball seat carrierPressure rated 232 PSI at 73°FSeries 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for use with potable drinking waterIncludes IPS glue sockets and NPT end connectors
Electric Actuator Standard FeaturesQuarter turn operation with mechanical limitsRugged Type 4X weatherproof aluminum alloy housingVisual valve position indicatorManual overrideHeavy duty motor with overload protectionThermostatically controlled anti-condensation heaterTwo auxiliary limit switches to confirm valve positionSelf-locking all metal gear drive, no additional brake requiredCSA Listed per UL429 and CSA C22.2, CE mark
| Type | Electric Actuated PVC 3 Way Valve- On/Off |
|---|
| Voltage | 110 VAC 50/60Hz |
|---|
| Current Rating | 0.27A (full load amps) |
|---|
| Cycle Time | 10 seconds per 90° rotation (+/- 10% no load) |
|---|
| Pipe Size | 1-1/4 inch (both IPS glue socket and NPT end connectors included) |
|---|
| Port Size | Full Port, Cv 32 |
|---|
| Pressure Rating | 232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg
Not suitable for air or gas |
|---|
| Valve Temperature Range | 32-140 °F (0 to 60 °C) |
|---|
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|
| Valve Body | PVC |
|---|
| Ball and Stem | PVC |
|---|
| Ball Seats | PTFE (Teflon) energized with EPDM seals |
|---|
| Stem Seals | Dual EPDM seals |
|---|
| Duty Cycle | 70% |
|---|
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
|---|
| Enclosure Rating | Type 4X (IP67) weatherproof |
|---|
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
|---|
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
|---|
| Manual Override | 5mm hex drive with protective cover |
|---|
| Motor Protection | Thermal overload |
|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
|---|
