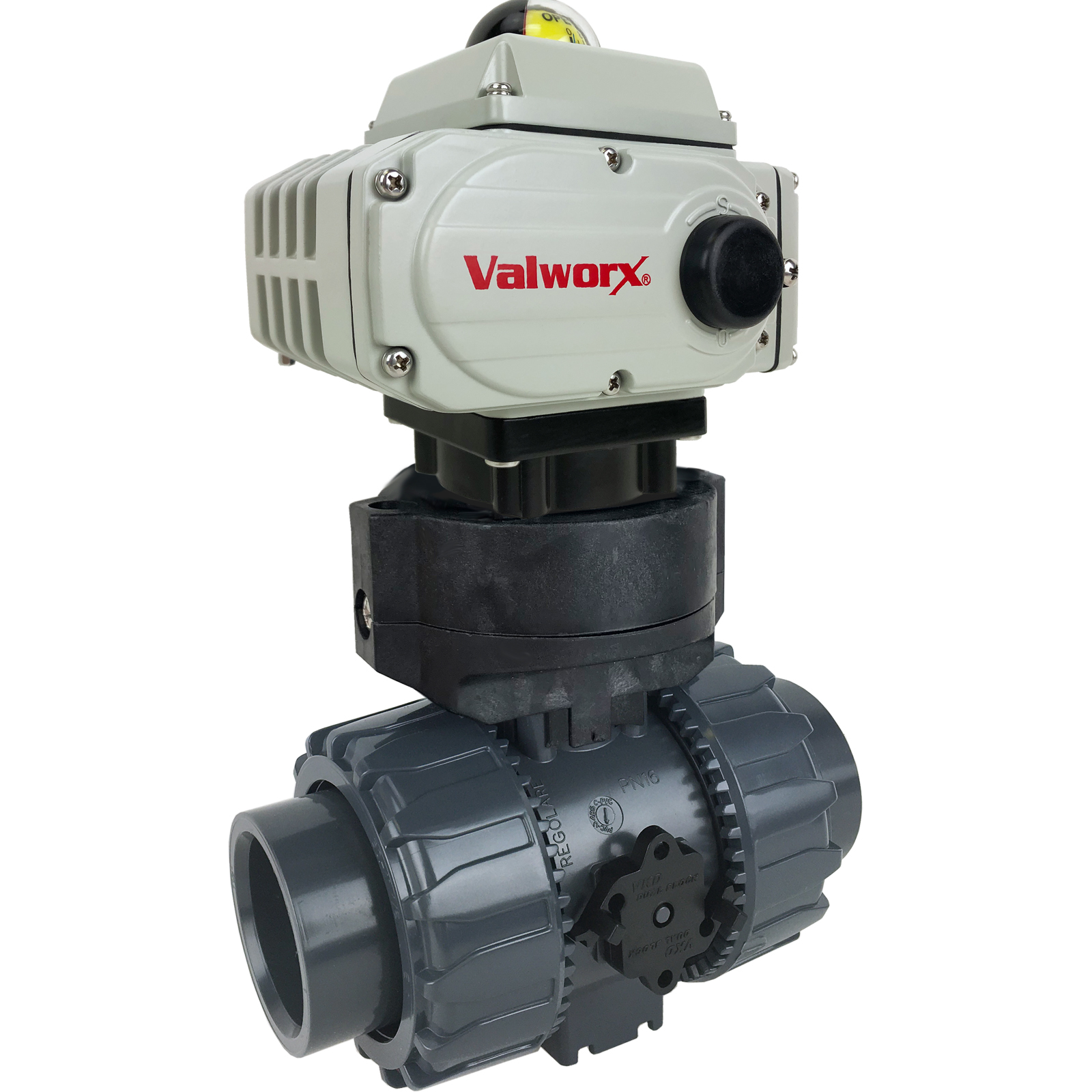

1-1/2" Electric Actuated PVC Ball Valve 110 VAC, EPS Positioner

Stock #: 565461C
Brand: Valworx
Series: 5654
List Price: $1242
Price: $993.60
Buy 3 or more for $894.24 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 565461C electric actuated PVC ball valves are typically used to control the flow of water and liquid media compatible with the materials of construction (not suitable for air or gas). Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications.

The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.

Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.

Modbus control is available as a factory-installed option. Click on the Accessories tab for details.

Ball Valve Standard Features
  • Industrial grade full port PVC ball valve
  • Tru Union with bi-directional flow
  • Union nut locking device prevents back-off
  • Energized PTFE ball seats for lower torque and extended life
  • Leak free dual stem seal design
  • Micro-adjustable ball seat carrier
  • Pressure rated 232 PSI at 73°F
  • Series 5510 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
  • Includes IPS glue sockets and NPT end connectors


  • Electric Actuator Standard Features
  • EPS-Electronic Positioner System with 4-20mA input
  • Quarter turn operation with mechanical limits
  • Rugged Type 4X weatherproof aluminum alloy housing
  • Visual valve position indicator
  • Manual override
  • Heavy duty motor with overload protection
  • Thermostatically controlled anti-condensation heater
  • Analog output signal to confirm valve position
  • Self-locking all metal gear drive, no additional brake required
  • CSA Listed per UL429 and CSA C22.2, CE marked
  • TypeElectric Actuated PVC Ball Valve- Positioner
    Voltage110 VAC 50/60Hz
    Current Rating0.27A (full load amps)
    Input Control Signal4-20mA
    Cycle Time21 seconds per 90° rotation (+/- 10% no load)
    Pipe Size1-1/2 inch (both IPS glue socket and NPT end connectors included)
    Port SizeFull Port, Cv 123
    Pressure Rating232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg
    Not suitable for air or gas
    Valve Temperature Range32-140 °F (0 to 60 °C)
    Actuator Temperature Range-13 to +131 °F (-25 to +55 °C)
    Valve BodyPVC
    Ball and StemPVC
    Ball SeatsPTFE (Teflon) energized with EPDM seals
    Stem Seals Dual EPDM seals
    Duty Cycle70%
    EnclosureAluminum alloy, polyester coating, SS fasteners
    Enclosure RatingType 4X (IP67) weatherproof
    Electrical ConnectionsTerminal strip, 1/2" NPT conduit (optional) / cable connectors (included)
    Valve Position Confirmation4-20mA output monitoring signal (same type as input signal)
    Manual Override5mm hex drive with protective cover
    Motor ProtectionThermal overload
    Anti-Condensation Heater4 watts thermostatically controlled
    • Modbus Control System
      A5618 Modbus Control Module for 561856C
      A5618 Modbus Control Module for 561856C Stock #: A5618MXX02
      Usually Ships: Same Day
      Price: $277.92
      Quantity
    • Connectors and Cables
      Conduit Adapter 1/2
      Conduit Adapter 1/2" NPT for 5618 Series Electric Actuators Stock #: 561890
      Usually Ships: Same Day
      Price: $18.40
      Buy 3 or more for $16.56 each
      Quantity
    • 7-Conductor Cable for 5618 Series Electric Actuators- 8ft
      7-Conductor Cable for 5618 Series Electric Actuators- 8ft Stock #: 588008A
      Usually Ships: Same Day
      Price: $26.80
      Buy 10 or more for $24.12 each
      Quantity
    • 7-Conductor Cable for 5618 Series Electric Actuators- 16ft
      7-Conductor Cable for 5618 Series Electric Actuators- 16ft Stock #: 588009A
      Usually Ships: Same Day
      Price: $50.40
      Buy 10 or more for $45.36 each
      Quantity
    • 7-Conductor Cable for 5618 Series Electric Actuators- 32ft
      7-Conductor Cable for 5618 Series Electric Actuators- 32ft Stock #: 588010A
      Usually Ships: Same Day
      Price: $97.60
      Buy 10 or more for $87.84 each
      Quantity
