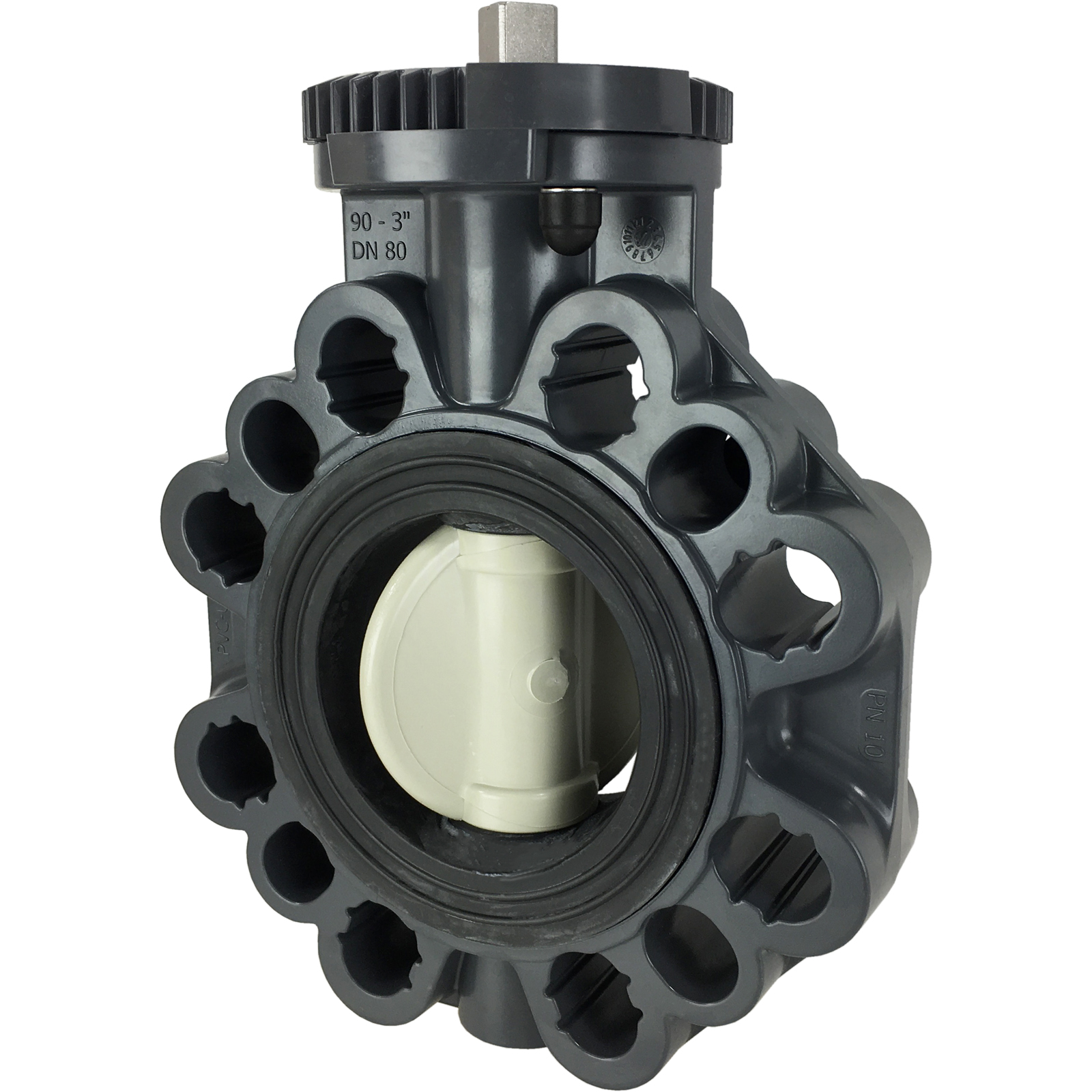

3" PVC Butterfly Valve - EPDM/Bare Stem

Stock #: 540204
Brand: Valworx
Series: 5402
List Price: $437
Price: $349.60
Buy 3 or more for $314.64 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 540204 PVC butterfly valves are used for on-off control of water and other compatible media. Ideal for industrial apps and where NSF certified construction is required for potable/drinking water. Typical applications might include potable water, general services, industrial, process, corrosive environments, commercial plumbing, food processing and irrigation. For manual operation, combine with a hand lever or gear operator (see accessories tab).

PVC butterfly valves should never be used for compressed gas applications.

  • Industrial grade PVC butterfly valve
  • Pressure rated 150 PSI at 73°F
  • Polypropylene (PP) disc
  • ANSI 150 wafer-style flange connection
  • 316 stainless steel shaft
  • EPDM primary liner
  • Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
  • Type PVC Butterfly Valve
    Disc Size 3, Cv 249
    Pressure (Max) 150 PSI at 73 °F liquid only, no air or gas (see P/T chart)
    Temperature Range 32 to 140 °F(0 to 60 °C)
    Valve Body PVC
    Disc Polyproplene (PP)
    Stem 316 Stainless Steel
    Stem Size 14mm
    ISO 5211 Mount F07
    Primary Liner EPDM
    • Gear Operator Handwheel 3-4
      Gear Operator Handwheel 3-4" PVC Butterfly Stock #: 565014
      Usually Ships: Same Day
      Price: $108.80
      Buy 3 or more for $97.92 each
    • Hand Lever 3-4
      Hand Lever 3-4" PVC Butterfly Stock #: 565024
      Usually Ships: Same Day
      Price: $16.00
      Buy 3 or more for $14.40 each

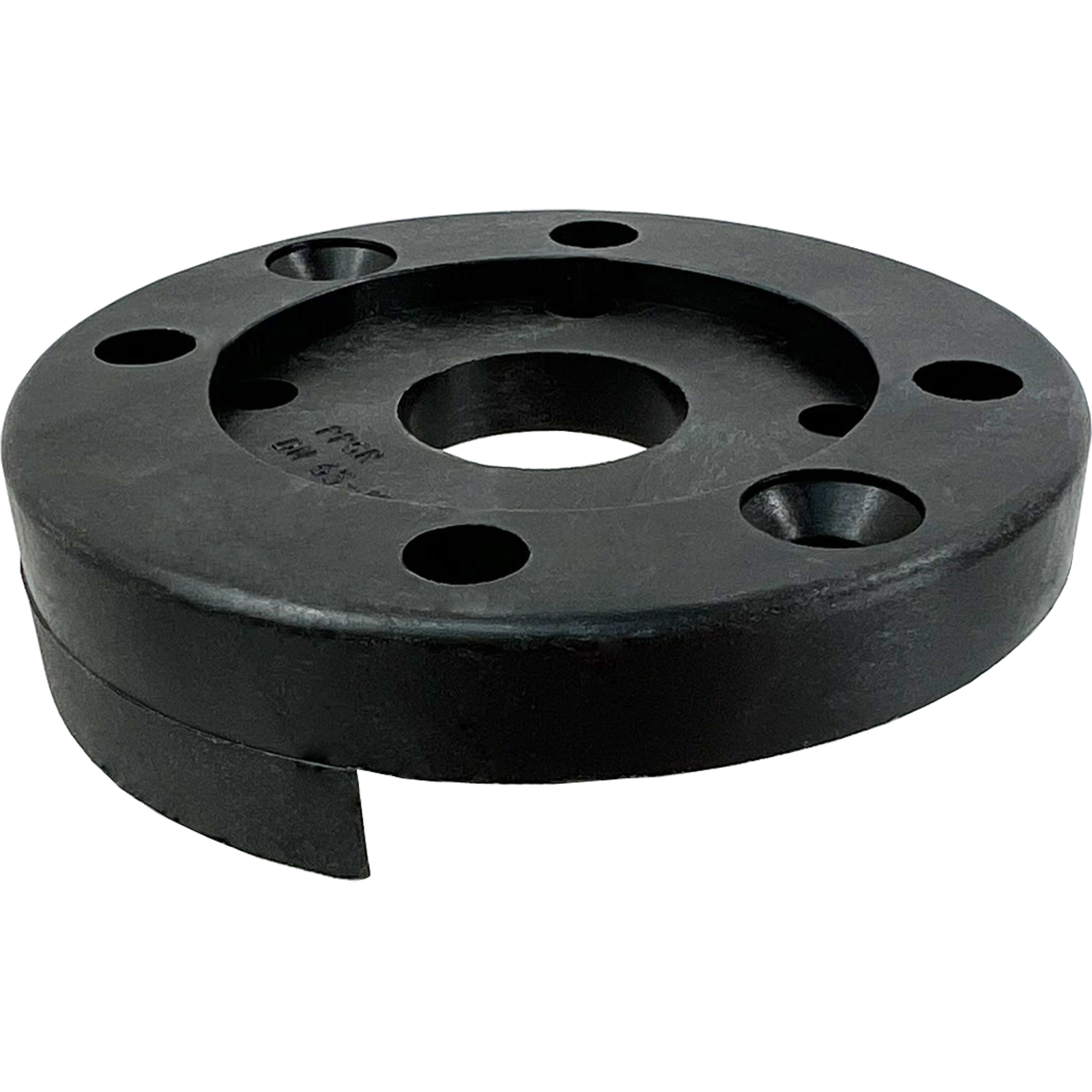

    • PVC Valve/ Actuator Mounting Adapter
      PVC Valve/ Actuator Mounting Kit, F07
      PVC Valve/ Actuator Mounting Kit, F07 Stock #: 551248
      Usually Ships: Same Day
      Price: $69.60
      Buy 10 or more for $62.64 each
