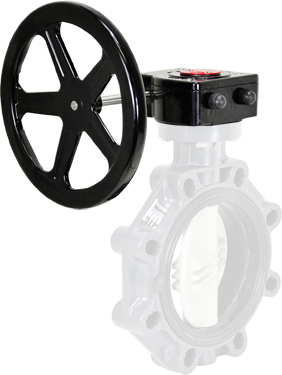

  • Gear Operator Handwheel 6
    Gear Operator Handwheel 6" PVC Butterfly
    Stock #: 565016
    Price: $108.80
    Quantity
Valworx
Free Shipping on orders over $99
Actuated Valves & Controls
Built. Tested. Shipped. Same Day.

Have Questions?
Customer Service Technical Support
| Login |
0 Items | View cart
1-800-511-0100
Home/PVC Butterfly Valves/Bare Stem PVC Butterfly Valves

6" PVC Butterfly Valve - EPDM/Bare Stem

6" PVC Butterfly Valve - EPDM/Bare Stem

Stock #:
540208
Brand:
Valworx
Series:
5402
Mfr Part #:
540208

List Price: $603.00
Price:
Buy 3 or more for $434.16 each

Usually Ships: Same Day
Free Shipping on orders over $99
  • Description
  • Specifications
  • Accessories
  • Data Sheets
  • CAD
  • Video
Valworx 540208 PVC butterfly valves are used for on-off control of water and other compatible media. Ideal for industrial apps and where NSF certified construction is required for potable/drinking water. Typical applications might include potable water, general services, industrial, process, corrosive environments, commercial plumbing, food processing and irrigation. For manual operation, combine with a hand lever or gear operator (see accessories tab).

PVC butterfly valves should never be used for compressed gas applications.

  • Industrial grade PVC butterfly valve
  • Pressure rated 150 PSI at 73°F
  • Polypropylene (PP) disc
  • ANSI 150 wafer-style flange connection
  • 316 stainless steel shaft
  • EPDM primary liner
  • Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
  • Type
    Bare Stem
    Disc Size
    6, Cv 1309
    Pressure (Max)
    150 PSI at 73 °F liquid only, no air or gas (see P/T chart)
    Temperature Range
    40 to 140 °F (see P/T chart)
    Valve Body
    PVC
    Disc
    Polyproplene (PP)
    Stem
    316 Stainless Steel
    Stem Size
    17mm
    ISO 5211 Mount
    F07
    Primary Liner
    EPDM
    • Gear Operator Handwheel 6
      Gear Operator Handwheel 6" PVC Butterfly
      Stock #: 565016
      Price: $108.80
      Buy 3 or more for $97.92 each
      Quantity
    • Hand Lever 6
      Hand Lever 6" PVC Butterfly
      Stock #: 565026
      Price: $16.80
      Buy 3 or more for $15.12 each
      Quantity
    5402 Series Product Data Sheet

    We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email sales@valworx.com to request the specific files you need. Include the stock number and any accessories with your request.



    Download CAD files
