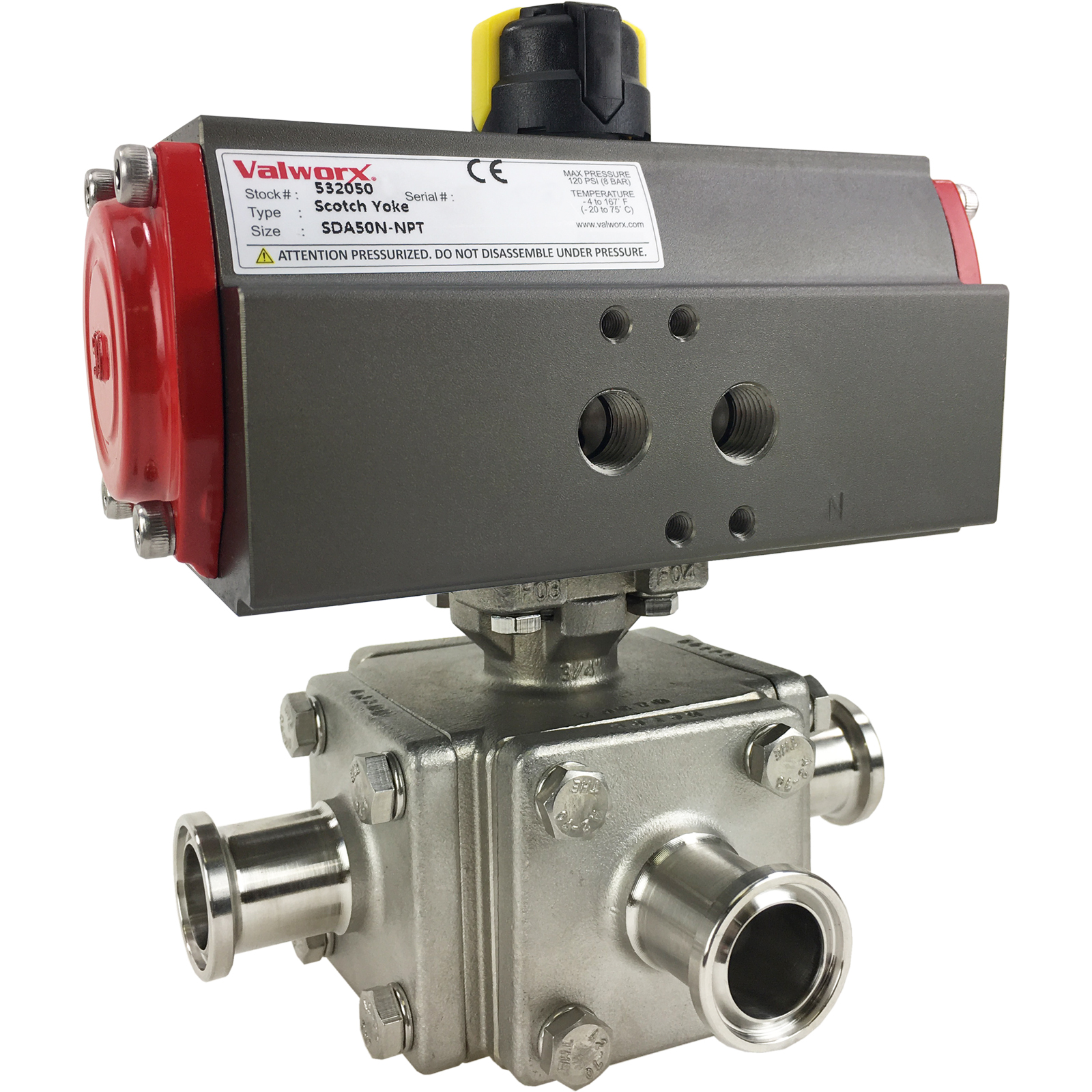

Valworx 578201A air actuated stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These L port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Highly polished internals (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn Scotch Yoke design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
Type | Air Actuated Sanitary 3 Way Ball Valve- Double Acting |
---|---|
Pipe Size ~ Tri-Clamp | 3/4" ~ 3/4" |
Port Size | Full port, 0.6 inch orifice, Cv 10.4 |
Shell Pressure (Max) | 1000 PSI WOG |
Valve Temperature Range | -4 to 356 °F (-20 to 180 °C) |
Actuator Temperature Range | -4 to 167 °F (-20 to 75 °C) |
Valve Body/Ball | ASTM 316 stainless steel |
Valve Stem | ASTM 316 stainless steel |
Internal Finish | 8- 12 Ra |
Ball Seats | Dyneon PTFE |
Cavity filler | Dyneon PTFE, encapsulated, all ports |
Stem Seals | PTFE/ Viton, live loaded |
Valve Bolts/Nuts | ASTM 304 stainless steel |
Cycle Time | Approx. 0.3 seconds per 90° rotation |
Recommended Air Pilot Pressure | 58-87 PSI |
Maximum Air Pilot Pressure | 120 PSI |
-
Price: $100.80
Buy 10 or more for $90.72 each
Quantity -
Price: $100.80
Buy 10 or more for $90.72 each
Quantity -
Price: $27.08
Buy 10 or more for $24.37 each
Quantity -
Limit SwitchPrice: $145.60
Buy 6 or more for $131.04 each
Quantity -
Digital Smart Positioner
-
Price: $1,056.40
Quantity -
High Temperature Mounting KitPrice: $85.60
Buy 6 or more for $77.04 each
Quantity -
Tri ClampPrice: $8.13
Buy 10 or more for $7.32 each
Quantity
