3" Sanitary Butterfly Valve, All Stainless Steel Spring Return, Tri-Clamp

Stock #: 574706
Brand: Valworx
Series: 5747
List Price: $1245.00
Price: $996.00
Buy 3 or more for $896.40 each
Usually Ships: Same Day
Free Shipping on orders over $99

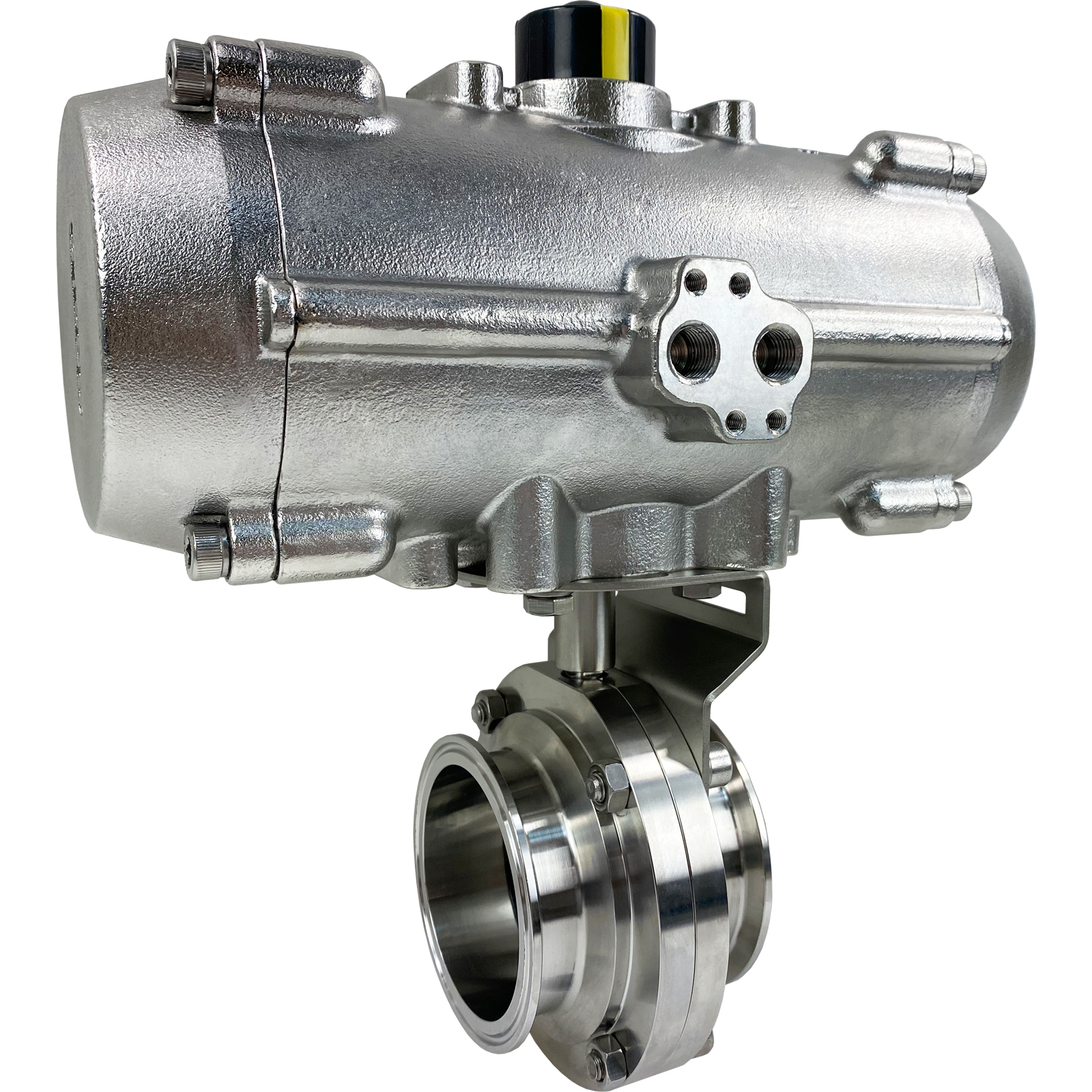

Valworx 574706 air actuated all-stainless sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve.

Butterfly Valve Standard Features
  • Forged valve bodies are machined and chamfered in a single set-up for precise fit
  • Single piece disc/stem with disc polished to mirror finish
  • 32 Ra finish on all wetted surfaces
  • EPDM seat materials meet FDA CFR 177.2600
  • All materials comply with FDA and USDA requirements
  • Standard Tri-Clamp ends for sanitary connections

  • Pneumatic Actuator Standard Features
  • 316 Stainless steel body, pistons and pinion
  • IP66 enclosure rating suitable for washdown applications
  • Extended cycle life (1 million cycles)
  • Quarter turn rack & pinion design
  • Highly visible valve position indicator
  • Dry or lubricated pilot air
  • Factory lubricated for normal life
  • Namur & ISO mounting

  • Options (see Accessories tab)
    TypeAll Stainless Air Actuated Sanitary Butterfly Valve- Spring Return
    Pipe Size ~ Tri-Clamp3" ~ 3"
    Port SizeFull port, 2.9 inch orifice, Cv 372
    Pressure (Max)140 PSI
    Valve Temperature Range-67 to 302 °F (-55 to 150 °C)
    Actuator Temperature Range-4 to 176 °F (-20 to 80 °C)
    Valve BodyASTM 316L stainless steel
    Disc/StemASTM 316L stainless steel
    Internal Finish32 Ra
    Valve SeatsEPDM
    BushingsPolypropylene
    Valve Bolts/NutsASTM 304 stainless steel
    Cycle TimeApprox. 1 second per 90° rotation
    Air Pilot Pressure80-120 PSI
