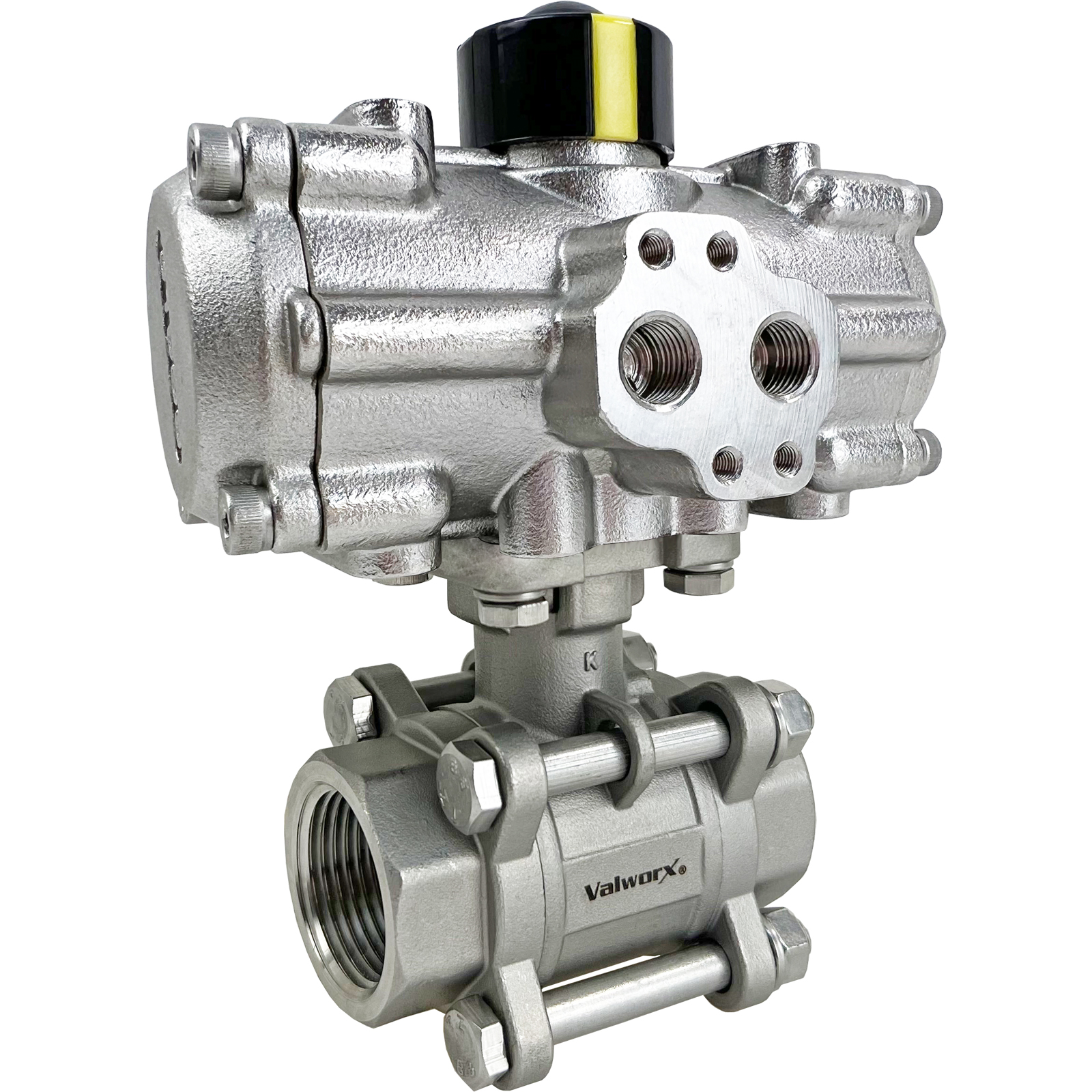

Valworx 532508 air actuated all stainless spring return ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. 316 stainless steel construction of the valve and actuator offer superior corrosion resistance. Rugged IP66 actuator enclosure suitable for washdown applications. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.
Ball Valve Standard Features
1000 PSI working pressure (see P/T chart)Direct mounting valve per ISO5211Full port for unrestricted flow316 stainless steel body, ball and stemBlow out proof stemRTFE ball seats extend cycle lifeTriple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinionIP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles)Quarter turn rack & pinion designHighly visible valve position indicatorDry or lubricated pilot airFactory lubricated for normal lifeNamur & ISO mounting
Options (see Accessories tab)
| Type | All Stainless Air Actuated 3 Piece Ball Valve- Spring Return |
|---|
| Pipe Size | 1" NPT female |
|---|
| Port Size | Full Port, Orifice 1.0 inches, Cv 55 |
|---|
| Pressure (Max) | 1000 PSI (see P/T chart),
25 PSI saturated steam with high temp kit, vacuum up to 29inHg |
|---|
| Valve Body | 316 stainless steel CF8M |
|---|
| Ball/Stem | 316 stainless steel |
|---|
| Actuator Body/Pistons/Pinion | 316 stainless steel |
|---|
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
|---|
| Ball Seats | RTFE (reinforced Teflon) |
|---|
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
|---|
| Actuator Temperature Range | -4 to 175 °F (-20 to 80 °C) |
|---|
| Cycle Time | Approx. 2 seconds open/1 second close per 90° rotation |
|---|
| Air Pilot Pressure | 80-120 PSI |
|---|
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
|---|
| Actuator Seals | NBR |
|---|
| Max Fluid Velocity | 10 feet per second |
|---|
| Enclosure Protection | IP66 Weatherproof |
|---|
