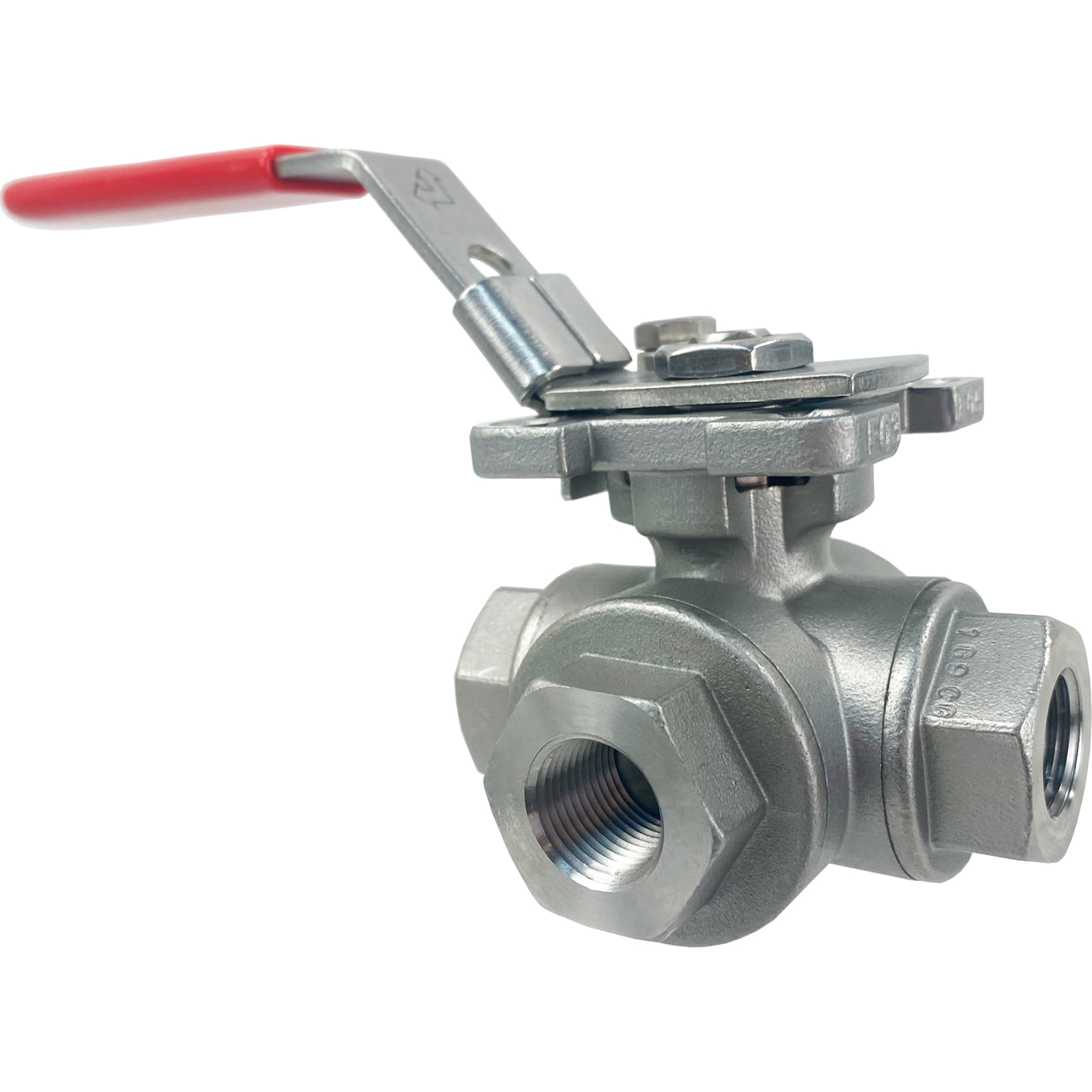

Valworx 552802A stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. These L-port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow
316 Stainless Steel Body, Ball and Stem
Four Seats Design allows for Full Pressure at Any Port
PTFE Ball Seats Extend Cycle Life and Reduce Torque
We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email firstname.lastname@example.org to request the specific files you need. Include the stock number and any accessories with your request.
