Valworx 552803C stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. These L-port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow316 Stainless Steel Body, Ball and StemFour Seats Design allows for Full Pressure at Any Port RTFE Ball Seats Extend Cycle Life and Reduce TorqueTriple PTFE/Viton Stem Seal Design, Live LoadedLatch Locking Handle (padlockable)Actuator Ready ISO5211 Direct Mounting Pad
| Type | Manual 3 Way Valve |
|---|
| Pipe Size | 3/8" NPT female |
|---|
| Port Size | Full port, 0.43 inch orifice, Cv 7.3 |
|---|
| Pressure (Max) | 1000 PSI (see P/T chart),
125 PSI saturated steam, vacuum up to 29inHg |
|---|
| Temperature Range | -4 to 392 °F (-20 to 200 °C) |
|---|
| Body/Ball | 316 stainless steel (ASTM A351 CF8M) |
|---|
| Stem | 316 stainless steel |
|---|
| Handle | 304 stainless steel with vinyl grip |
|---|
| Ball Seats | Four RTFE (reinfoced Teflon) |
|---|
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
|---|
| ISO5211 Mount | F03/F04, 9mm square stem |
|---|
| Max Fluid Velocity | 10 feet per second |
|---|
Limit Switch
Price: $158.40
Buy 3 or more for $142.56 each

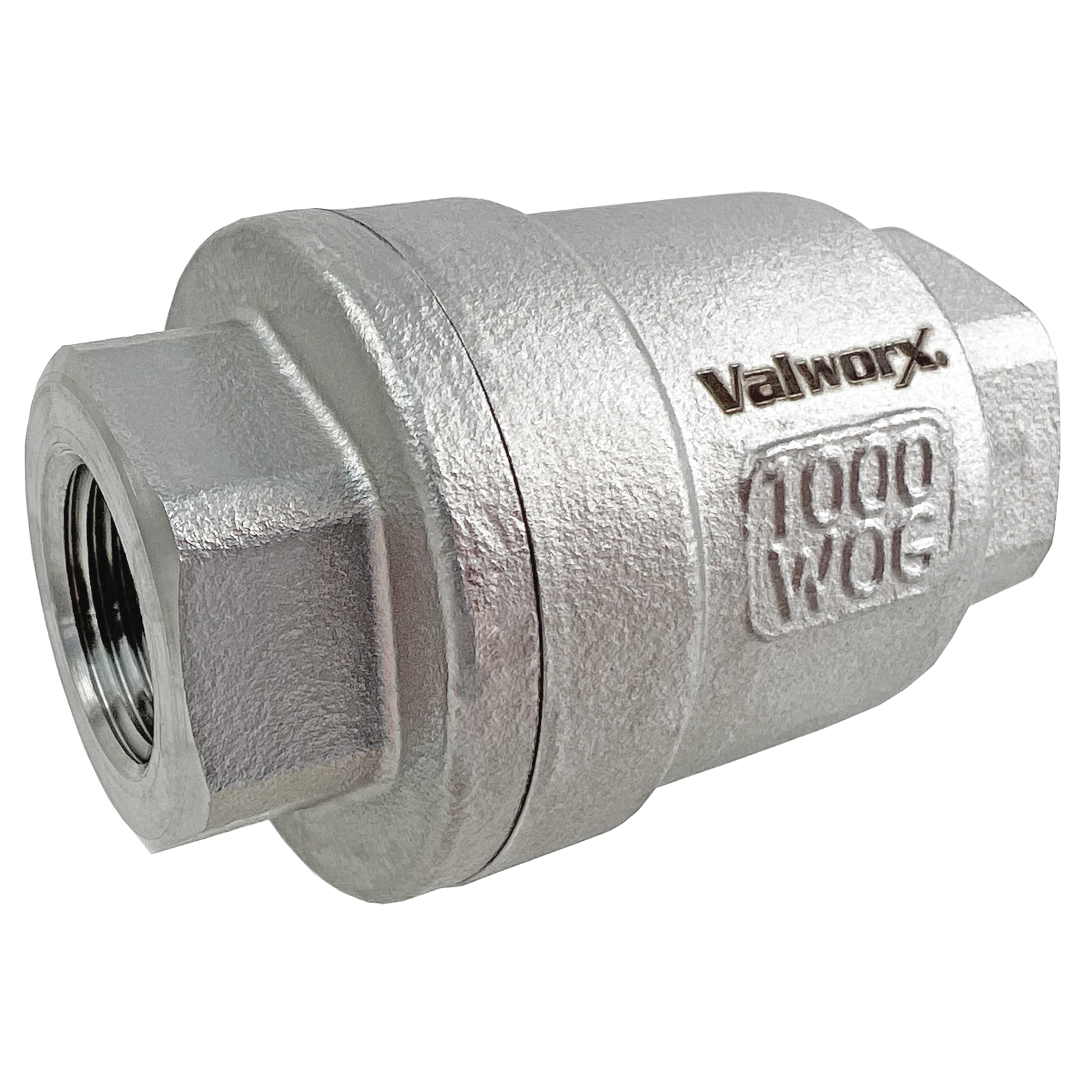

Spring Check Valve
