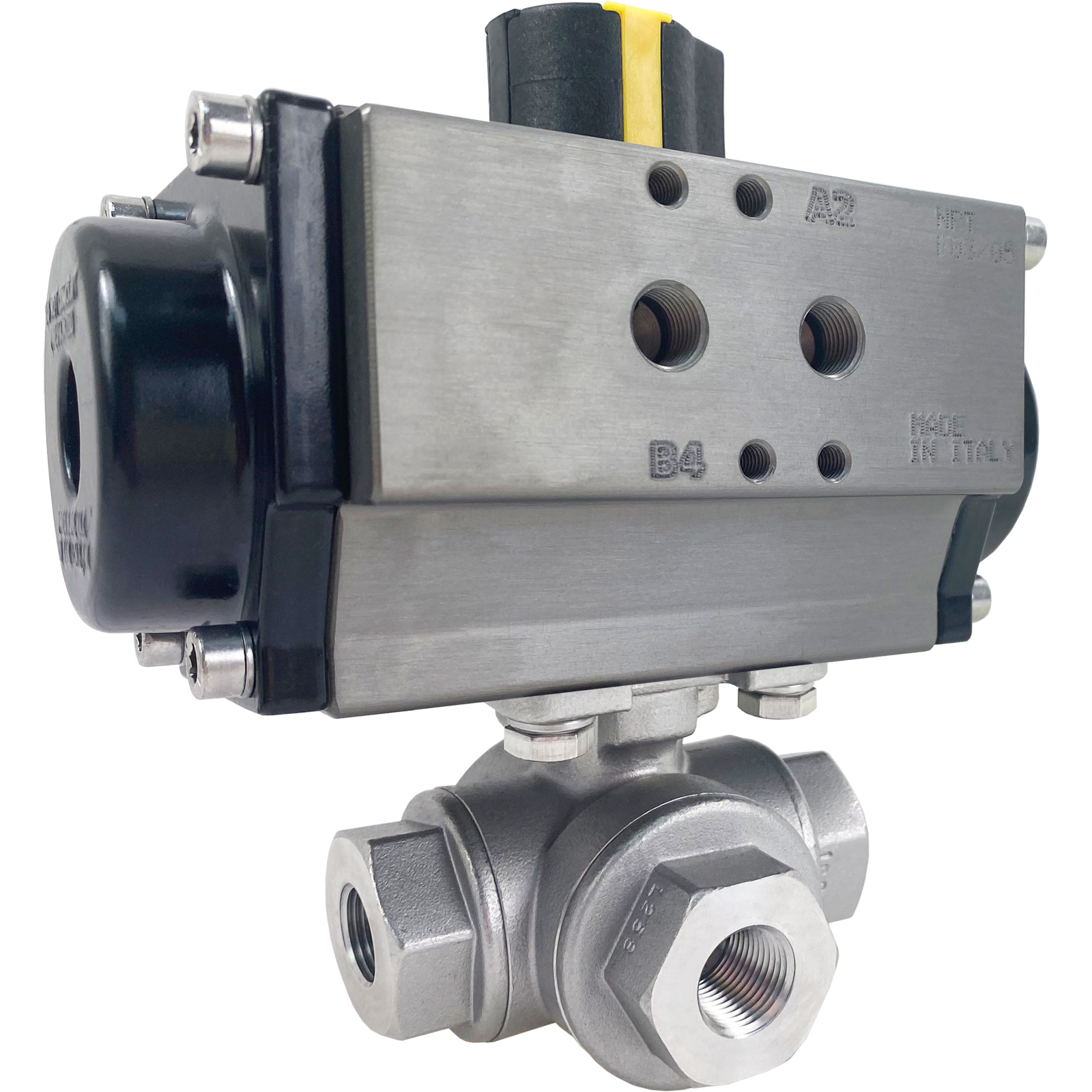

1/4" Air Actuated 3-Way SS L-Port Valve, Double Acting

Stock #: 523202E
Brand: Valworx
Series: 5232
List Price: $383
Price: $306.40
Buy 3 or more for $275.76 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 523202E stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Use as an L-port diverter valve (direct flow from center inlet port to either side outlet port 1 or 2) or as a selector valve (two separate inlet ports and one center outlet port). Double acting actuators use an air pressure signal (80-120PSI) to change the valve to position 1 or position 2. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Valve is tested per API 598, can be mounted in any orientation.

Ball Valve Standard Features
  • 1000 PSI working pressure (see P/T chart)
  • Full port design
  • 316 stainless steel body, ball and stem
  • Four ball seat design allows for full pressure at any port
  • RTFE ball seats for extended cycle life
  • Triple PTFE/Viton stem seal design, live loaded and adjustable
  • Valve direct mounts to actuator per ISO5211

  • Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Rack & pinion design
  • Highly visible valve position indicator
  • Dry or lubricated pilot air
  • Factory lubricated for normal life
  • Anodized aluminum body with epoxy-polyester covers
  • Namur & ISO mounting

  • Options (see Accessories tab)
    TypeAir Actuated 3 Way Valve- Double Acting
    Pipe Size1/4" NPT female
    Port SizeFull Port, orifice 0.43 inches, Cv 5.0
    Pressure (Max)1000 PSI see P/T chart, vacuum up to 29inHg
    Valve Body316 stainless steel CF8M
    Ball316 stainless steel
    Stem SealsPTFE (Teflon), Viton
    Ball SeatsRTFE (reinforced Teflon)
    Valve Temperature Range-4 to 392 °F (-20 to 200 °C)
    Actuator Temperature Range0 to 180 °F
    Cycle TimeApprox. 1 second per 90° rotation
    Air Pilot Pressure80-120 PSI
    Air Connections1/8" NPT (plus NAMUR pad for solenoid valve)
    Actuator SealsNBR
    Max Fluid Velocity10 feet per second
    Enclosure ProtectionIP67 Weatherproof
