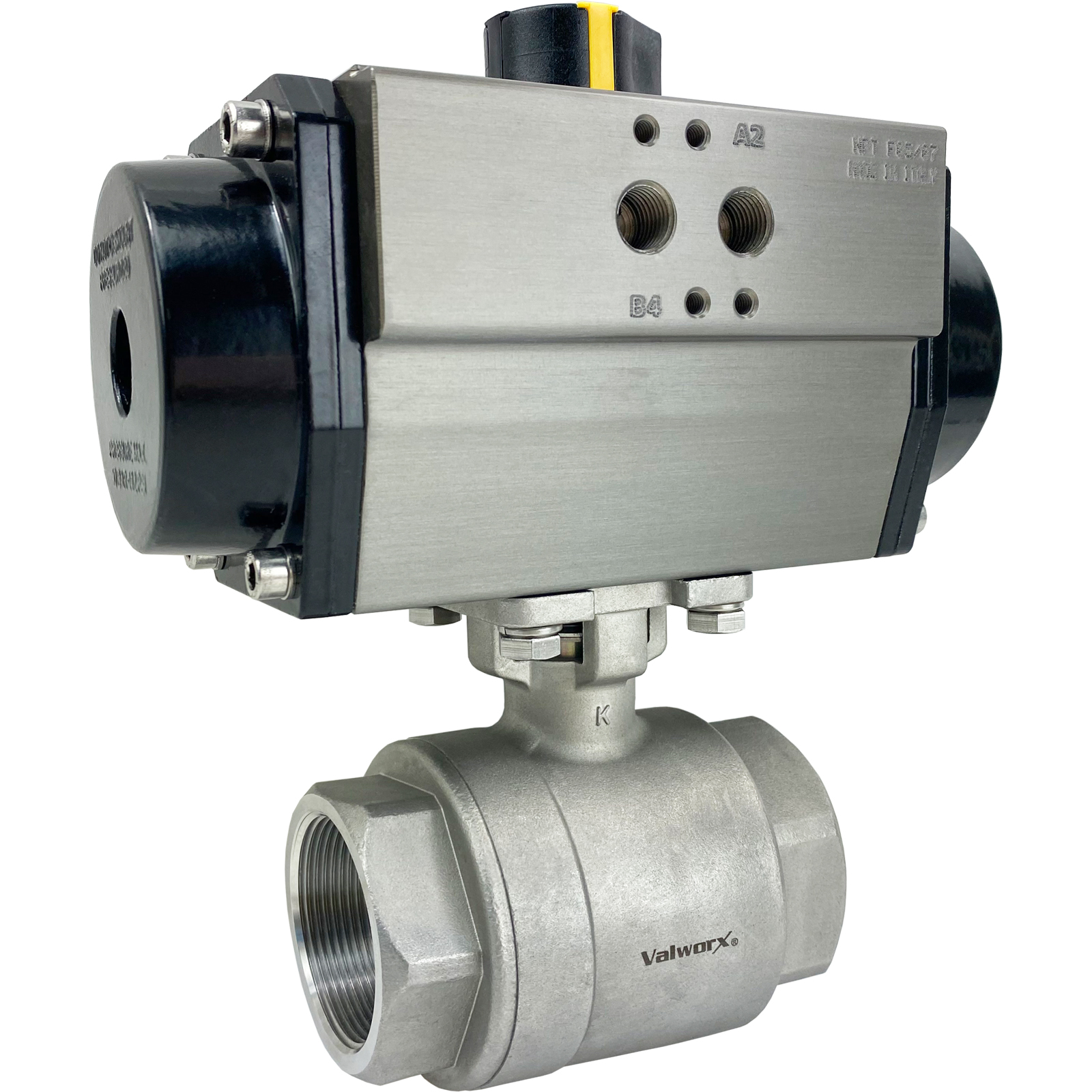

Valworx 523512C air actuated double acting stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
Type | Air Actuated 2 Way Ball Valve-Double Acting |
---|---|
Pipe Size | 1-1/2" NPT female |
Port Size | Full Port, Orifice 1.50 inches, Cv 144.2 |
Pressure (Max) | 1000 PSI see P/T chart, 25 PSI saturated steam with high temp kit, vacuum up to 29inHg |
Valve Body | 316 stainless steel CF8M |
Ball/Stem | 316 stainless steel |
Stem Seals | PTFE/ Viton |
Ball Seats | RTFE (reinforced Teflon) |
Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
Actuator Temperature Range | 0 to 180 °F (-18 to 82 °C) |
Cycle Time | Approx. 1 second per 90° rotation |
Air Pilot Pressure | 80-120 PSI |
Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
Actuator Seals | NBR |
Max Fluid Velocity | 10 feet per second |
Enclosure Protection | IP67 Weatherproof |
-
Price: $100.80
Buy 10 or more for $90.72 each
Quantity -
Price: $100.80
Buy 10 or more for $90.72 each
Quantity -
Price: $27.08
Buy 10 or more for $24.37 each
Quantity -
Limit SwitchPrice: $145.60
Buy 6 or more for $131.04 each
Quantity -
Digital Smart Positioner
-
Price: $1,056.40
Quantity -
Electro-Pneumatic PositionerPrice: $536.00
Buy 3 or more for $482.40 each
Quantity -
High Temperature Mounting KitPrice: $106.40
Buy 6 or more for $95.76 each
Quantity -
Manual Override Gear OperatorPrice: $236.80
Buy 3 or more for $213.12 each
Quantity -
Spring Check ValvePrice: $76.02
Quantity
