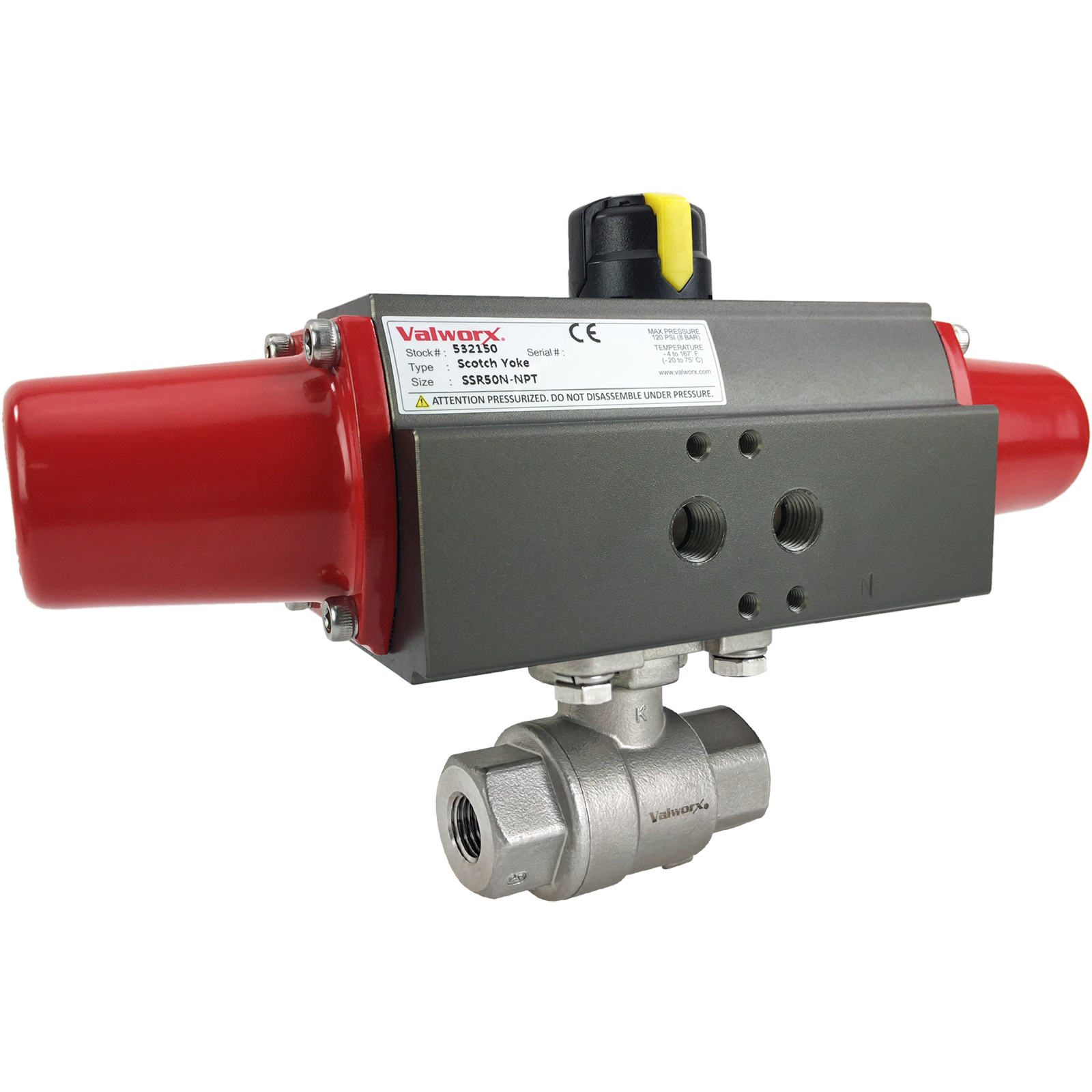

Valworx 553602A air actuated spring return stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Spring return actuators use an air pressure signal (58- 87PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.
Ball Valve Standard Features
1000 PSI working pressure (see P/T chart)Direct mounting valve per ISO5211Full port for unrestricted flow316 stainless steel body, ball and stemBlow out proof stemRTFE ball seats extend cycle lifeTriple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles)Quarter turn scotch yoke designWeatherproof type IP66 & IP68 actuatorHighly visible valve position indicatorFactory lubricated for normal lifeAnodized aluminum body with epoxy-polyester coated end coversNamur & ISO mounting
Options (see Accessories tab)
Type | Air Actuated 2 Way Ball Valve-Spring Return |
Pipe Size | 1/4" NPT female |
Port Size | Full Port, Orifice 0.45 inches, Cv 6.9 |
Pressure (Max) | 1000 PSI see P/T chart, 25 PSI saturated steam with high temp kit, vacuum up to 29inHg |
Valve Body | 316 stainless steel CF8M |
Ball/Stem | 316 stainless steel |
Stem Seals | PTFE/ Viton |
Ball Seats | RTFE (Teflon) |
Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
Actuator Temperature Range | 0 to 180 °F (-18 to 82 °C) |
Cycle Time | Approx. 0.3- 0.5 seconds per 90° rotation |
Air Pilot Pressure | 58- 87 PSI (4- 6 bar) |
Maximum Air Pilot Pressure | 120 PSI (8 bar) |
Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
Actuator Seals | NBR |
