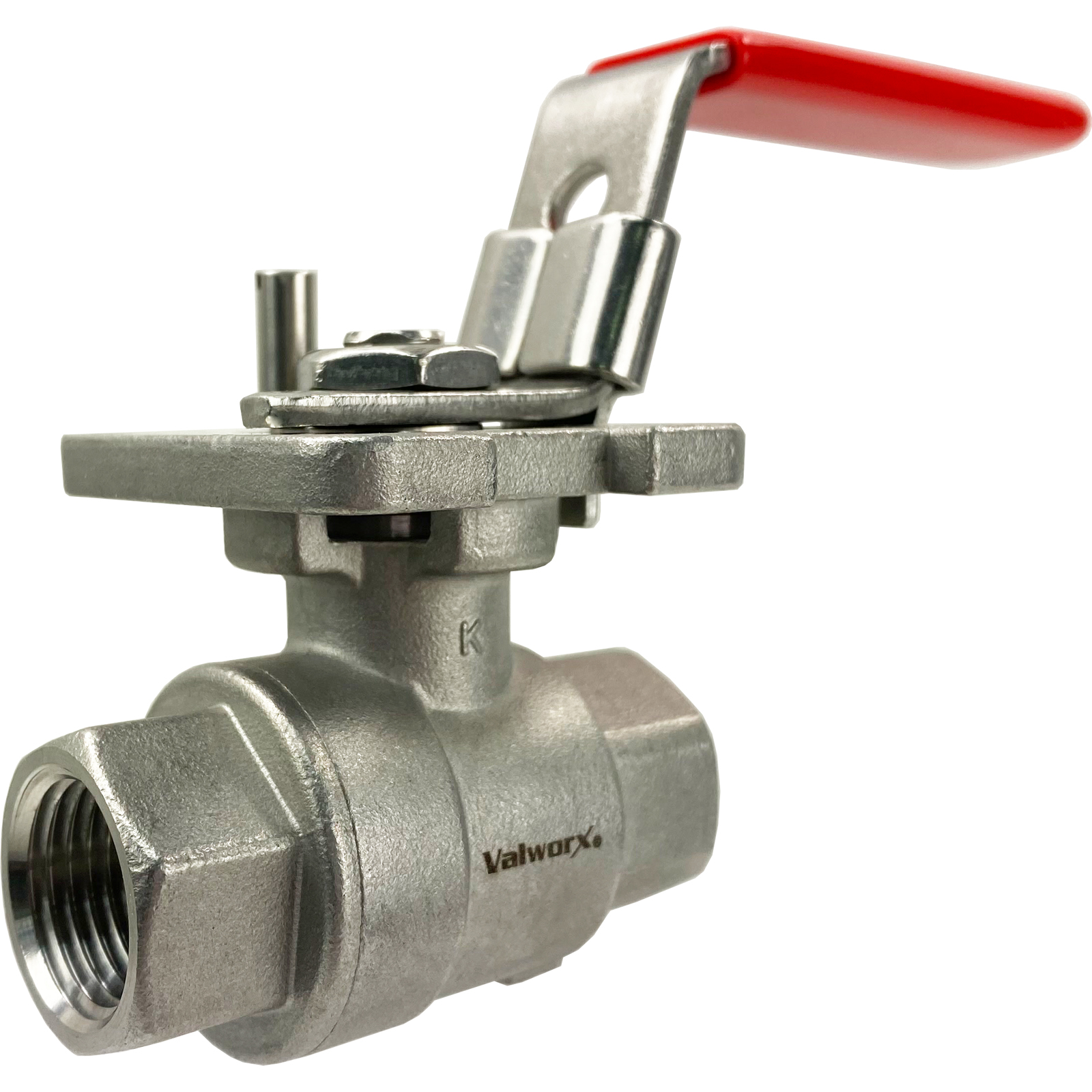

Valworx 551804 stainless steel 2-piece ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow
316 Stainless Steel Body, Ball and Stem
Blow Out Proof Stem
RTFE Ball Seats Extend Cycle Life and Reduce Torque
We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email email@example.com to request the specific files you need. Include the stock number and any accessories with your request.
