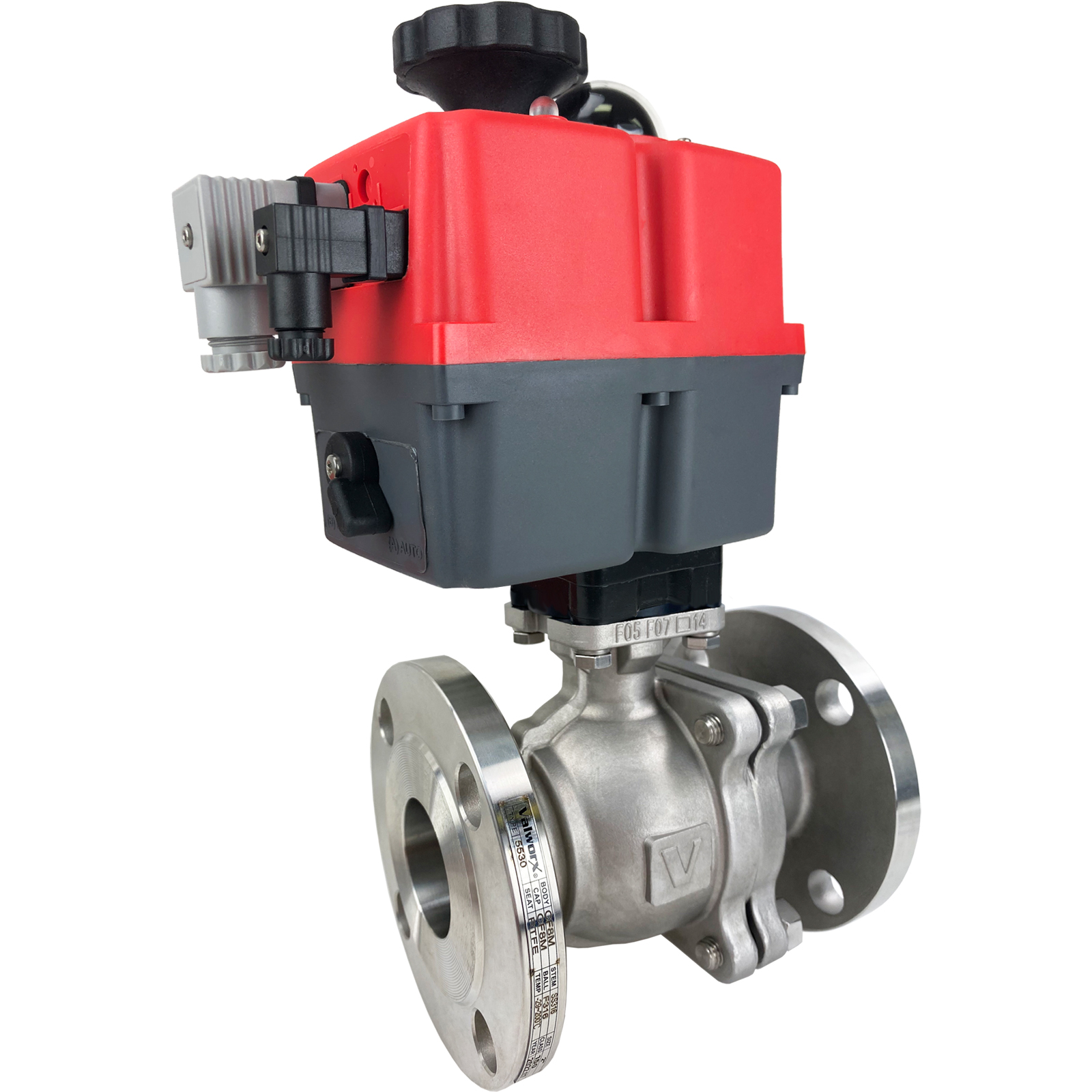

2" Electric 150# Flanged SS Ball Valve, 24-240V

Valworx 563816E electric actuated low emission 2-piece 150# flanged stainless steel ball valves for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Ball Valve Standard Features

ANSI Class 150# flanged

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Braided Graphite/Viton stem seal design, live loaded and adjustable

Electric Actuator Standard Features

Highly visible LED light gives continuous actuator status indication

Multi-voltage capable with auto-voltage sensing

Electronic torque limiter - protects against valve jams

Anti-condensation heater

Manual override with dome style visual valve position indicator

All electrical connections via external DIN plugs (included) - no need to remove cover

Two dry contact limit switches used to confirm open/closed valve position

Rugged IP67 weatherproof housing, CE marked

Options (see Accessories tab)
