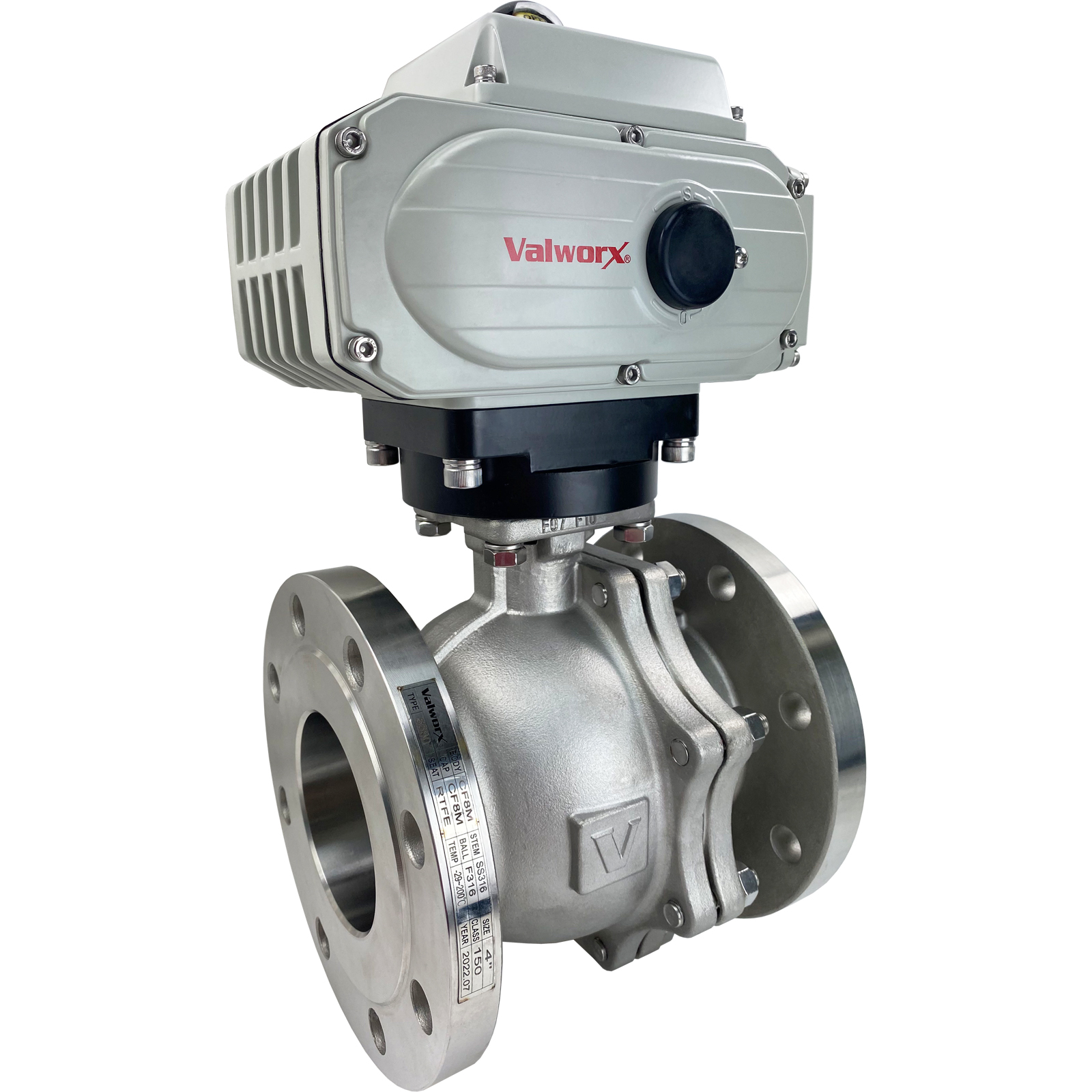

4" Electric 150# Flanged SS Ball Valve 24 VDC

Stock #: 566052C
Brand: Valworx
Series: 5660
List Price: $3300
Price: $2,640.00
Buy 3 or more for $2,376.00 each
Usually Ships: 4- 6 Weeks
Free Shipping on orders over $99
Valworx 566052C electric actuated low emission 2-piece 150# flanged stainless steel ball valves for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts betwee. The actuator function is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the ball one quarter turn. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.

High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Ball Valve Standard Features
  • 275 PSI working pressure (see P/T chart)
  • Direct mounting valve per ISO5211
  • Full port for unrestricted flow
  • 316 stainless steel body, ball and stem
  • Blow out proof stem
  • RTFE ball seats extend cycle life
  • Braided Graphite/Viton, live loaded

  • Electric Actuator Standard Features
  • Quarter turn operation with mechanical limits
  • Rugged Type 4X weatherproof aluminum alloy housing
  • Visual valve position indicator
  • Manual override
  • Heavy duty motor with overload protection
  • Thermostatically controlled anti-condensation heater
  • Two auxiliary limit switches to confirm valve position
  • Self-locking all metal gear drive, no additional brake required
  • CSA Listed per UL429 and CSA C22.2, CE mark

  • Options (see Accessories tab)
    TypeElectric Actuated Flange Valve- On/Off
    Voltage24VDC
    Current Rating3.57A (full load amps)
    Cycle Time30 seconds per 90° rotation (no load)
    Pipe Size4" ANSI 150# flanged
    Port SizeFull Port, orifice 4.00 inches, Cv 1020
    Pressure (Max)275 PSI (see P/T chart),
    25 PSI saturated steam with high temp kit, vacuum 29inHg
    Valve Temperature Range-4 to 392 °F (-20 to 200 °C)
    Actuator Temperature Range-13 to 131 °F (-25 to +55 °C)
    Valve Body316 stainless steel
    Ball316 stainless steel
    Stem Seals Braided Graphite/ FKM (Viton)
    Ball SeatsRTFE (reinforced Teflon)
    Duty Cycle70%
    EnclosureAluminum alloy, polyester painted, SS fasteners
    Enclosure RatingType 4X (IP67) weatherproof
    Electrical ConnectionsTerminal strip, 1/2" NPT conduit (optional) / cable connector (included)
    Valve Position Confirmation2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load
    Manual Override5mm Hex Drive with protective cover
    Motor ProtectionCurrent sensor
    Anti-Condensation Heater4 watts thermostatically controlled
    Low EmissionAPI 641
    Fire SafeAPI 607
    Pipeline UseAPI 608
    Stem PackingAPI 622
    Flange Face to FaceANSI B16.10 Class 150
    Flange DimensionsANSI B16.5 Class 150
    Max Fluid Velocity10 feet per second
    • Quick Close Option
      Quick Close Option- 200Nm 24 VDC
      Quick Close Option- 200Nm 24 VDC Stock #: A561871QC
      Usually Ships: 4- 6 Weeks
      Price: $176.00
      Quantity
    • Connectors and Cables
      Conduit Adapter 1/2
      Conduit Adapter 1/2" NPT for 5618 Series Electric Actuators Stock #: 561890
      Usually Ships: Same Day
      Price: $18.40
      Buy 3 or more for $16.56 each
      Quantity
    • 7-Conductor Cable for 5618 Series Electric Actuators- 8ft
      7-Conductor Cable for 5618 Series Electric Actuators- 8ft Stock #: 588008A
      Usually Ships: Same Day
      Price: $26.80
      Buy 10 or more for $24.12 each
      Quantity
    • 7-Conductor Cable for 5618 Series Electric Actuators- 16ft
      7-Conductor Cable for 5618 Series Electric Actuators- 16ft Stock #: 588009A
      Usually Ships: Same Day
      Price: $50.40
      Buy 10 or more for $45.36 each
      Quantity
    • 7-Conductor Cable for 5618 Series Electric Actuators- 32ft
      7-Conductor Cable for 5618 Series Electric Actuators- 32ft Stock #: 588010A
      Usually Ships: Same Day
      Price: $97.60
      Buy 10 or more for $87.84 each
      Quantity
    • High Temperature Mounting Kit
      High Temp/Wall Mounting Kit F07/10-17x17mm
      High Temp/Wall Mounting Kit F07/10-17x17mm Stock #: 588141
      Usually Ships: Same Day
      Price: $120.00
      Buy 6 or more for $108.00 each
      Quantity
    • Handwheels
      Hand Wheel for Manual Override 5618 Electric Actuators (100/200 Nm sizes)
      Price: $35.20
      Buy 3 or more for $31.68 each
      Quantity
