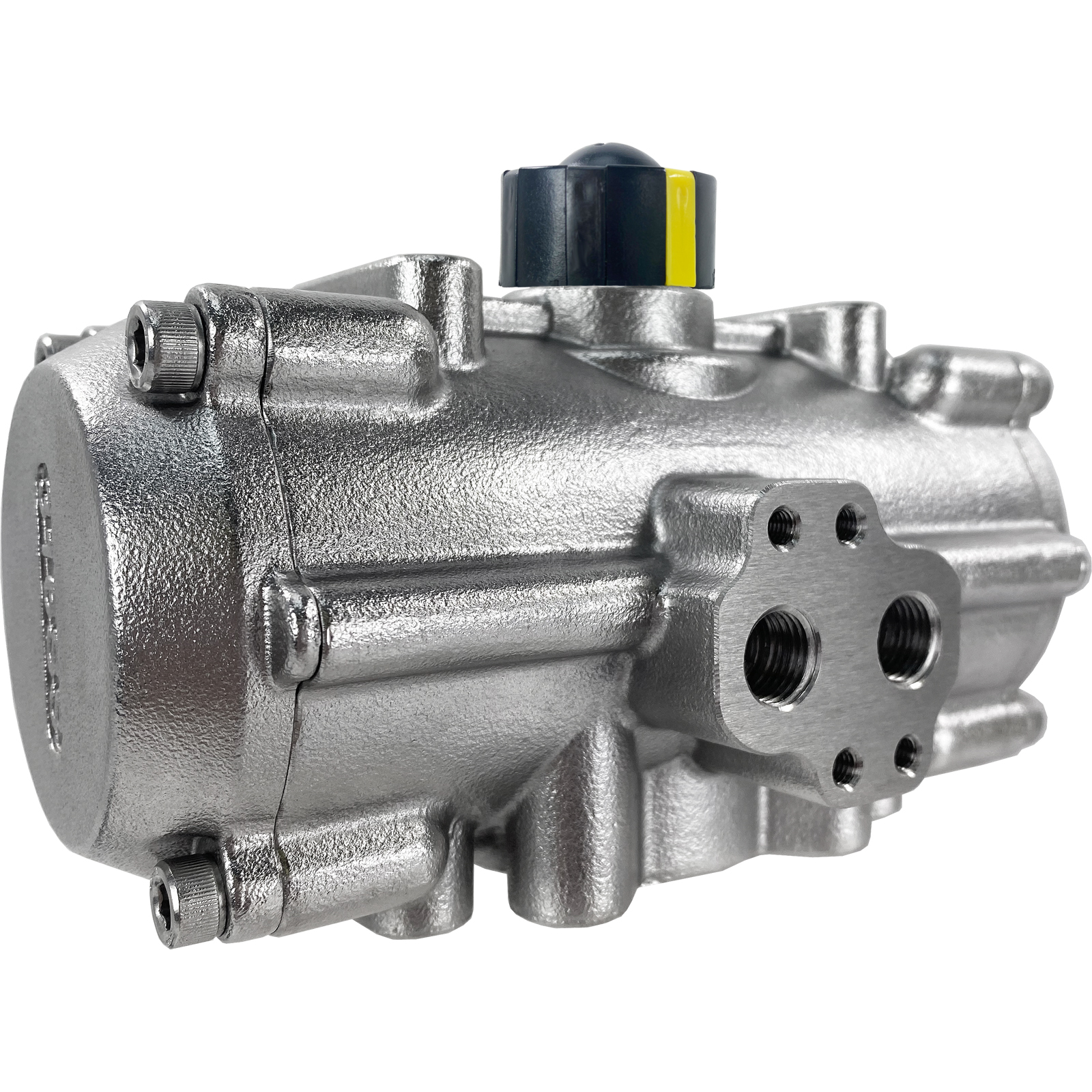

Valworx 576163 stainless steel rack and pinion air actuators are typically used to operate quarter turn ball valves and other quarter turn applications requiring high corrosion resistance and/or sanitation. Rugged IP66 construction is suitable for washdown applications. Quick and easy to install with standard ISO5211 valve mounting pad and double square female output drive. Spring return actuators use air pilot pressure to open and mechanical springs to close when the air is exhausted. The pilot air is typically controlled by a 3-way type manual or solenoid valve.
An optional pilot solenoid valve can be mounted directly to the side of the actuator using the standard Namur interface saving time, space and plumbing. The solenoid valve when supplied with the required pilot air pressure will allow electrical operation of the actuator.
Stainless Pneumatic Actuator Standard Features
Pre-lubricated and tested to minimum 1 million cycles Rugged IP66 (NEMA4/4X) enclosure suitable for washdownISO5211 valve mounting padMultiple pre-compressed spring cartridgesHighly visible valve position indicatorDry or lubricated pilot air316 Stainless steel body with electro-polished externals316 Stainless steel end covers, shaft and pistonsNamur mounting pad for direct mounted solenoid valvesVDI/VDE 3845 mounting for top mounted accessories
Options (see Accessories tab)
| Type | Spring Return Pneumatic Actuator |
|---|
| Size | SR63 |
|---|
| Torque | 177.0 inch lbs @ 80 PSI see torque chart (20.0 Nm @ 5 Bar) |
|---|
| Rotation | 90° (quarter turn) |
|---|
| Pilot Media | Filtered, dry or lubricated compressed air |
|---|
| Pilot Air Pressure | 120 PSI max. (8 Bar) |
|---|
| Pilot Air Connections | 1/4" NPT |
|---|
| Pilot Solenoid Mounting | Namur mounting pad per VDI/VDE 3845 |
|---|
| Valve Mounting ISO5211 | F05/F07 |
|---|
| Output Drive | 14mm female double square |
|---|
| Body | ASTM 316 Stainless steel |
|---|
| End Covers | ASTM 316 Stainless steel |
|---|
| Shaft | 316 Stainless steel |
|---|
| Seals | NBR |
|---|
| Position Indicator | Plastic |
|---|
| Temperature Range | -4 to 175°F (-20 to 80 °C) |
|---|
| Rotation Adjustment | +/- 5° each direction |
|---|
| Top Accessory Mounting | Namur mounting per VDI/VDE 3845 |
|---|
