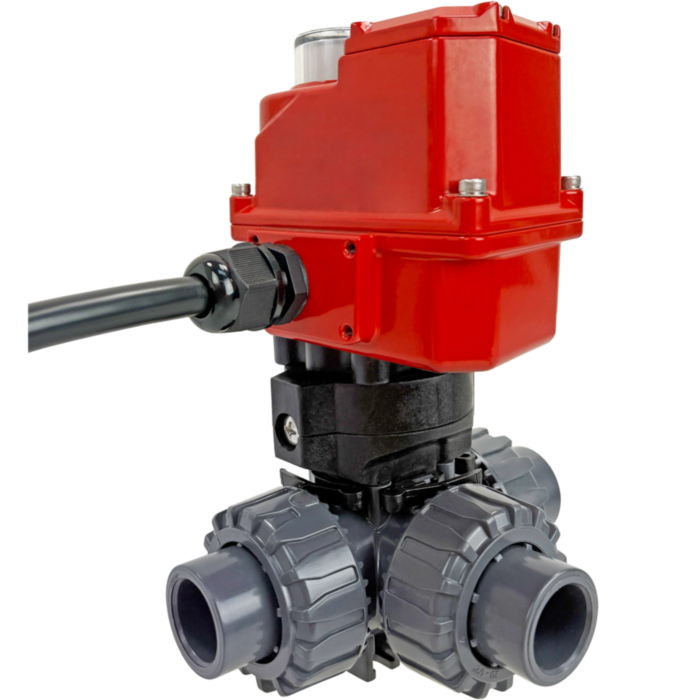

1/2" Surpass 3-way PVC T-port Ball Valve PTFE/EPDM, 110 VAC
Stock #
597604
Series
5976
List Price: $750.00
Price: $600.00
- Buy 3 for $540.00 each
Usually Ships: Same Day
Valworx 597604 electric actuated 3-way T-port PVC ball valve feature the Surpass actuator, our most advanced actuator yet. Typically used as a diverter valve to control the flow of water and other liquid media compatible with the materials of construction (not suitable for air or gas). Ideal for applications where NSF certified construction is required for potable drinking water as well as other industrial applications.
The Surpass actuator can be programmed to operate in continuous mode (a signal pulse triggers continuous operation until full open or close) or inch mode (a signal pulse runs the motor for the duration of the pulse). Default is continuous mode.
Separate motor and control circuits for easier wiring and improved safety. Programmable end-of-stroke speed control to reduce/eliminate water hammer. Local control and operating status via digital display.
Upon loss of power the actuator stays in last position. Upon restoration of power the indicator displays current position by solid green (full open), flashing white (partial open), solid blue (mid-span) or solid red (fully closed). Actuator will not operate until receipt of a new control signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard FeaturesIndustrial grade full port PVC ball valve Tru Union nuts with locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Four ball seat design allows for full pressure at any port Leak free dual stem seal design Micro-adjustable ball seat carrier Pressure rated 232 PSI at 73°F Series 5514 NSF/ANSI/CAN 61 and NSF/ANSI 372 certified valve for use with potable drinking water Includes IPS glue sockets and NPT end connectors
Surpass Electric Actuator Standard FeaturesControl and feedback cables for non-intrusive, simpler wiring Dry contact control wiring Rugged Type 4X weatherproof aluminum alloy enclosure Local operation and valve status via digital display Highly visible multi-color LED position indicator 100% duty cycle Manual override Heavy duty motor with over temp/over current/motor stall protection Thermostatically controlled anti-condensation heater Three programmable relays output 17 different status parameters (default is OPEN/CLOSE/FAULT) Self-locking gear drive with no additional brake required Standard ISO5211 multi-flange valve mounting CSA Listed per UL429 and CSA C22.2, CE mark
The Surpass actuator can be programmed to operate in continuous mode (a signal pulse triggers continuous operation until full open or close) or inch mode (a signal pulse runs the motor for the duration of the pulse). Default is continuous mode.
Separate motor and control circuits for easier wiring and improved safety. Programmable end-of-stroke speed control to reduce/eliminate water hammer. Local control and operating status via digital display.
Upon loss of power the actuator stays in last position. Upon restoration of power the indicator displays current position by solid green (full open), flashing white (partial open), solid blue (mid-span) or solid red (fully closed). Actuator will not operate until receipt of a new control signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard Features
Surpass Electric Actuator Standard Features
| Type | Electric Actuated PVC 3 Way Valve- On/Off |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 0.32A (full load amps) |
| Cycle Time | 11 seconds per 90° rotation |
| Duty Cycle | 100% |
| Pipe Size | 1/2" (both IPS glue socket and NPT end connectors included) |
| Full Port Orifice Size (inches) | 0.84 |
| Cv | 4.6 |
| Pressure Rating | 232 PSI |
| Valve Temperature Range | 32 to 140°F (0 to 60°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | PVC |
| Body/Ball Material | PVC |
| Ball | PVC |
| Stem | Stainless Steel |
| Ball Seat Material | PTFE/ EPDM |
| Stem Seal Material | EPDM |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Prewired cable, 10 conductors 1 meter (3.2 feet) |
| Valve Position Confirmation | 3 x programmable relays rated 0.8A@110VAC, 1A@30VDC |
| Input Control Signal | Dry Contact |
| Valve Position Indicator | LED Dome Indicator R/Y/G/Bl/White Close/Fault/Open/Mid/End of Stroke |
| Operating Mode | Inching or continuous |
| Speed Control | Programmable |
| Manual Override | 8mm Hex Wrench |
| Motor Protection | Over temp/Over current/Motor stall |
| Anti-Condensation Heater | Thermostatically controlled |
| Max Fluid Velocity | 5 feet per second |
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
-
