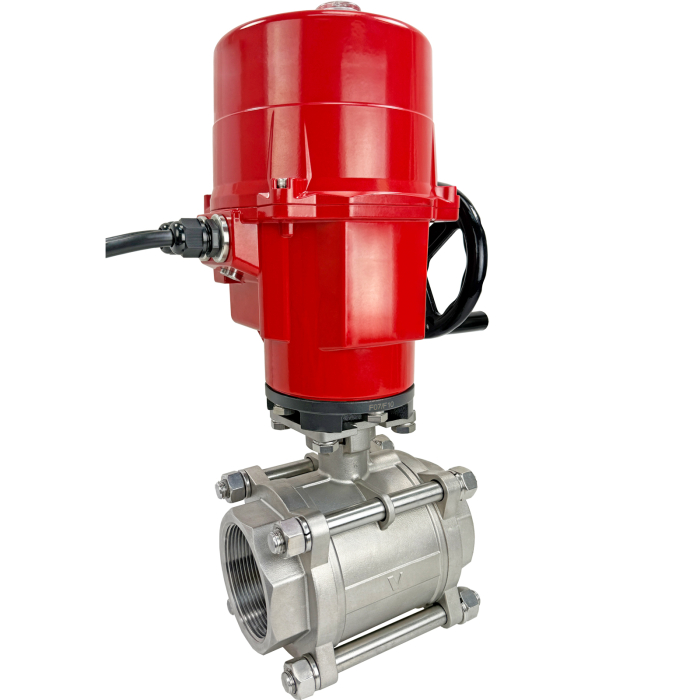

3" Surpass 3 pc SS Ball Valve, 110 VAC
Stock #
591418
Series
5914
List Price: $2,346.00
Price: $1,876.80
- Buy 3 for $1,689.12 each
| Type | Electric Actuated 3 Piece Ball Valve- On/Off |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 2.2A (full load amps) |
| Cycle Time | 15 seconds per 90° rotation |
| Duty Cycle | 100% |
| Full Port Orifice Size (inches) | 3.15 |
| Cv | 454.0 |
| Pressure Rating | 800 PSI (see P/T chart), vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -13 to 149°F (-20 to 65°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections- Motor and Control | 6-conductor cable- 1 meter |
| Electrical Connections- Feedback | 4-conductor cable- 1 meter |
| Valve Position Confirmation | 3 x programmable relays rated 0.8A@110VAC, 1A@30VDC |
| Input Control Signal | Dry Contact |
| Valve Position Indicator | LED Dome Indicator R/Y/G/Bl/White Close/Fault/Open/Mid/End of Stroke |
| Manual Override | Handwheel |
| Motor Protection | Over temp/Over current/Motor stall |
| Anti-Condensation Heater | Thermostatically controlled |
| Max Fluid Velocity | 10 feet per second |
-
