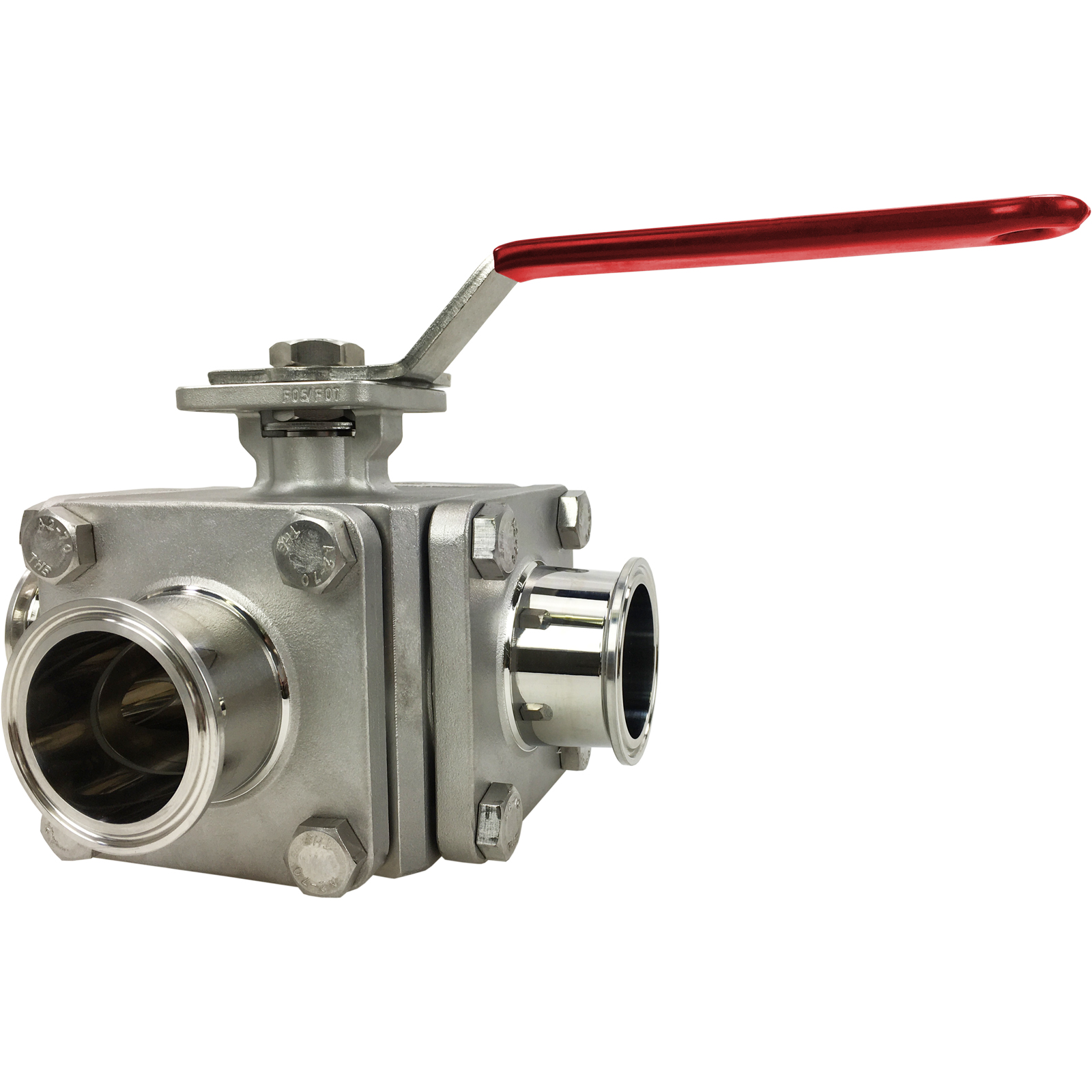

Valworx 573104 stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where 3-A sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These L port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Highly polished internals (8- 12 Ra finish) and virgin PTFE ball seats are standard. Easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Full Port for Unrestricted Flow
8- 12 Ra finish on all internal surfaces
Virgin PTFE ball seats and cavity fillers
All materials comply with FDA, USDA and 3-A requirements
We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email firstname.lastname@example.org to request the specific files you need. Include the stock number and any accessories with your request.
