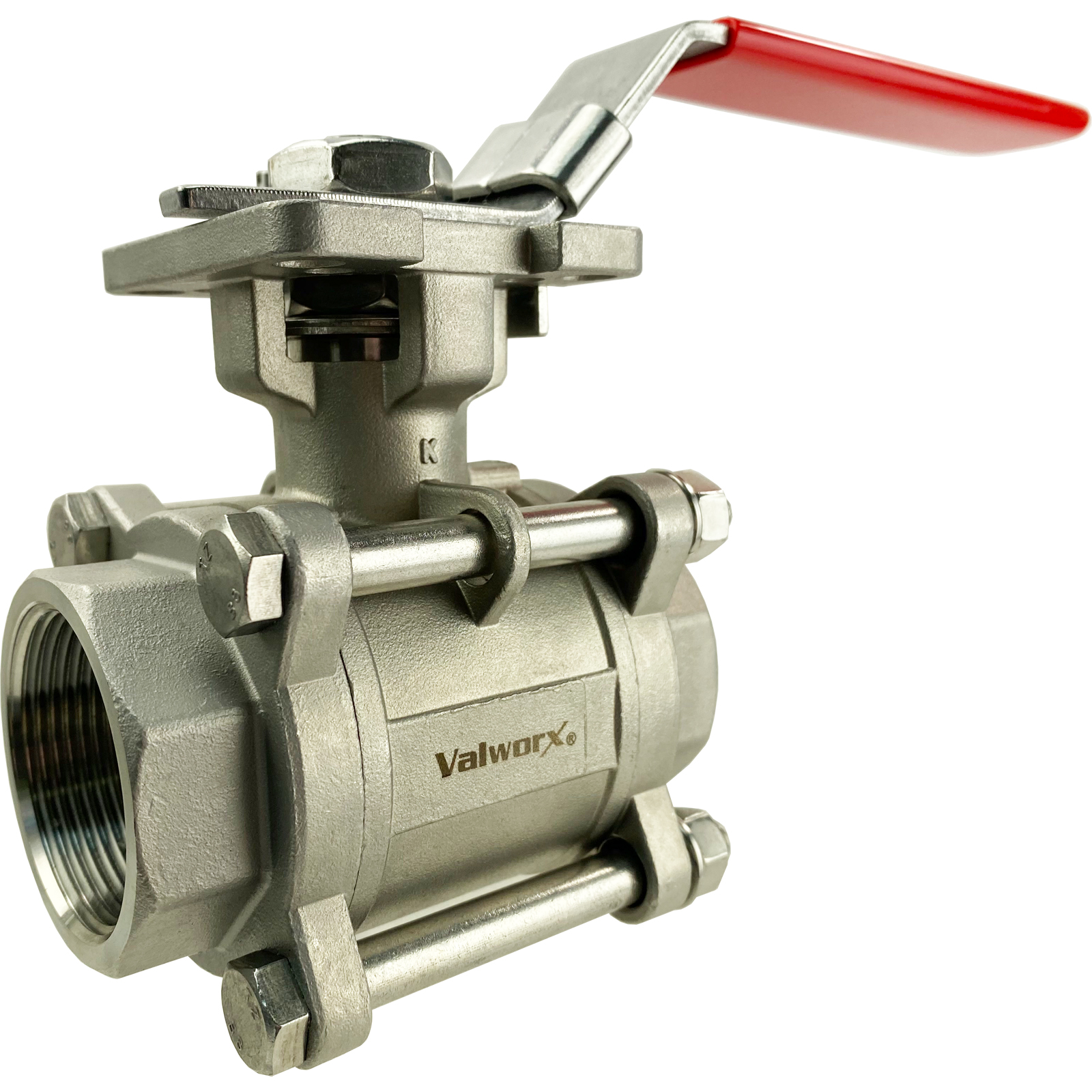

Valworx 551512C stainless steel 3-piece ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This ensures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow316 Stainless Steel Body, Ball and StemBlow Out Proof StemRTFE Ball Seats Extend Cycle Life and Reduce TorqueTriple PTFE/Viton Stem Seal Design, Live LoadedLatch Locking Handle (Padlockable)Actuator Ready ISO5211 Direct Mounting Pad
Type | Manual 3 Piece Ball Valve |
Pipe Size | 1-1/2" NPT female |
Port Size | Full port, 1.50 inch orifice,Cv 144.2 |
Pressure (Max) | 1000 PSI (see P/T chart), 125 PSI saturated steam, vacuum service to 29" Hg |
Temperature Range | -4 to 392 °F (-20 to 200 °C) |
Body/Ball | 316 stainless steel (ASTM A351 CF8M) |
Stem | 316 stainless steel |
Handle | 304 stainless steel with vinyl grip |
Ball Seats | RTFE (reinforced Teflon) |
Stem Seals | RTFE/ Viton (live loaded and adjustable) |
Bolts/Nuts | 304 stainless steel |
ISO5211 Mount | F05/F07, 14mm square stem |
Max Fluid Velocity | 10 feet per second |
