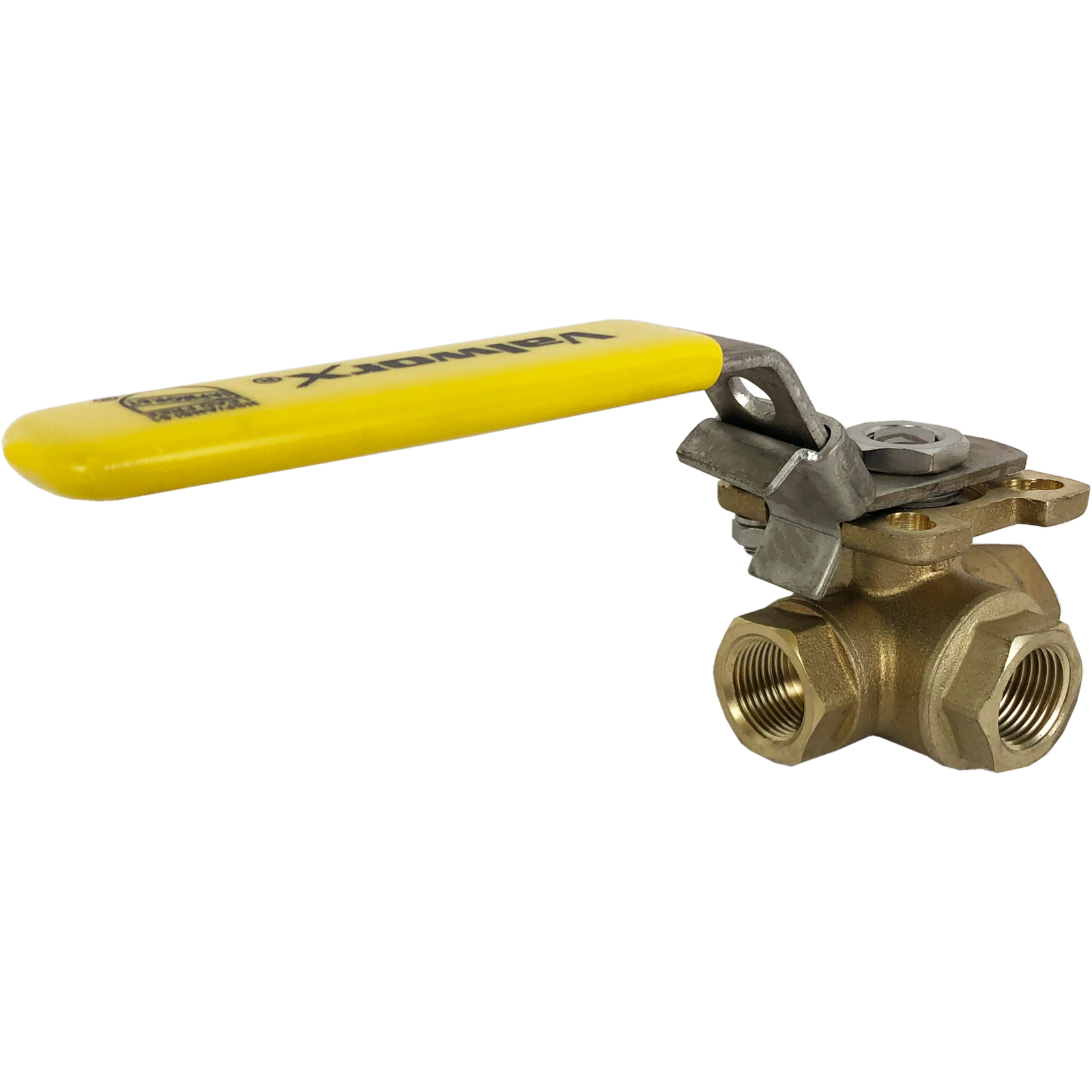

Valworx 536803 Full Port 3-way lead free brass ball valves with L-flow path are designed for use with air, oil, water and other media compatible with the materials of construction. Ideal where lead free and NSF approved construction are required for potable drinking water or other general industrial applications. Operates as either a diverter or selector valve due to the unique energized four ball seat design allowing full pressure at any port. Valves can be manually operated with stainless steel lever or direct mounted to air or electric actuators using the standard ISO5211 mounting pad. Turning the valve one quarter turn rotates the ball and changes the flow path from position 1 to position 2. Latch locking device allows for pad locking the valve in either position 1 or 2.
High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design. When automating the valve, lower operating torque equates to the use of a smaller size actuator, which in turn leads to a smaller profile and a less expensive package.
Environmentally friendly lead free brass construction Full Port for unrestricted flow 316 stainless steel ball and stem Blow out proof stem Energized PTFE ball seats for extended cycle life and reduced torque and reduce torque Leak free triple PTFE/Viton stem seal design Latch locking handle (padlockable) Actuator ready ISO5211 direct mounting pad Certified per NSF372 and NSF61 for use with potable/drinking water
High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design. When automating the valve, lower operating torque equates to the use of a smaller size actuator, which in turn leads to a smaller profile and a less expensive package.
| Type | Manual 3 Way Ball Valve |
|---|---|
| Pipe Size | 3/8" NPT female |
| Port Size | Full Port, orifice 0.39 inches, Cv 3.5 |
| Pressure Rating | 400 PSI CWP non-shock (see P/T chart), 100 PSI saturated steam, Vacuum service to 29"Hg |
| Handle | Stainless steel with vinyl grip |
| Valve Body | Lead Free Brass C69300 |
| Ball and Stem | 316 Stainless steel |
| Ball Seats | PTFE (Teflon) energized with FKM (viton) |
| Stem Seals | PTFE (Teflon) with dual FKM (viton) seals |
| Temperature Range | 0 to 344ºF (-20 to 173ºC) |
| Break Torque | 52 inch lbs (0 PSI, 68ºF), 6Nm (0 bar, 20ºC) |
| ISO5211 Mount | F03/F04, 9mm square stem |
| Max Fluid Velocity | 10 feet per second |
-
Limit Switch
Price: $158.40
Buy 6 or more for $142.56 each
5368/5369 Series Product Data Sheet IAPMO Certification to NSF/ANSI 61 Potable Drinking Water IAPMO Certification to NSF/ANSI 372 Lead FreeWe provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email sales@valworx.com to request the specific files you need. Include the stock number and any accessories with your request.
