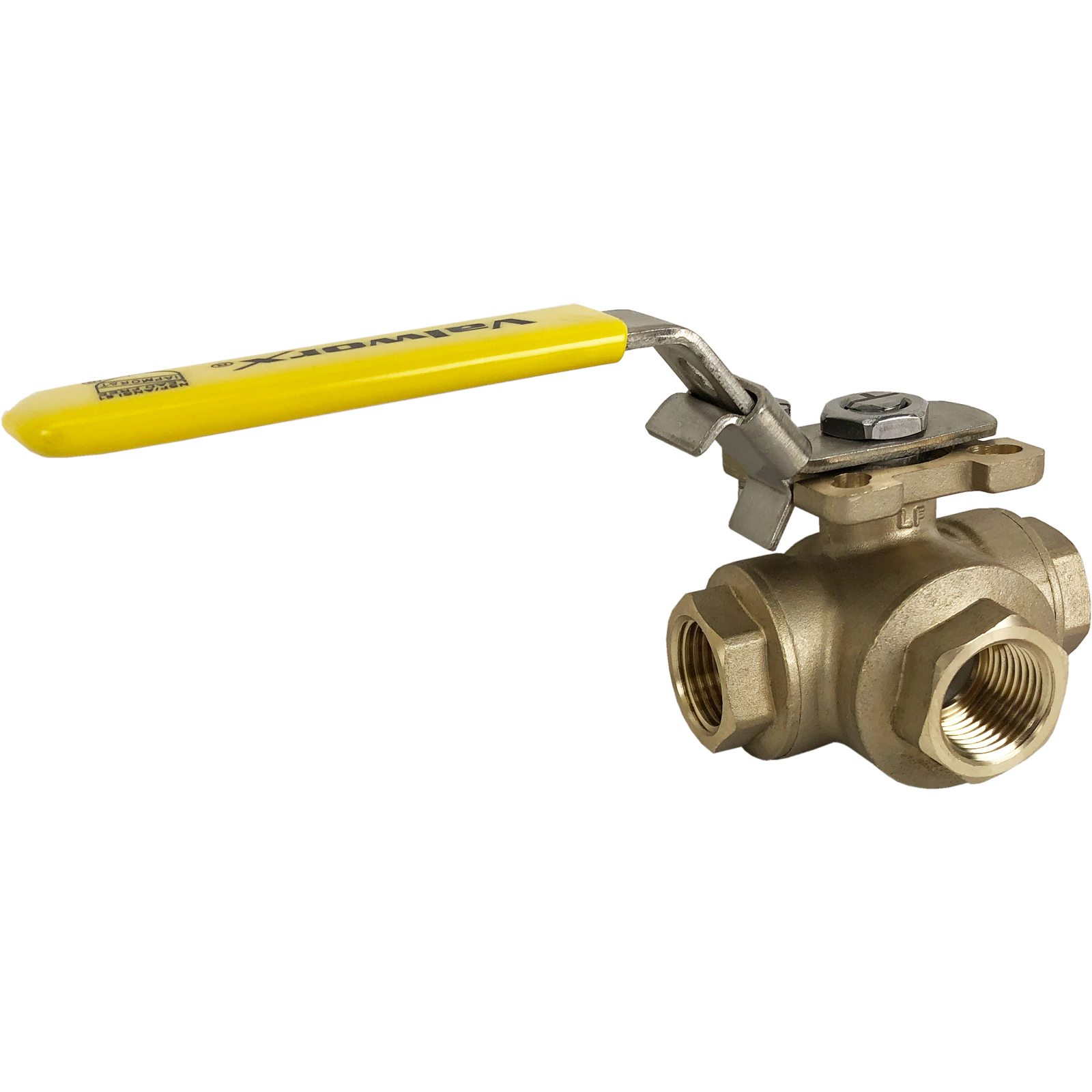

1" 3-Way Brass Ball Valve T-Full Port

Stock #: 536908
Series: 5369
List Price: $159.55
Price: $127.64
Buy 3 or more for $114.88 each
Usually Ships: Same Day
-
+
Valworx 536908 Full Port 3-way lead free brass ball valves with T-flow path are designed for use with air, oil, water and other media compatible with the materials of construction. Ideal where lead free and NSF approved construction are required for potable drinking water or other general industrial applications. Functions as a diverter or mixing valve due to unique energized four ball seat design allowing full pressure at any port. Valves can be manually operated with stainless steel lever or direct mounted to air or electric actuators using the standard ISO5211 mounting pad. Rotating the valve one quarter turn changes the flow path from position 1 to position 2. Standard factory set T2 flow path can be easily changed in the field to alternate T1, T3 or T4. Latch locking device allows for pad locking the valve in either position.

High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design. When automating the valve, lower operating torque equates to the use of a smaller size actuator, which in turn leads to a smaller profile and a less expensive package.

  • Environmentally friendly lead free brass construction
  • Full Port for unrestricted flow
  • 316 stainless steel ball and stem
  • Blow out proof stem
  • Energized PTFE ball seats for extended cycle life and reduced torque and reduce torque
  • Leak free triple PTFE/Viton stem seal design
  • Latch locking handle (padlockable)
  • Actuator ready ISO5211 direct mounting pad
  • Certified per NSF372 and NSF61 for use with potable/drinking water
  • TypeManual 3 Way Brass Valve
    Pipe Size1" NPT female
    Port SizeFull Port, orifice 1.0 inches, Cv 16
    Pressure Rating400 PSI CWP non-shock (see P/T chart),
    100 PSI saturated steam, Vacuum service to 29"Hg
    HandleStainless steel with vinyl grip
    Valve BodyLead Free Brass C69300
    Ball and Stem316 Stainless steel
    Ball SeatsPTFE (Teflon) energized with FKM (viton)
    Stem SealsPTFE (Teflon) with dual FKM (viton) seals
    Temperature Range0 to 344ºF (-20 to 173ºC)
    Break Torque150 inch lbs (0 PSI, 68ºF), 17 Nm (0 bar, 20ºC)
    ISO5211 MountF04/F05, 11mm square stem
    Max Fluid Velocity10 feet per second
    Limit Switch
    Manual Limit Switch F03/F05 11mm Stem
    Manual Limit Switch F03/F05 11mm Stem Stock #: 529914
    Usually Ships: Same Day
    Price: $158.40

    Buy 6 or more for $142.56 each
