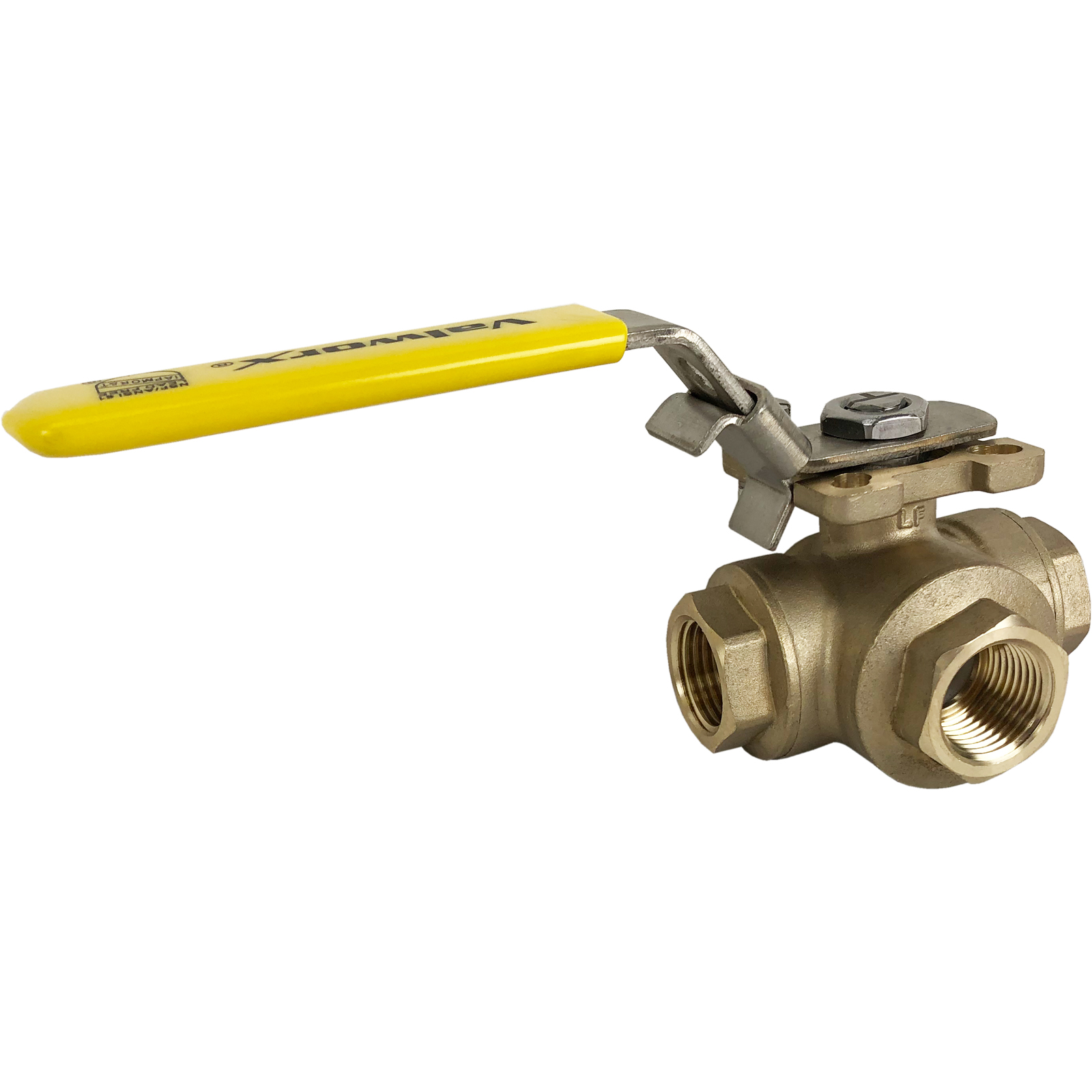

High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design. When automating the valve, lower operating torque equates to the use of a smaller size actuator, which in turn leads to a smaller profile and a less expensive package.
|Pipe Size||3/4" NPT female|
|Port Size||Full Port, orifice 0.75 inches, Cv 10|
|Pressure Rating||400 PSI CWP non-shock (see P/T chart)|
Vacuum service to 29"Hg, Steam Service 100PSI
|Handle||Stainless steel with vinyl grip|
|Valve Body||Lead Free Brass C69300|
|Ball and Stem||316 Stainless steel|
|Ball Seats||PTFE (Teflon) energized with FKM (viton)|
|Stem Seals||PTFE (Teflon) with dual FKM (viton) seals|
|Temperature Range||0 to 344ºF (-20 to 173ºC)|
|Break Torque||90 inch lbs (0 PSI, 68ºF), 10 Nm (0 bar, 20ºC)|
|ISO5211 Mount||F04/F05, 11mm square stem|
|Max Fluid Velocity||10 feet per second|
Limit SwitchManual Limit Switch F03/F05 11mm Stem Stock #: 529914Price: $136.00
Buy 6 or more for $122.40 each
We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email email@example.com to request the specific files you need. Include the stock number and any accessories with your request.
