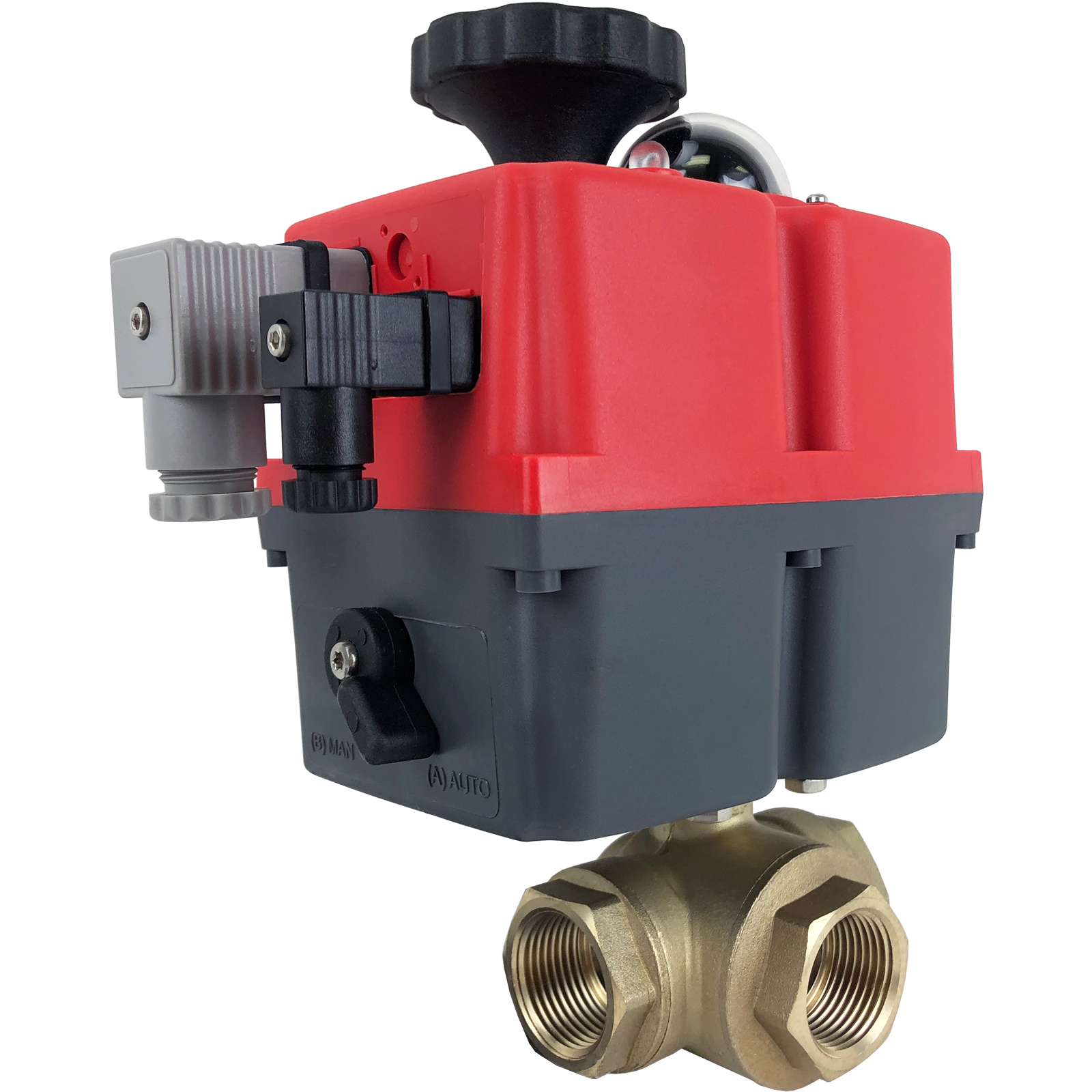

1" Electric 3-way Brass L-Diverter Valve 24-240V

Stock #: 568208E
Brand: Valworx
Series: 5682
List Price: $622
Price: $497.60
Buy 3 or more for $447.84 each
Usually Ships: Same Day
Free Shipping on orders over $99
Valworx 568208E electric actuated 3-way L-port lead free ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF approved construction are required for potable drinking water as well as other industrial applications. These FULL PORT valves can be used as either a diverter valve or selector valve. There is no flow shutoff position with this type valve. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Anti-condensation heater will help protect actuator against damage caused by condensation. Two limit switches are provided to confirm valve position. Manual override can be used to operate valve during setup or with loss of electrical power.

High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Advantages of electric actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, full port flow path, and reduced water hammer.

Ball Valve Standard Features
  • Direct mount lead free brass valve
  • Full Port for unrestricted flow
  • 316 stainless steel ball and stem
  • Four ball seat design allows for full pressure at any port
  • Energized PTFE ball seats for extended cycle life and reduced torque
  • Leak free triple PTFE/Viton stem seal design
  • Certified per NSF372 and NSF61 for use with potable/drinking water

  • Electric Actuator Standard Features
  • Multi-voltage capable with auto-voltage sensing
  • Electronic torque limiter
  • Anti-condensation heater
  • LED light gives continuous actuator status indication
  • Manual override with visual valve position indicator
  • Electrical connections via DIN plugs (included)
  • Two dry contact limit switches used to confirm valve position
  • IP67 weatherproof enclosure

  • Options (see Accessories tab)
    TypeElectric Actuated 3 Way Ball Valve- Multivoltage
    Voltage24 to 240 Volts AC/DC (1 ph,50/60Hz) auto-voltage sensing
    Current Rating0.3A @ 110VAC, 0.16A @ 240VAC, 1.28A @ 24VAC
    0.97A @ 24VDC (full load amps)
    Cycle Time9 seconds per 90° rotation (no load)
    Pipe Size1" NPT female
    Port SizeFull Port, orifice 1.0 inches, Cv 16
    Pressure (Max)400 PSI (see P/T chart),
    25 PSI saturated steam with high temp. kit, vacuum service to 29" Hg
    Valve Temperature Range-4 to 344 °F (-20 to 173 °C)
    Actuator Temperature Range-4 to +158 °F (-20 to +70 °C)
    Valve BodyLead Free Brass C69300
    Ball and Stem316 stainless steel
    Ball SeatsPTFE (Teflon) energized with FKM (viton)
    Stem Seals PTFE (Teflon) with dual FKM (Viton) seals
    Duty Cycle75%
    EnclosureAnti-corrosive polyamide, SS fasteners
    Enclosure RatingIP67 weatherproof, UV protection
    Electrical ConnectionsDIN plugs with cable entry (included), optional 1/2" conduit plugs
    Valve Position Confirmation2 x SPST auxiliary limit switches rated 3A@125/250VAC,
    30VDC resistive load
    Manual OverrideHand knob
    Motor ProtectionElectronic over-torque with LED status light
    Anti-Condensation Heater4 watts thermostatically controlled
    Max Fluid Velocity10 feet per second
