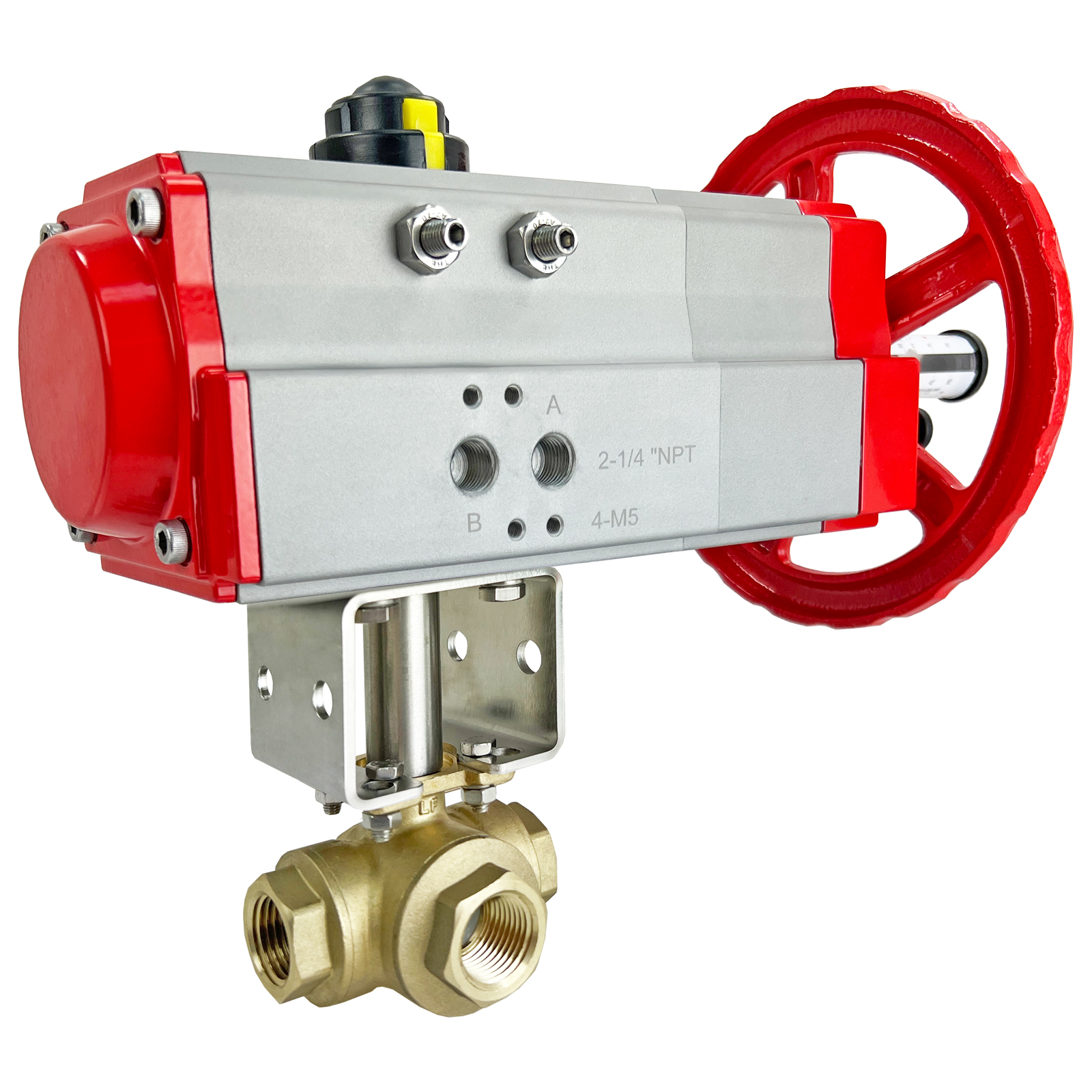

Valworx 545704 pneumatic/manual 3-way lead free brass ball valves are designed for use with air, water, oil, and other media compatible with the materials of construction. The de-clutch option can be used for manual operation or to set a limit stop for opening or closing. These T-port ball valves can be used as a diverter, selector or mixing valve. Ideal where lead free and NSF approved construction are required for potable drinking water as well as other industrial applications. Double acting actuators use an air pressure signal (58- 87 PSI) to change the valve to position 1 or position 2. There is no flow shutoff position with this type valve. Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation. Suitable for steam up to 50 PSI max. with kit and vacuum service to 29 inch Hg.
Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Ball Valve Standard Features
Direct mount lead free brass valveFull Port for unrestricted flow316 stainless steel ball and stemFour ball seat design allows for full pressure at any portEnergized PTFE ball seats for extended cycle life and reduced torqueLeak free triple PTFE/Viton stem seal designCertified per NSF372 and NSF61 for use with potable/drinking water
Pneumatic/Manual Actuator Standard FeaturesIntegrated handwheel for manual operationQuarter turn rack & pinion designHighly visible valve position indicatorDry or lubricated pilot airFactory lubricated for normal lifeAnodized aluminum body with epoxy-polyester coated end coversNamur & ISO mountingATEX approved
Options (see Accessories tab)
| Type | Pneumatic/Manual 3 Way Brass Valve- Double Acting |
|---|
| Pipe Size | 1/2" NPT female |
|---|
| Port Size | Full Port, orifice 0.59 inches, Cv 4.5 |
|---|
| Valve Pressure Rating | 400 PSI (see P/T chart),
25 PSI saturated steam with high temp. kit, vacuum service to 29" Hg |
|---|
| Valve Temperature Rating | -4 to 344°F (-20 to 173°C) |
|---|
| Actuator Temperature Rating | -4 to 167°F (-20 to 75°C) |
|---|
| Valve Body | Lead Free Brass C69300 |
|---|
| Ball and Stem | 316 Stainless steel |
|---|
| Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
|---|
| Ball Seats | (4) PTFE (Teflon) energized with FKM (Viton) |
|---|
| Cycle Time | Approx. 1 second open/close per 90° rotation |
|---|
| Pilot Air Pressure | 29-120 PSI (2- 8 bar) |
|---|
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
|---|
| Actuator Seals | NBR |
|---|
Direct Mount Solenoid Valves
Price: $109.20
Buy 3 or more for $98.28 each
Price: $109.20
Buy 3 or more for $98.28 each
Price: $31.92
Buy 10 or more for $28.73 each
Limit Switch
Price: $156.24
Buy 3 or more for $140.62 each
Digital Smart Positioner
We provide 3D CAD models in Solidworks or STEP file formats for most of our Valworx products.
Please email
sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
