Electric Actuator Standard Features
Brushless motorMulti-voltage capable with auto-voltage sensingElectronic torque limiter - protects against valve jamsAnti-condensation heaterManual override with visual valve position indicatorAll electrical connections via external DIN plugs (included) - no need to remove coverTwo dry contact limit switches used to confirm open/closed valve positionRugged IP67 weatherproof housing, CE marked

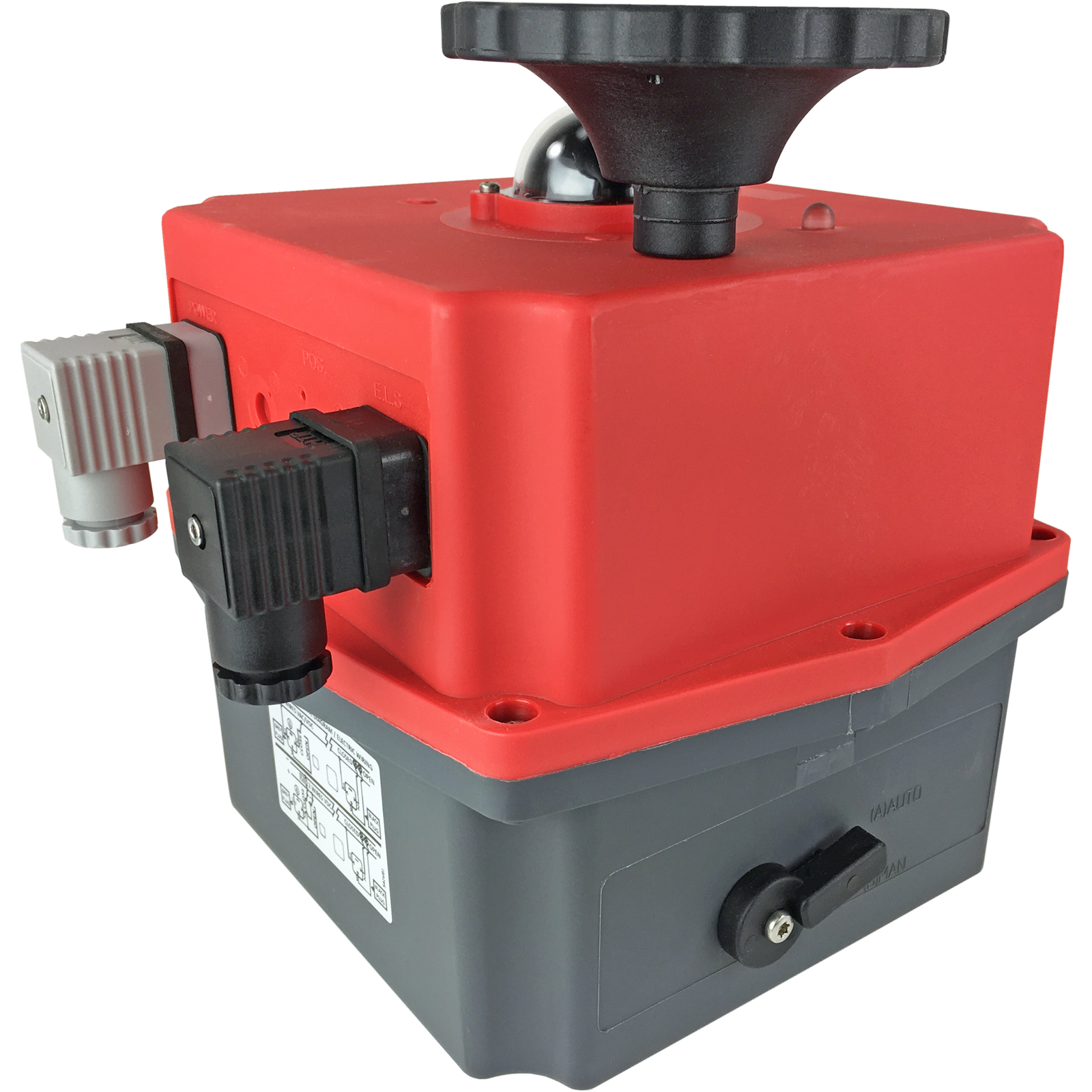

The 5616 series feature packed electric actuators take the valve automation industry to the next level. Standard function for the 5616 is power open, power close, stays put on power failure. With an all new, rugged weatherproof and anti-corrosive Polyamide housing, the 5616 offers more user-friendly features. The 5616 is quick and easy to install, with IS0:5211 multi-flange mounting and a double square drive, allowing fast mounting to ISO:5211 valves.
There is no need to remove the cover to connect the 5616 electrically, saving installation time. Using the external DIN plugs and external wiring diagrams supplied with the actuator, installations can be pre-wired. Protection against valve jams is provided by an electronic torque limiter, which auto-relaxes the gearbox when activated, allowing the manual override to be selected to assist in clearing the jam. The effect of condensation is eliminated by an internal thermostatic anti-condensation heater that does not require a separate independent power supply.
Options for 5616 Actuator (see Accessories tab)
| Type | On-Off with DPS Positioner and BSR Failsafe options available |
|---|
| Voltage | 24 to 240 Volts AC/DC (1 ph,50/60Hz) auto-voltage sensing |
|---|
| Power Consumption | 0.8A @ 110VAC, 0.5A @ 240VAC, 3.3A @ 24VAC
2.7A @ 24VDC (full load amps) |
|---|
| Cycle Time | 58 seconds per 90° rotation |
|---|
| Max Run Torque | 2655 in lbs (300Nm) |
|---|
| Max Break Torque | 3097 in lbs (350Nm) |
|---|
| Duty Cycle | 75% |
|---|
| Enclosure | IP67 weatherproof polyamide housing, UV protected |
|---|
| Motor Type | Brushless |
|---|
| Working Rotation | 90° |
|---|
| Temperature Range | -4 to +158 °F (-20 to +70 °C) |
|---|
| Motor Switches | 2 x SPST |
|---|
| Auxiliary Switches | 2 x SPST limit switches 3A @ 125/250VAC, 30VDC resistive load |
|---|
| Heater | 4 watt (thermostatic anti-condensation) |
|---|
| Weight | 11.5 lbs (5.2Kg) |
|---|
| ISO5211 Mounting | F07 & F10 |
|---|
| Output Drive | 22mm double square |
|---|
| Electrical Connections | DIN plug with cable entry (optional 1/2" conduit plugs or pre-wired cable) |
|---|
