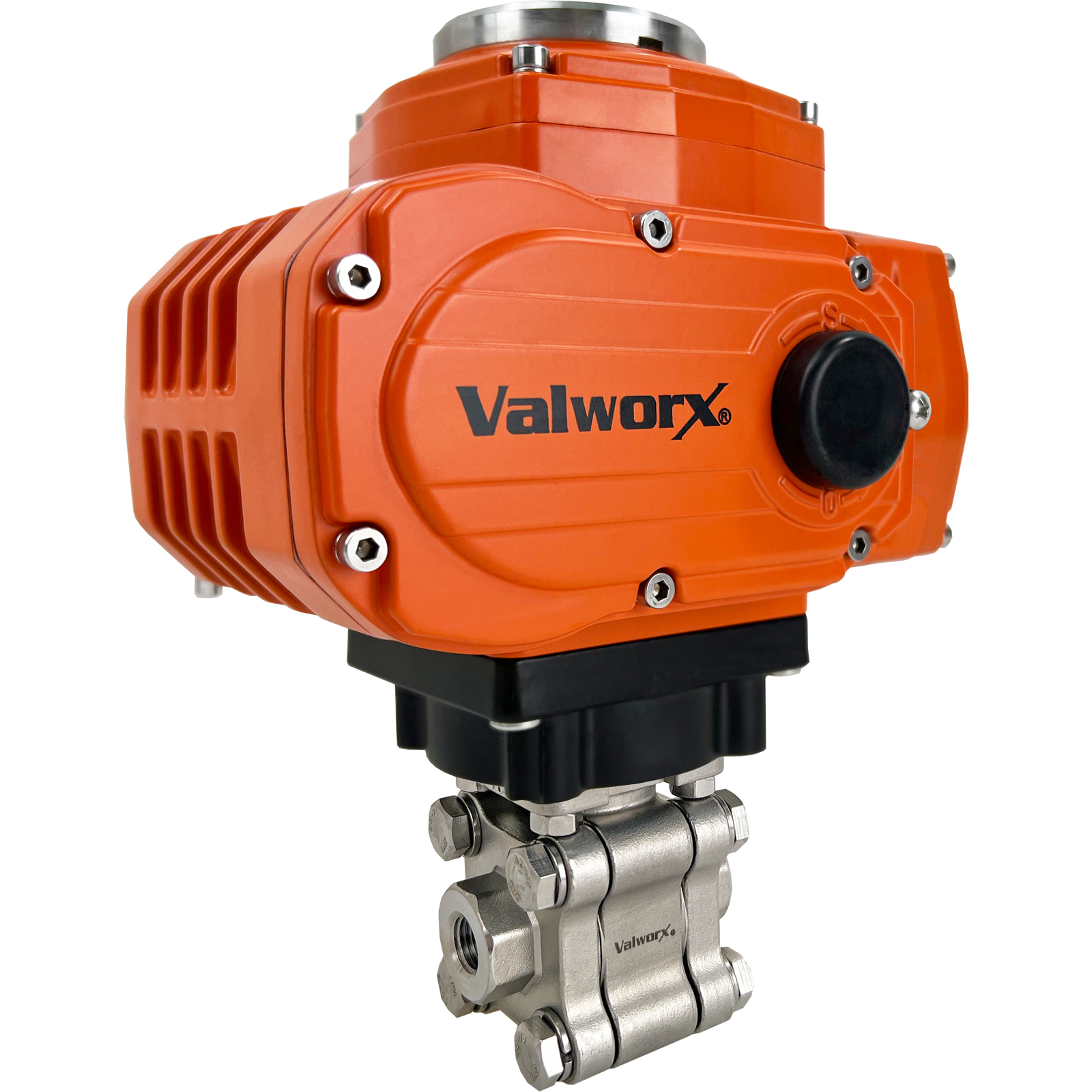

Valworx 588202 explosion proof high pressure stainless steel ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Fire safe approved per API 607. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard Features
2000 PSI working pressure (see P/T chart)Fire safe approved per API 607Braided graphite stem seals3-piece swing out design for easy maintenanceDirect mounting valve per ISO5211Full port for unrestricted flow316 stainless steel body, ball and stemBlow out proof stemRTFE ball seats extend cycle life
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 GbsRugged Type 4X weatherproof aluminum alloy enclosureVisual valve position indicatorManual overrideHeavy duty motor with overload protectionTwo auxiliary limit switches to confirm valve positionsSelf-locking all metal gear drive, no additional brake requiredCSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
| Type | Explosion Proof Electric Actuated High Pressure Ball Valve- On/Off |
|---|
| Voltage | 110 VAC 50/60 Hz |
|---|
| Current Rating | 0.27A |
|---|
| Cycle Time | 20 seconds per 90° rotation (no load) |
|---|
| Pipe Size | 1/4" NPT female |
|---|
| Port Size | Full Port, orifice 0.45 inches, Cv 14.2 |
|---|
| Pressure (Max) | 2000 PSI (see P/T chart) |
|---|
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
|---|
| Actuator Temperature Range | -13 to 131 °F (-25 to +55 °C) |
|---|
| Valve Body | 316 stainless steel |
|---|
| Ball | 316 stainless steel |
|---|
| Stem Seals | Braided Graphite/Viton |
|---|
| Ball Seats | RTFE (reinforced Teflon) |
|---|
| Duty Cycle | 70% |
|---|
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
|---|
| Enclosure Rating | Type 4X (IP67) weatherproof |
|---|
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
|---|
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
|---|
| Manual Override | 5mm hex drive with protective cover |
|---|
| Motor Protection | Thermal overload |
|---|
| Explosion Proof | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
|---|
| Max Fluid Velocity | 10 feet per second |
|---|
