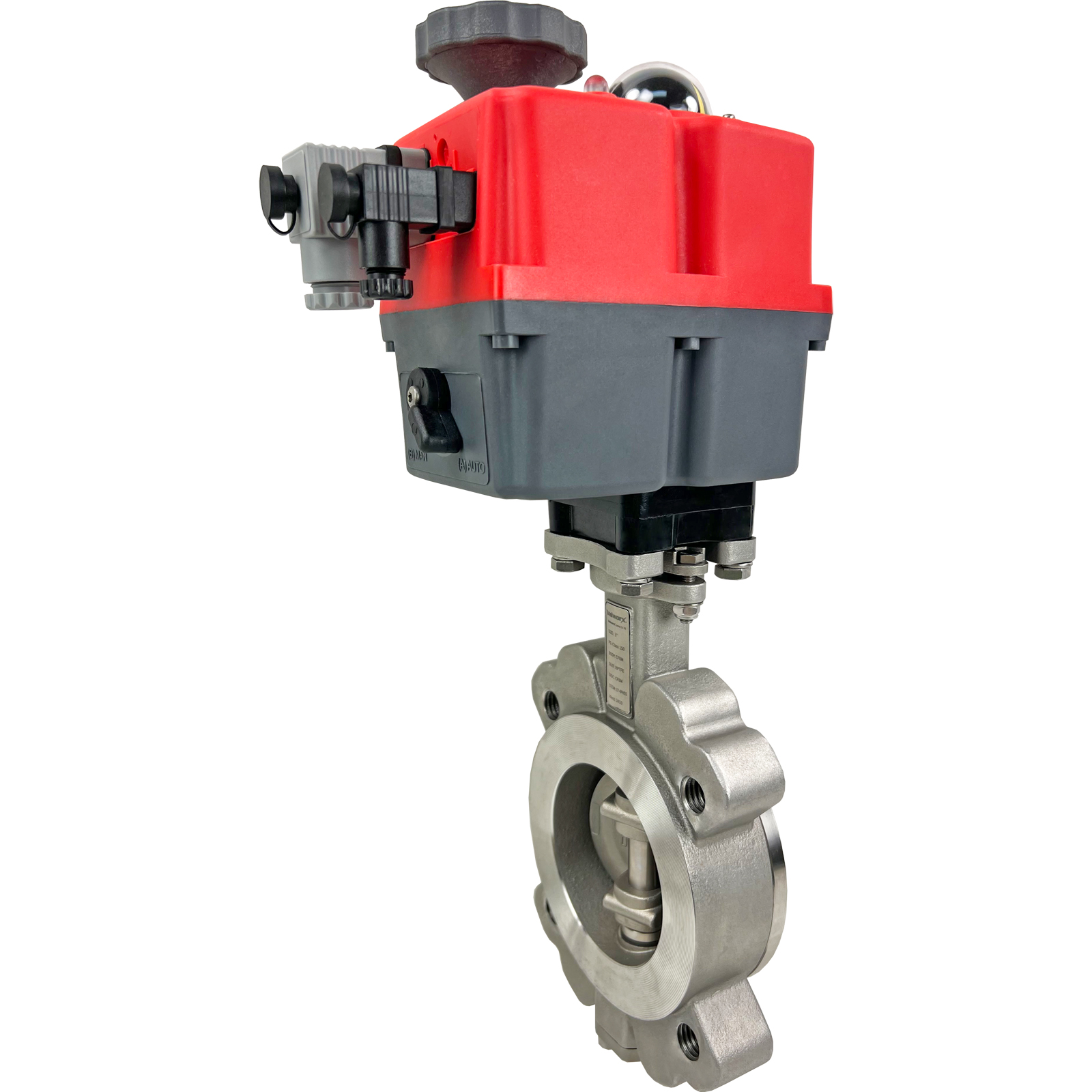

Valworx 547903A high performance stainless steel butterfly valve for on-off control of air, oil and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges and gaskets. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the disc. The motor is automatically stopped by internal cams striking micro switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
High Performance Butterfly Valve Standard Features
High quality, passivated 316 stainless steel (CF8M) body for excellent corrosion resistanceDouble offset design greatly reduces seal wear17-4PH stainless steel, single piece shaftRPTFE valve seats and stem sealsHeavy duty, single piece cast and machined disc with integral mounting sleeveBi-directional seal design ensures increased sealing force in either flow directionIntegral ISO 5211 mounting pad eliminates additional mounting brackets
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indicationMulti-voltage capable with auto-voltage sensingElectronic torque limiter - protects against valve jams without causing damage to the actuatorStandard anti-condensation heaterManual override with visual dome style valve position indicatorAll electrical connections via external DIN plugs (included) - no need to remove cover for wiring or serviceTwo auxiliary dry contact limit switches for confirming open/closed valve positionRugged IP67 dust and watertight enclosure, CE marked
Options (see Accessories tab)
| Type | Electric Actuated High Performance Butterfly Valve- Multivoltage |
|---|
| Voltage | 24 to 240 Volts AC/DC (1 ph,50/60Hz) auto-voltage sensing |
|---|
| Current Rating | 0.33A @ 110VAC, 0.18A @ 240VAC, 1.50A @ 24VAC
1.22A @ 24VDC (full load amps) |
|---|
| Cycle Time | 29 seconds per 90° rotation (no load) |
|---|
| Pipe Size | 3 inch (DN80) |
|---|
| Disc Size | 2.8 inches |
|---|
| Suitable Flanges | ANSI /ASME B16.5 Class150, MSSSP44 Class 150, API605 Class 150, JIS B2212 10K, JIS B2212 16K |
|---|
| Flow Factor | Cv 180 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
|---|
| Pressure Rating | 285 PSI (19.7 Bar), Full Vacuum |
|---|
| Valve Temperature Range | -40 to 450 °F (-40 to 230 °C) |
|---|
| Actuator Temperature Range | -4 to +158 °F (-20 to +70 °C) |
|---|
| Valve Body | 316 Stainless steel |
|---|
| Disc | Single piece, machined 316 stainless steel |
|---|
| Disc Seat/Liner | RPTFE |
|---|
| Stem Packing | RPTFE |
|---|
| Duty Cycle | 75% |
|---|
| Enclosure | Anti-corrosive polyamide, SS fasteners |
|---|
| Enclosure Protection | IP67 dust and watertight, UV protection |
|---|
| Electrical Connections | DIN plug with round cable entry (optional 1/2" conduit plugs, prewired plugs with cables) |
|---|
| Valve Position Confirmation | 2 x SPST dry contact limit switches rated 250v/3A resistive load |
|---|
| Over-load Protection | Electronic over-torque with LED status light |
|---|
| Anti-condensation Heater | 4 watts |
|---|
