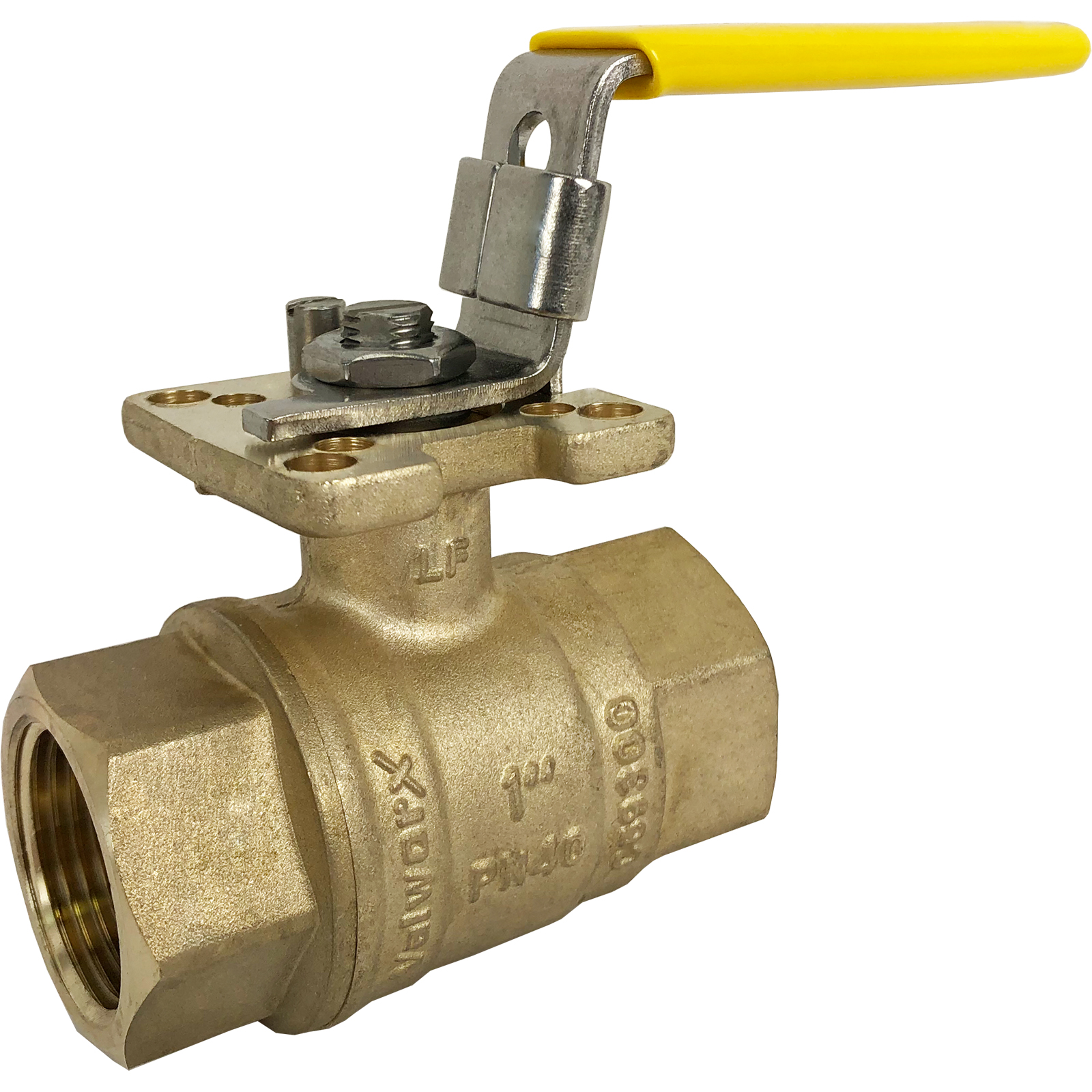

Lead Free Brass Ball Valve 1" NPT

Lead Free Brass Ball Valve 1 NPT
Stock #:
525408
Brand:
Valworx
Series:
5254
Mfr Part #:
525408
Availability: In Stock

List Price: $66.00
Price: $52.80
Buy 10 for $47.52 each

Usually Ships: Same Day
Free Shipping on orders over $99
Quantity
  • Description
  • Specifications
  • Data Sheets
  • CAD
  • Video
Valworx 525408 full port lead free brass ball valves are designed for use with air, oil, water and other media compatible with the materials of construction. Ideal where lead free and NSF approved construction are required for potable drinking water or other general industrial applications. Valves can be manually operated with stainless steel lever or direct mounted to air or electric actuators using the standard ISO5211 mounting pad. Turning the valve one quarter turn rotates the ball from closed to the full open position. Latch locking device allows for pad locking the valve in either the open or closed position.

High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design. When automating the valve, lower operating torque equates to the use of a smaller size actuator, which in turn leads to a smaller profile and a less expensive package.

  • Environmentally friendly lead free brass construction
  • Full Port for unrestricted flow
  • 316 stainless steel ball and stem
  • Blow out proof stem
  • Energized PTFE ball seats for extended cycle life and reduced torque
  • Triple PTFE/Viton leak free stem seal design
  • Latch locking handle (padlockable)
  • Actuator ready ISO5211 direct mounting pad
  • Certified per NSF372 and NSF61 for use with potable/drinking water
  • Pipe Size1" NPT female
    Port SizeFull Port, orifice 1.0 inches, Cv 60
    Pressure Rating600 PSI CWP non-shock (see P/T chart)
    Vacuum service to 29"Hg, Steam Service 150PSI
    HandleStainless steel with vinyl grip
    Valve BodyLead Free Brass C69300
    Ball and Stem316 Stainless steel
    Stem SealsPTFE (Teflon) with dual FKM (viton) seals
    Ball SeatsPTFE (Teflon) energized with FKM (viton)
    Temperature Rating0 to 366ºF (-20 to 186ºC)
    Break Torque75 inch lbs (0 PSI, 68ºF), 8.5 Nm (0 bar, 20ºC)
    ISO5211 MountF03/F05, 9mm square stem
    ApprovalsIAPMO certified to NSF/ANSI 372, NSF/ANSI 61 drinking water,
    MSS-SP-110
    Weight1.7 pounds (0.77 kg)
    We provide 3D CAD models in Solidworks or STEP file formats for most of our Valworx products.

    Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
