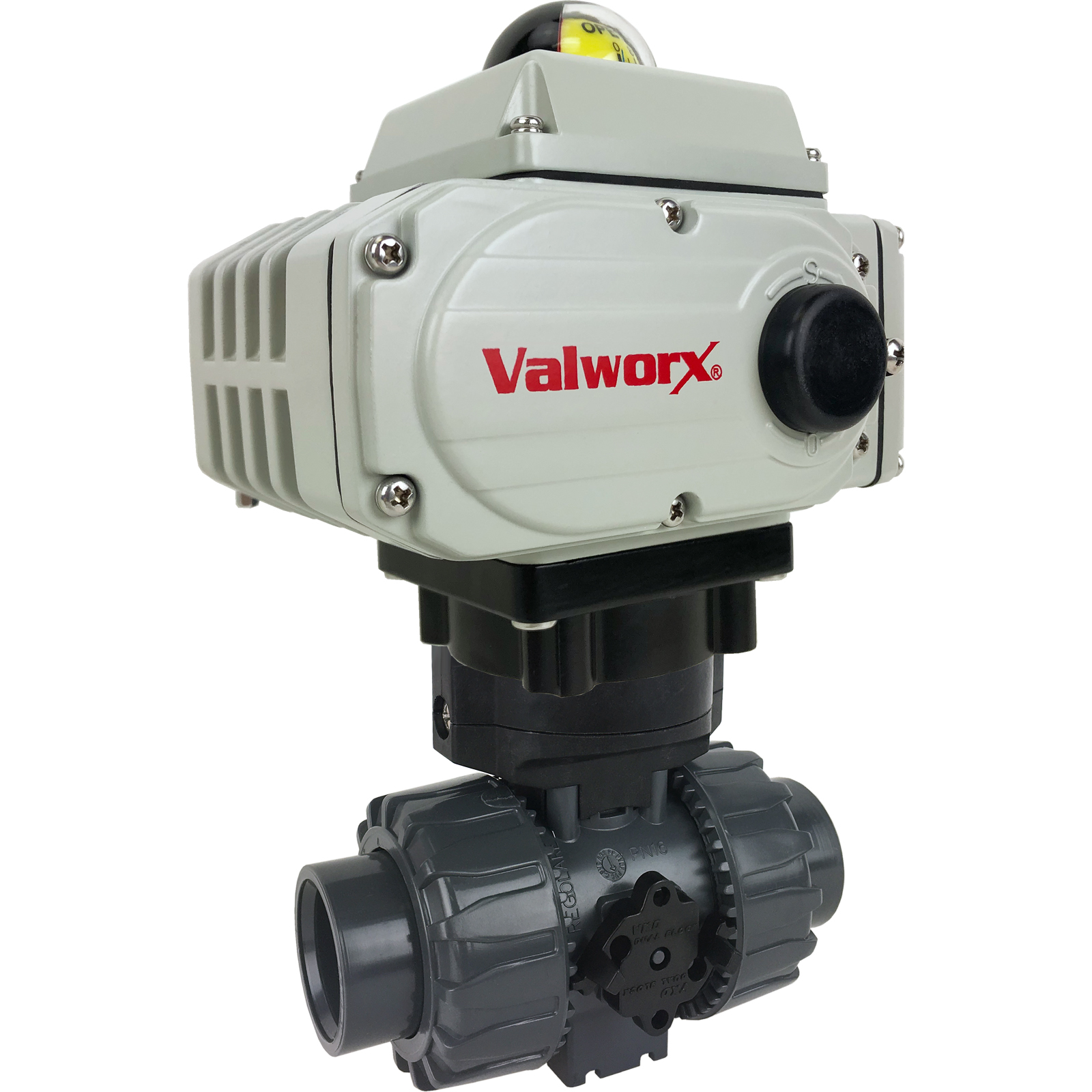

Valworx 565469C electric actuated PVC ball valves are typically used to control the flow of water and liquid media compatible with the materials of construction (not suitable for air or gas). Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications.
The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard Features
Industrial grade full port PVC ball valveTru Union with bi-directional flowUnion nut locking device prevents back-offEnergized PTFE ball seats for lower torque and extended lifeLeak free dual stem seal designMicro-adjustable ball seat carrierPressure rated 232 PSI at 73°FSeries 5510 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking waterIncludes IPS glue sockets and NPT end connectors
Electric Actuator Standard FeaturesEPS-Electronic Positioner System with 4-20mA inputQuarter turn operation with mechanical limitsRugged Type 4X weatherproof aluminum alloy housingVisual valve position indicatorManual overrideHeavy duty motor with overload protectionThermostatically controlled anti-condensation heaterAnalog output signal to confirm valve positionSelf-locking all metal gear drive, no additional brake requiredCSA Listed per UL429 and CSA C22.2, CE marked
| Type | Electric Actuated PVC Ball Valve- Positioner |
|---|
| Voltage | 24 VDC |
|---|
| Current Rating | 1.0A (full load amps) |
|---|
| Input Control Signal | 4-20mA |
|---|
| Cycle Time | 20 seconds per 90° rotation (+/- 10% no load) |
|---|
| Pipe Size | 1 inch (both IPS glue socket and NPT end connectors included) |
|---|
| Port Size | Full Port, Cv 54 |
|---|
| Pressure Rating | 232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg
Not suitable for air or gas |
|---|
| Valve Temperature Range | 32-140 °F (0 to 60 °C) |
|---|
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|
| Valve Body | PVC |
|---|
| Ball and Stem | PVC |
|---|
| Ball Seats | PTFE (Teflon) energized with EPDM seals |
|---|
| Stem Seals | Dual EPDM seals |
|---|
| Duty Cycle | 70% |
|---|
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
|---|
| Enclosure Rating | Type 4X (IP67) weatherproof |
|---|
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connectors (included) |
|---|
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
|---|
| Manual Override | 5mm hex drive with protective cover |
|---|
| Motor Protection | Current sensor |
|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
|---|
