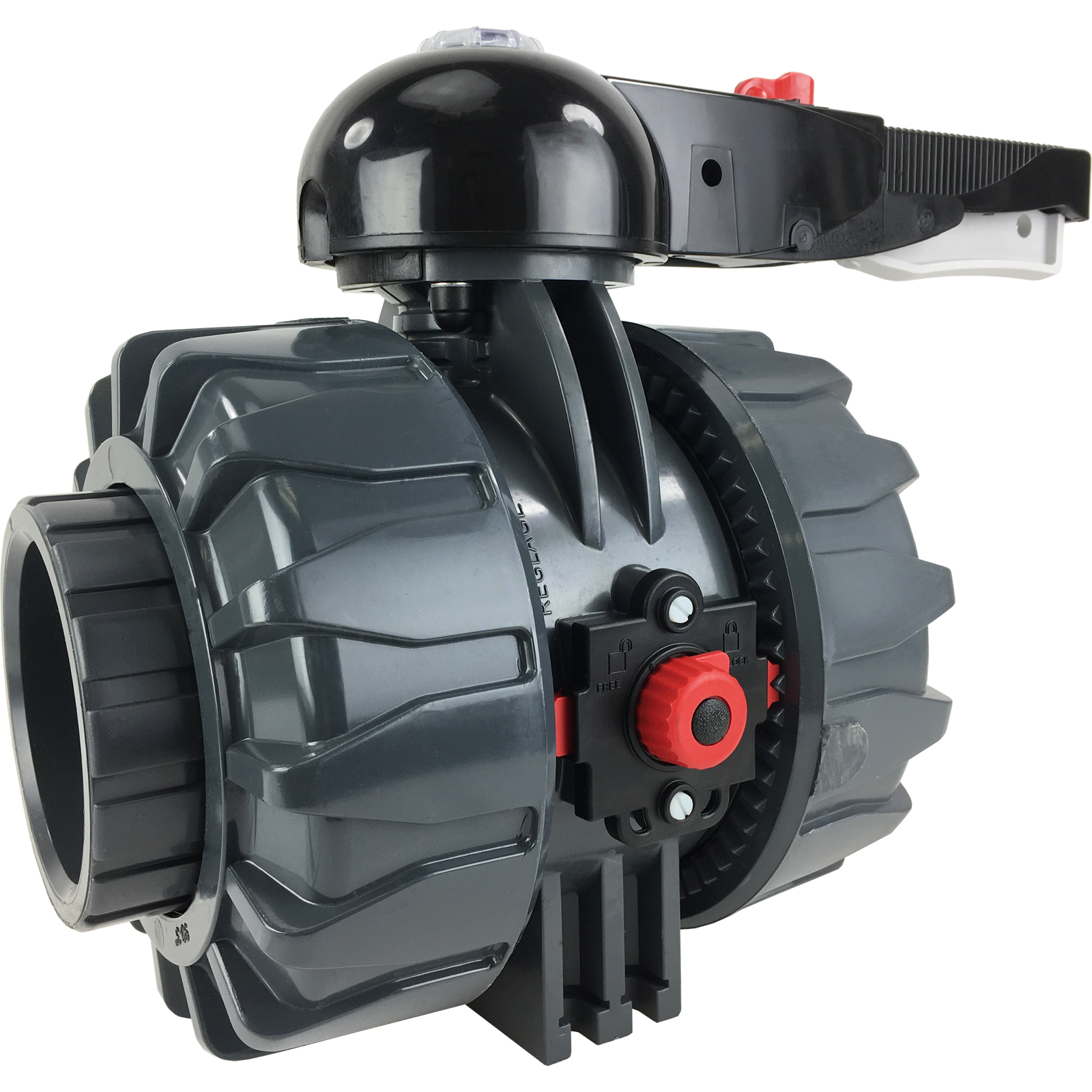

Valworx 551048 True Union PVC ball valves are typically used for on-off control of water and other media compatible with the materials of construction. Ideal for industrial applications and where NSF certified construction is required for potable/drinking water. Turning the valve one quarter turn rotates the ball from closed to the full open position. Energized PTFE (Teflon) ball seats are used to lower operating torque and extend the cycle life. Dual stem seals and adjustable ball seat carrier contribute to a leak free design. Machined ball and stem connection after molding provides a precision fit. Union nut locking device prevents back-off due to vibration or thermal cycling. These PVC valves are NSF certified safe for use with potable/drinking water. Valves are actuator ready with optional ISO5211 mounting kit.
Pressure rated 232 PSI (16 Bar)
Full Port for unrestricted flow
True Union with Bi-directional flow
Energized PTFE ball seats for lower torque and extended life
Leak free dual stem seal design
Union nut locking device prevents back-off
Micro-adjustable ball seat carrier
NSF certified for use with potable/drinking water
3 inch Socket end connectors
Full Port, Cv 497
232 PSI at 73 °F liquid only, no air or gas (see P/T chart)
We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email firstname.lastname@example.org to request the specific files you need. Include the stock number and any accessories with your request.
