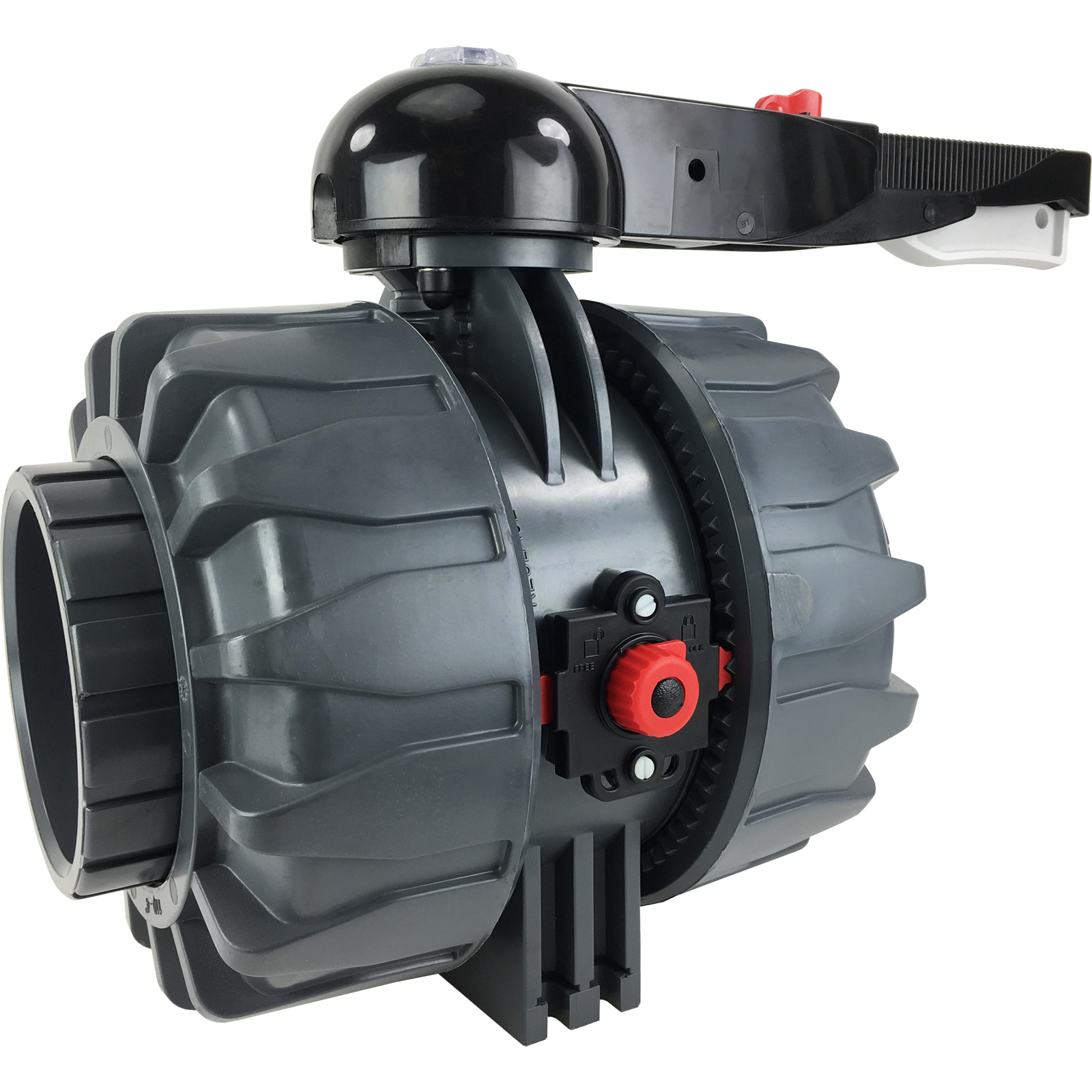

4" PVC Ball Valve - EPDM/Teflon Seals

Stock #: 551064
Brand: Valworx
Series: 5510
List Price: $807.00
Price: $645.60
Buy 3 or more for $581.04 each
Usually Ships: 4- 6 Weeks
Free Shipping on orders over $99
Valworx 551064 True Union PVC ball valves are typically used for on-off control of water and other media compatible with the materials of construction. Ideal for industrial applications and where NSF certified construction is required for potable/drinking water. Turning the valve one quarter turn rotates the ball from closed to the full open position. Energized PTFE (Teflon) ball seats are used to lower operating torque and extend the cycle life. Dual stem seals and adjustable ball seat carrier contribute to a leak free design. Machined ball and stem connection after molding provides a precision fit. Union nut locking device prevents back-off due to vibration or thermal cycling. These PVC valves are NSF certified safe for use with potable/drinking water. Valves are actuator ready with optional ISO5211 mounting kit.

  • Pressure rated 232 PSI (16 Bar)
  • Full Port for unrestricted flow
  • True Union with Bi-directional flow
  • Energized PTFE ball seats for lower torque and extended life
  • Leak free dual stem seal design
  • Union nut locking device prevents back-off
  • Micro-adjustable ball seat carrier
  • NSF certified for use with potable/drinking water
  • Pipe Size 4 inch Socket end connectors
    Port Size Full Port, Cv 665
    Pressure (Max) 232 PSI at 73 °F liquid only, no air or gas (see P/T chart)
    Temperature Range 32 to 140 °F (0 to 60 °C)
    Valve Body PVC (gray)
    Ball PVC
    Stem Seals EPDM (2)
    Ball Seats PTFE (Teflon) energized with EPDM
    • PVC Valve/ Actuator Mounting Kits
      PVC Valve/ Actuator Mounting Kit, F07
      Price: $69.60
      Buy 10 or more for $62.64 each
