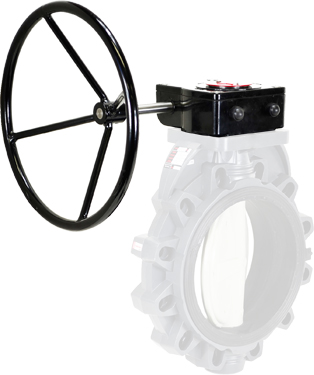

Valworx 540214 PVC butterfly valves are used for on-off control of water and other compatible media. Ideal for industrial apps and where NSF certified construction is required for potable/drinking water. Typical applications might include potable water, general services, industrial, process, corrosive environments, commercial plumbing, food processing and irrigation. For manual operation, combine with a gear operator (see accessories tab).
PVC butterfly valves should never be used for compressed gas applications.
Industrial grade PVC butterfly valve Pressure rated 120 PSI at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
PVC butterfly valves should never be used for compressed gas applications.
| Type | PVC Butterfly Valve |
|---|---|
| Disc Size | 12, Cv 5712 |
| Pressure (Max) | 120 PSI at 73 °F liquid only, no air or gas (see P/T chart) |
| Temperature Range | 32 to 140 °F (0 to 60 °C) |
| Valve Body | PVC |
| Disc | Polyproplene (PP) |
| Stem | 316 Stainless Steel |
| Stem Size | 27mm |
| ISO 5211 Mount | F10-F12-F14 |
| Primary Liner | EPDM |
-
Price: $374.40
Buy 3 or more for $336.96 each
5402 Series Product Data Sheet NSF Certification to NSF/ANSI 61 Potable Drinking Water and NSF/ANSI 372 Lead FreeWe provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email sales@valworx.com to request the specific files you need. Include the stock number and any accessories with your request.
