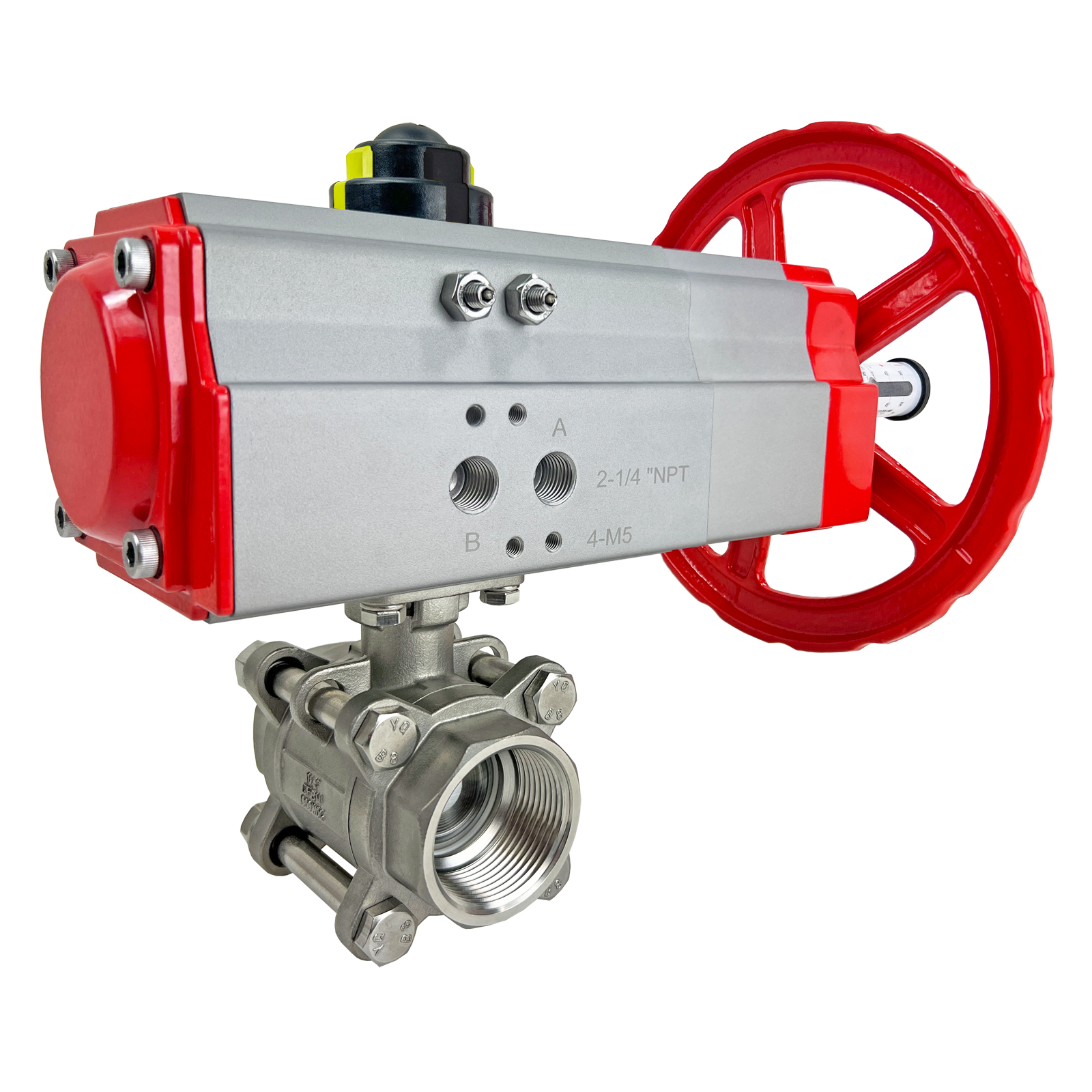

Valworx 531510 Pneumatic/Manual stainless ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Double acting actuator design uses an air pressure signal (80-120 PSI) to open and close the valve. The de-clutch option can be used for manual operation or to set a limit stop for opening or closing. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of pneumatic/manual ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.
Clocked mounting orientation is standard (actuator perpendicular to pipeline). In-line mounting option (actuator parallel to pipeline) available. Select as an option on the Accessories tab.
Ball Valve Standard Features
1000 PSI working pressure (see P/T chart)Direct mounting valve per ISO5211Full port for unrestricted flow316 stainless steel body, ball and stemBlow out proof stemRTFE ball seats extend cycle lifeTriple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic/Manual Actuator Standard FeaturesIntegrated handwheel for manual operationQuarter turn rack & pinion designHighly visible valve position indicatorDry or lubricated pilot airFactory lubricated for normal lifeAnodized aluminum body with epoxy-polyester coated end coversNamur & ISO mountingATEX approved
Options (see Accessories tab)
| Type | Pneumatic/Manual 3 Piece Ball Valve- Double Acting |
|---|
| Pipe Size | 1-1/4" NPT female |
|---|
| Port Size | Full Port, Orifice 1.25 inches, Cv 89.7 |
|---|
| Pressure (Max) | 1000 PSI see P/T chart,
25 PSI saturated steam with high temp kit, vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
|---|
| Valve Body | 316 stainless steel CF8M |
|---|
| Ball/Stem | 316 stainless steel |
|---|
| Stem Seals | PTFE/ Viton |
|---|
| Ball Seats | RTFE (Teflon) |
|---|
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
|---|
| Actuator Temperature Range | -4 to 176 °F (-20 to 80 °C) |
|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
|---|
| Air Pilot Pressure | 80-120 PSI |
|---|
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
|---|
| Actuator Seals | NBR |
|---|
| Max Fluid Velocity | 10 feet per second |
|---|
| Enclosure Protection | IP67 Weatherproof |
|---|
