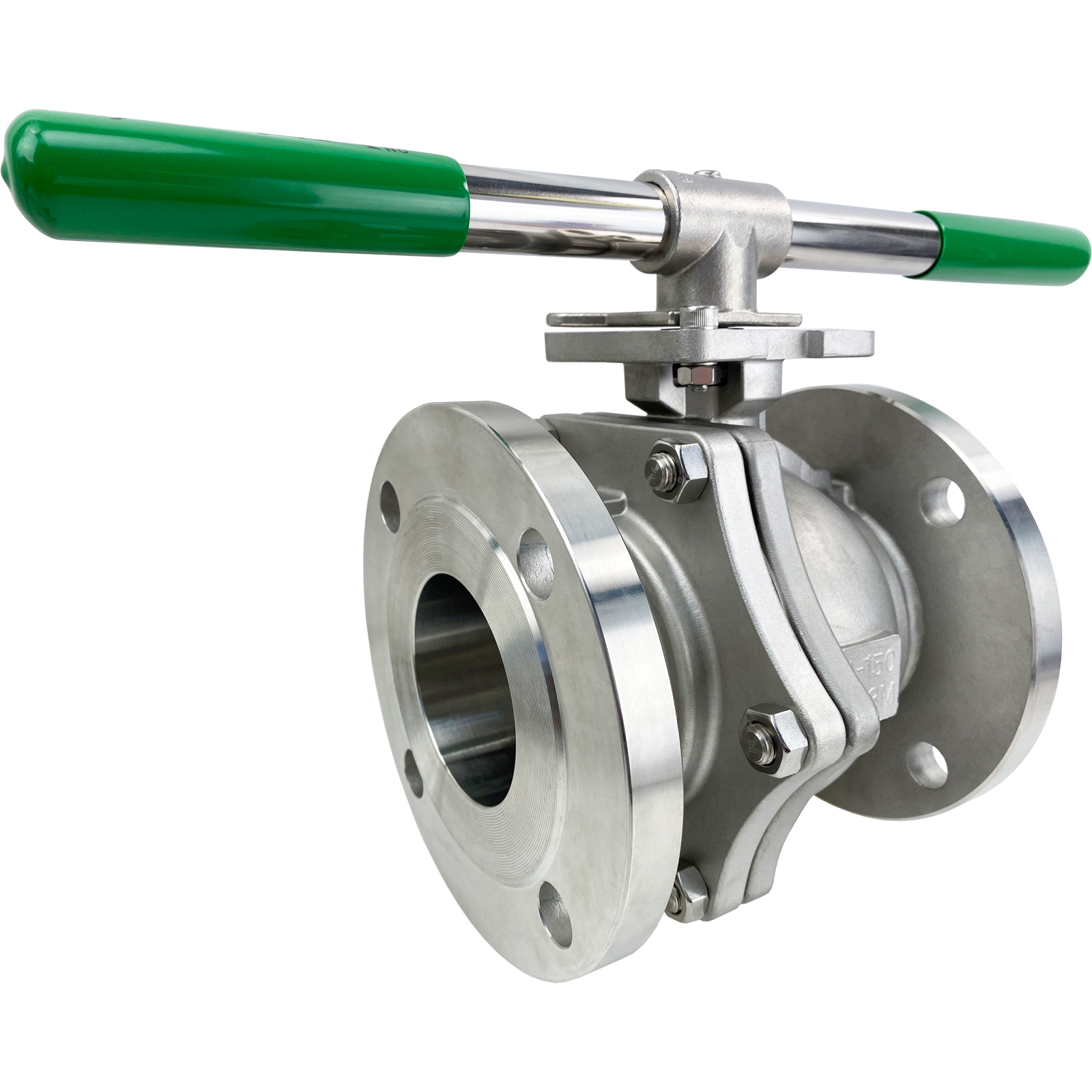

3" Stainless ANSI 150# Flanged Ball Valve - ISO Direct Mount

Stock #: 553024A
Brand: Valworx
Series: 5530
List Price: $1755
Price: $1,404.00
Buy 3 or more for $1,263.60 each
Usually Ships: 5- 7 Days
Free Shipping on orders over $99
Valworx 553024A low emission stainless steel 2-piece full port ANSI 150# flanged ball valves are designed for oil and gas as well as general chemical and industrial applications. Dual-certified low-emission (API 641) and fire-safe (API 607). These investment cast valves offer low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

Not suitable for potable water or high purity applications.

  • Full Port for Unrestricted Flow
  • 316 Stainless Steel Body, Ball and Stem
  • Blow Out Proof Stem
  • RTFE Ball Seats Extend Cycle Life and Reduce Torque
  • Braided Graphite Stem Seals, Live Loaded
  • Latch Locking Handle (Padlockable)
  • Actuator Ready ISO5211 Direct Mounting Pad
  • Anti-Static Design
  • Fire Safe Design (API 607)
  • Pipeline Design (API 608)
  • Low Emission Stem Packing (API 622)
  • Low Emission Design (API 641)
  • TypeManual Flange Valve
    Pipe Size3" ANSI Class 150# flanged
    Port SizeFull port, 3.20 inch orifice,Cv 580
    Pressure (Max)275 PSI CWP (see P/T chart ),
    75 PSI saturated steam, Vacuum 29inHg
    Valve Temperature Range-4 to +392 °F (-20 to +200 °C)
    Body/Ball316 stainless steel (ASTM A351 CF8M)
    Stem316 stainless steel
    Handle304 stainless steel with vinyl grip
    Ball SeatsRTFE (reinforced Teflon)
    Stem Seals Braided Graphite/ FKM (Viton)
    Flange DimensionANSI B16.5 class 150
    Face to FaceANSI B16.10 class 150
    ISO5211 MountF07/F10, 17mm square stem
    Max Fluid Velocity10 feet per second
