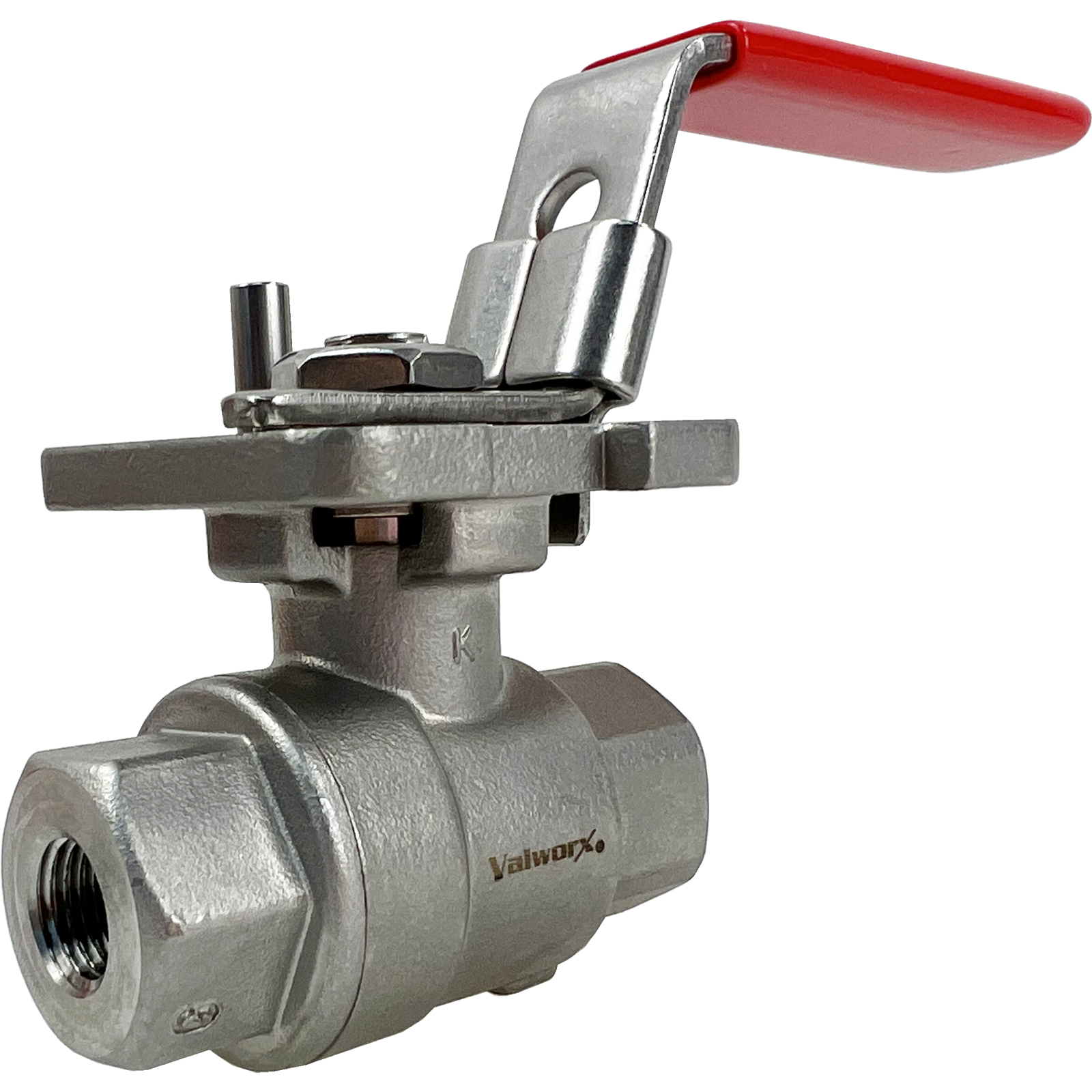

|Pipe Size||1/4" NPT female|
|Port Size||Full port, 0.45 inch orifice, Cv 8|
|Pressure (Max)||1000 PSI CWP (see P/T chart ), Vacuum 29inHg, Steam 125 PSI|
|Temperature Range||-4 to 356 °F (-20 to 180 °C)|
|Body/Ball||316 stainless steel (ASTM A351 CF8M)|
|Stem||316 stainless steel|
|Handle||304 stainless steel with vinyl grip|
|Ball Seats||RTFE (reinforced Teflon)|
|Stem Seals||RTFE/ Viton (live loaded and adjustable)|
|ISO5211 Mount||F03/F05, 9mm square stem|
|Max Fluid Velocity||10 feet per second|
Limit SwitchManual Limit Switch F03/F05 9mm Stem Stock #: 529912Price: $136.00
Buy 6 or more for $122.40 each
We provide CAD models in virtually every format. Can't find exactly what you're looking for? Please email firstname.lastname@example.org to request the specific files you need. Include the stock number and any accessories with your request.
Displaying the model may take a few seconds.
